Rear Bumper Assembly of Aston Martin Aston Martin Cygnet

View All

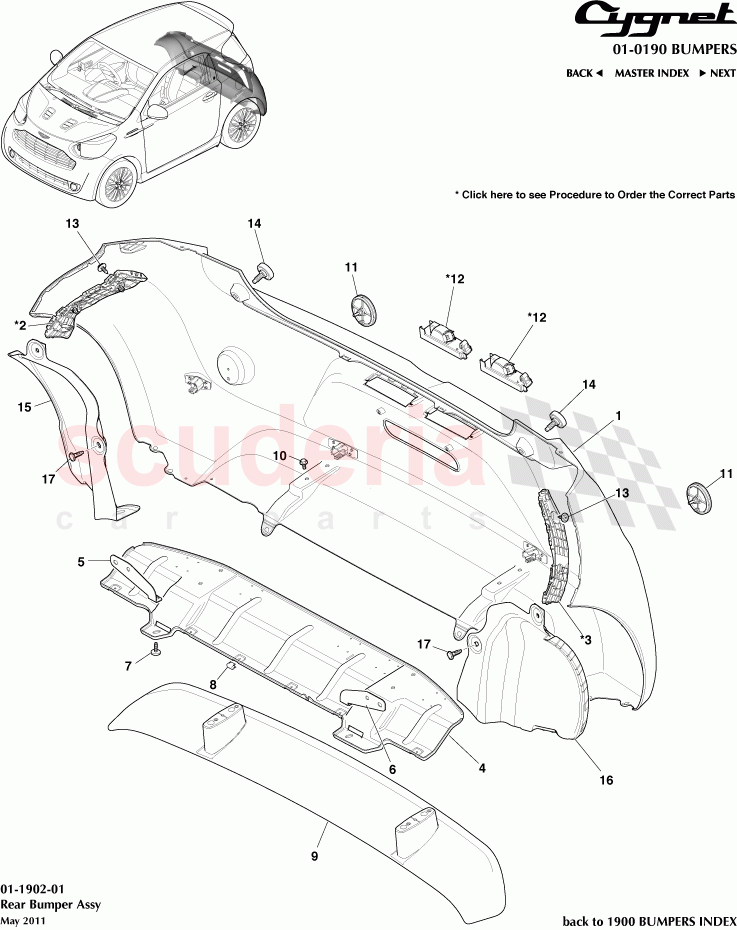

Aston Martin Cygnet - Rear Bumper Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2Y17K835BC	Bumper Assy, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5257574011	Retainer, Bumper Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5257674010	Retainer, Bumper Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y17G782AA	Reinforcement Plate, Bumper Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y17C814AA	Bracket, Bumper Attachment, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y17C815AA	Bracket, Bumper Attachment, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704383	Clip, Edge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y33612AC	Diffuser, Bumper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8191012100	Reflector Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8127052020	Lamp Assy, License Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9015950311	Screw, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5246152020	Screw, Rear Bumper Cushion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5259274010	Seal, Rear bumper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5259174010	Seal, Rear bumper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5216102030	Piece, Rear Bumper	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5257574011	Retainer, Bumper Side, RH	5257574011 Retainer, Bumper Side, RH *From 10/2010	-	1	Enquire
-	5257674011	Retainer, Bumper Side, LH	5257674011 Retainer, Bumper Side, LH *From 10/2010	-	1	Enquire
-	5830374010	Reinforcement, Rear bumper	5830374010 Reinforcement, Rear bumper not illustrated	-	1	Enquire
-	5204374010	Reinforcement, Rear bumper No 2	5204374010 Reinforcement, Rear bumper No 2 not illustrated	-	1	Enquire
1	AY2Y17K835BC	Bumper Assy, Rear	AY2Y17K835BC Bumper Assy, Rear	-	1	Enquire
2	5257574011	Retainer, Bumper Side, RH	5257574011 Retainer, Bumper Side, RH *To 09/2010	-	1	Enquire
3	5257674010	Retainer, Bumper Side, LH	5257674010 Retainer, Bumper Side, LH *To 09/2010	-	1	Enquire
4	AY2Y17G782AA	Reinforcement Plate, Bumper Cover	AY2Y17G782AA Reinforcement Plate, Bumper Cover	-	1	Enquire
5	AY2Y17C814AA	Bracket, Bumper Attachment, RH	AY2Y17C814AA Bracket, Bumper Attachment, RH	-	1	Enquire
6	AY2Y17C815AA	Bracket, Bumper Attachment, LH	AY2Y17C815AA Bracket, Bumper Attachment, LH	-	1	Enquire
7	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	2	Enquire
8	704383	Clip, Edge	704383 Clip, Edge	-	6	Enquire
9	AY2Y33612AC	Diffuser, Bumper	AY2Y33612AC Diffuser, Bumper	-	1	Enquire
10	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	4	Enquire
11	8191012100	Reflector Assy	8191012100 Reflector Assy	-	2	Enquire
12	8127052020	Lamp Assy, License Plate	8127052020 Lamp Assy, License Plate *To 08/2010	-	2	Enquire
13	9015950311	Screw, W/Washer	9015950311 Screw, W/Washer One Per Side	-	2	Enquire
14	5246152020	Screw, Rear Bumper Cushion	5246152020 Screw, Rear Bumper Cushion One Per Side	-	2	Enquire
15	5259274010	Seal, Rear bumper, RH	5259274010 Seal, Rear bumper, RH	-	1	Enquire
16	5259174010	Seal, Rear bumper, LH	5259174010 Seal, Rear bumper, LH	-	1	Enquire
17	5216102030	Piece, Rear Bumper	5216102030 Piece, Rear Bumper	-	10	Enquire
