Front Fender Apron and Dash Panel of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Front Fender Apron and Dash Panel

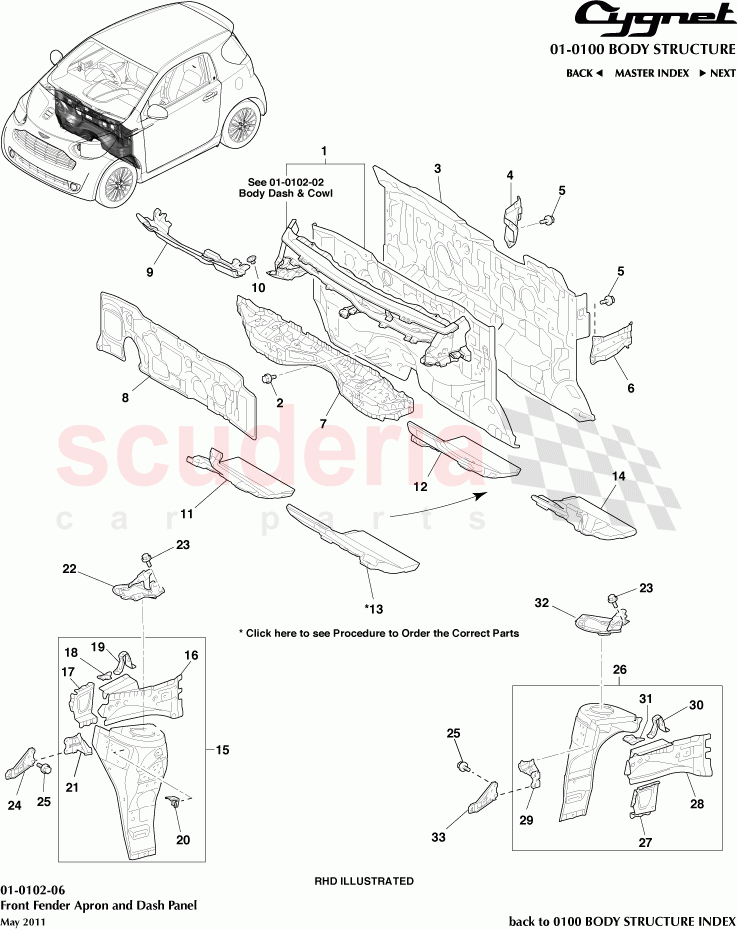

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5510174030	Panel Sub-Assy, Dash, RHD, MAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91671A0816	Bolt, Flange, CVFC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5521074020B0	Insulator Assy, Dash Panel, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5513774011	Brace, Dash to Frame RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9151580818	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5513874010	Brace, Dash to Frame LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5710374011	Cross Member, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5522374010	Insulator, Dash Panel, Outer, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5578774020	Insulator, Cowl Top Panel, No.1, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046706188	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5521574020	Pad, Dash Panel Insulator, No.3, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5521474012	Pad, Dash Panel Insulator, No.2, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5521474031	Pad, Dash Panel Insulator, No.2, RHD, MAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5521574010	Pad, Dash Panel Insulator, No.3, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5370174010	Apron Sub-Assy, Front Fender RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5715574010	Reinforcement, Front Side Member, No.3 RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5373774010	Plate, Front Apron to Cowl Side Member RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5381574010	Reinforcement, Front Fender Apron, Front RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5371774010	Plate, Fender Apron	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5374374010	Gusset, Fender Apron RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5516874010	Bracket, Front Fender Mounting RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5370774010	Extension, Front Fender RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9167180816	Bolt, Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5371374010	Extension, Front Fender Apron, Front RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9090105005	Bolt, Washer Based	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5370274010	Apron Sub-Assy, Front Fender LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5373874010	Plate, Front Apron to Cowl Side Member LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5715674010	Reinforcement, Front Side Member, No.3 LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5516974010	Bracket, Front Fender Mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5371874010	Plate, Fender Apron LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5381674010	Reinforcement, Front Fender Apron, Front LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5370874010	Extension, Front Fender LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5371474010	Extension, Front Fender Apron, Front LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5510174040	Panel Sub-Assy, Dash, RHD, AUTO	5510174040 Panel Sub-Assy, Dash, RHD, AUTO	-	1	Enquire
-	5510174011	Panel Sub-Assy, Dash, LHD, MAN	5510174011 Panel Sub-Assy, Dash, LHD, MAN	-	1	Enquire
-	5510174020	Panel Sub-Assy, Dash, LHD, AUTO	5510174020 Panel Sub-Assy, Dash, LHD, AUTO	-	1	Enquire
-	5521074012B0	Insulator Assy, Dash Panel, LHD	5521074012B0 Insulator Assy, Dash Panel, LHD	-	1	Enquire
-	5522374020	Insulator, Dash Panel, Outer, LHD	5522374020 Insulator, Dash Panel, Outer, LHD	-	1	Enquire
-	5578774010	Insulator, Cowl Top Panel, No.1, LHD	5578774010 Insulator, Cowl Top Panel, No.1, LHD	-	1	Enquire
-	5521474032	Pad, Dash Panel Insulator, No.2, RHD, MAN	5521474032 Pad, Dash Panel Insulator, No.2, RHD, MAN *From 03/2011	-	1	Enquire
-	5521474021	Pad, Dash Panel Insulator, No.2, RHD, AUTO	5521474021 Pad, Dash Panel Insulator, No.2, RHD, AUTO *To 03/2011	-	1	Enquire
-	5521474022	Pad, Dash Panel Insulator, No.2, RHD, AUTO	5521474022 Pad, Dash Panel Insulator, No.2, RHD, AUTO *From 03/2011	-	1	Enquire
1	5510174030	Panel Sub-Assy, Dash, RHD, MAN	5510174030 Panel Sub-Assy, Dash, RHD, MAN	-	1	Enquire
2	91671A0816	Bolt, Flange, CVFC	91671A0816 Bolt, Flange, CVFC	-	-	Enquire
3	5521074020B0	Insulator Assy, Dash Panel, RHD	5521074020B0 Insulator Assy, Dash Panel, RHD	-	1	Enquire
4	5513774011	Brace, Dash to Frame RH	5513774011 Brace, Dash to Frame RH	-	1	Enquire
5	9151580818	Bolt, Flange	9151580818 Bolt, Flange	-	10	Enquire
6	5513874010	Brace, Dash to Frame LH	5513874010 Brace, Dash to Frame LH	-	1	Enquire
7	5710374011	Cross Member, Front	5710374011 Cross Member, Front	-	1	Enquire
8	5522374010	Insulator, Dash Panel, Outer, RHD	5522374010 Insulator, Dash Panel, Outer, RHD	-	1	Enquire
9	5578774020	Insulator, Cowl Top Panel, No.1, RHD	5578774020 Insulator, Cowl Top Panel, No.1, RHD	-	1	Enquire
10	9046706188	Clip	9046706188 Clip	-	-	Enquire
11	5521574020	Pad, Dash Panel Insulator, No.3, RHD	5521574020 Pad, Dash Panel Insulator, No.3, RHD	-	1	Enquire
12	5521474012	Pad, Dash Panel Insulator, No.2, LHD	5521474012 Pad, Dash Panel Insulator, No.2, LHD	-	1	Enquire
13	5521474031	Pad, Dash Panel Insulator, No.2, RHD, MAN	5521474031 Pad, Dash Panel Insulator, No.2, RHD, MAN *To 03/2011	-	1	Enquire
14	5521574010	Pad, Dash Panel Insulator, No.3, LHD	5521574010 Pad, Dash Panel Insulator, No.3, LHD	-	1	Enquire
15	5370174010	Apron Sub-Assy, Front Fender RH	5370174010 Apron Sub-Assy, Front Fender RH	-	1	Enquire
16	5715574010	Reinforcement, Front Side Member, No.3 RH	5715574010 Reinforcement, Front Side Member, No.3 RH	-	1	Enquire
17	5373774010	Plate, Front Apron to Cowl Side Member RH	5373774010 Plate, Front Apron to Cowl Side Member RH	-	1	Enquire
18	5381574010	Reinforcement, Front Fender Apron, Front RH	5381574010 Reinforcement, Front Fender Apron, Front RH	-	1	Enquire
19	5371774010	Plate, Fender Apron	5371774010 Plate, Fender Apron	-	1	Enquire
20	5374374010	Gusset, Fender Apron RH	5374374010 Gusset, Fender Apron RH	-	1	Enquire
21	5516874010	Bracket, Front Fender Mounting RH	5516874010 Bracket, Front Fender Mounting RH	-	1	Enquire
22	5370774010	Extension, Front Fender RH	5370774010 Extension, Front Fender RH	-	1	Enquire
23	9167180816	Bolt, Flange	9167180816 Bolt, Flange 2 per side	-	4	Enquire
24	5371374010	Extension, Front Fender Apron, Front RH	5371374010 Extension, Front Fender Apron, Front RH	-	1	Enquire
25	9090105005	Bolt, Washer Based	9090105005 Bolt, Washer Based 2 per side	-	4	Enquire
26	5370274010	Apron Sub-Assy, Front Fender LH	5370274010 Apron Sub-Assy, Front Fender LH	-	1	Enquire
27	5373874010	Plate, Front Apron to Cowl Side Member LH	5373874010 Plate, Front Apron to Cowl Side Member LH	-	1	Enquire
28	5715674010	Reinforcement, Front Side Member, No.3 LH	5715674010 Reinforcement, Front Side Member, No.3 LH	-	1	Enquire
29	5516974010	Bracket, Front Fender Mounting LH	5516974010 Bracket, Front Fender Mounting LH	-	1	Enquire
30	5371874010	Plate, Fender Apron LH	5371874010 Plate, Fender Apron LH	-	1	Enquire
31	5381674010	Reinforcement, Front Fender Apron, Front LH	5381674010 Reinforcement, Front Fender Apron, Front LH	-	1	Enquire
32	5370874010	Extension, Front Fender LH	5370874010 Extension, Front Fender LH	-	1	Enquire
33	5371474010	Extension, Front Fender Apron, Front LH	5371474010 Extension, Front Fender Apron, Front LH	-	1	Enquire
