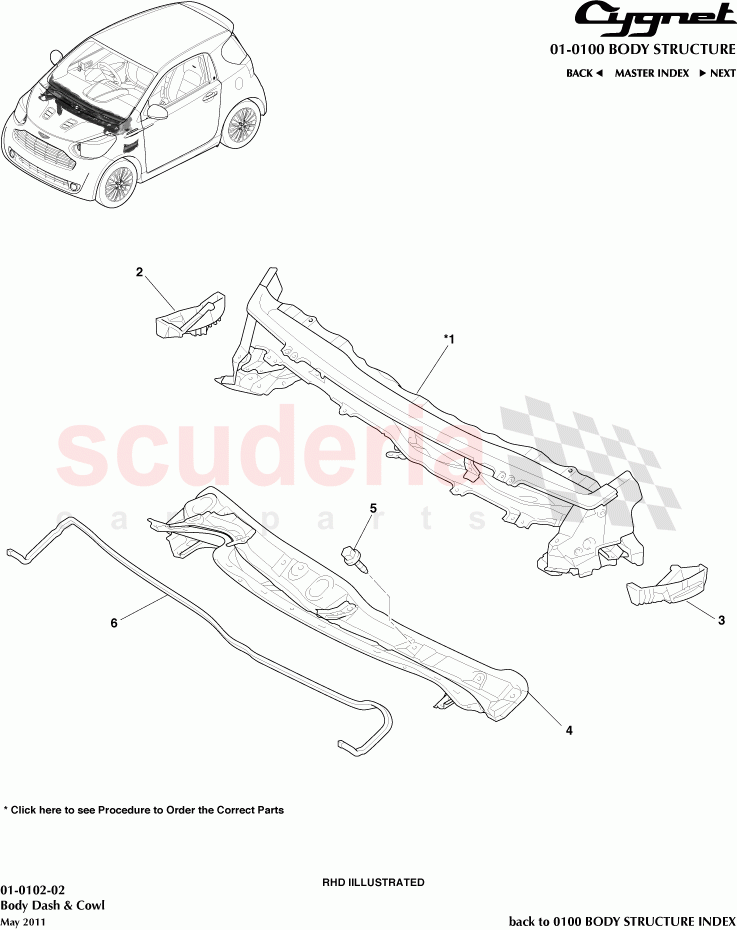

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5570074020	Panel Sub-Assy, Cowl, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5575174010	Shield, Cowl Ventilator Splash RH	$35.71	To Order

Photo	Part No	Description	Price (each)	Stock
	5575274010	Shield, Cowl Ventilator Splash LH	$39.03	To Order

Photo	Part No	Description	Price (each)	Stock
	5570174020	Panel Sub-Assy, Cowl Top, Outer, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011906786	Bolt, W/Washer	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	5573774010	Seal, Heater Air Duct Splash Shield No.1	$29.49	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5570074010	Panel Sub-Assy, Cowl, LHD	5570074010 Panel Sub-Assy, Cowl, LHD *To 07/2010	$861.90	1
-	5570074011	Panel Sub-Assy, Cowl, LHD	5570074011 Panel Sub-Assy, Cowl, LHD *From 08/2010	$566.33	1
-	5570174010	Panel Sub-Assy, Cowl Top, Outer, LHD	5570174010 Panel Sub-Assy, Cowl Top, Outer, LHD	$211.09	1
1	5570074020	Panel Sub-Assy, Cowl, RHD	5570074020 Panel Sub-Assy, Cowl, RHD	-	1	Enquire
2	5575174010	Shield, Cowl Ventilator Splash RH	5575174010 Shield, Cowl Ventilator Splash RH	$35.71	1
3	5575274010	Shield, Cowl Ventilator Splash LH	5575274010 Shield, Cowl Ventilator Splash LH	$39.03	1
4	5570174020	Panel Sub-Assy, Cowl Top, Outer, RHD	5570174020 Panel Sub-Assy, Cowl Top, Outer, RHD	-	1	Enquire
5	9011906786	Bolt, W/Washer	9011906786 Bolt, W/Washer	$1.48	9
6	5573774010	Seal, Heater Air Duct Splash Shield No.1	5573774010 Seal, Heater Air Duct Splash Shield No.1	$29.49	1
