Body Side and Quarter Ornamentation of Aston Martin Aston Martin Cygnet

View All

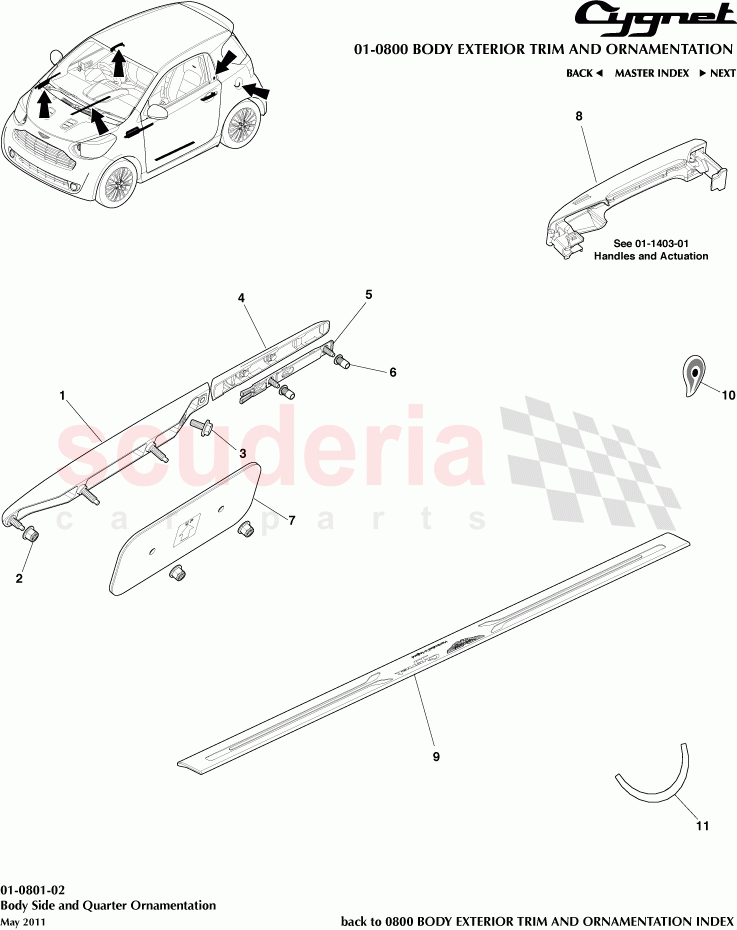

Aston Martin Cygnet - Body Side and Quarter Ornamentation

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2Y280B62AB	Side Strake, Fender, SATIN, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y018K28AA	Side Strake, Door, SATIN, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y0937AB	Retainer, Door Side Strake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y79103AA	Rivnut, M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y280B83AB	Mesh, Strake, PLATINUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y226A28AA	Handle, Exterior Door, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y132A51AA	Sill Plaque, Standard Cygnet, BLACK ANODISED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y220B04AA	Badge, LE, Yellow Enamel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y9026AA	Insert, Fuel Filler	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY2Y280B62BB	Side Strake, Fender, BRIGHT, RH	AY2Y280B62BB Side Strake, Fender, BRIGHT, RH	-	1	Enquire
-	AY2Y280B63AB	Side Strake, Fender, SATIN, LH	AY2Y280B63AB Side Strake, Fender, SATIN, LH	-	1	Enquire
-	AY2Y280B63BB	Side Strake, Fender, BRIGHT, LH	AY2Y280B63BB Side Strake, Fender, BRIGHT, LH	-	1	Enquire
-	AY2Y018K28BA	Side Strake, Door, BRIGHT, RH	AY2Y018K28BA Side Strake, Door, BRIGHT, RH	-	1	Enquire
-	AY2Y018K29AA	Side Strake, Door, SATIN, LH	AY2Y018K29AA Side Strake, Door, SATIN, LH	-	1	Enquire
-	AY2Y018K29BA	Side Strake, Door, BRIGHT, LH	AY2Y018K29BA Side Strake, Door, BRIGHT, LH	-	1	Enquire
-	AY2Y280B83BB	Mesh, Strake, MAGNUM SILVER	AY2Y280B83BB Mesh, Strake, MAGNUM SILVER	-	2	Enquire
-	AY2Y280B83CB	Mesh, Strake, BLACK (LE)	AY2Y280B83CB Mesh, Strake, BLACK (LE)	-	2	Enquire
-	AY2Y226A29AA	Handle, Exterior Door, LH	AY2Y226A29AA Handle, Exterior Door, LH	-	1	Enquire
-	AY2Y132A51BA	Sill Plaque, Standard Cygnet, CLEAR ANODISED	AY2Y132A51BA Sill Plaque, Standard Cygnet, CLEAR ANODISED 12.5MY	-	2	Enquire
-	AY2Y132A52AA	Sill Plaque, Personalised, BLACK ANODISED	AY2Y132A52AA Sill Plaque, Personalised, BLACK ANODISED	-	2	Enquire
-	AY2Y132A52BA	Sill Plaque, Personalised, CLEAR ANODISED	AY2Y132A52BA Sill Plaque, Personalised, CLEAR ANODISED 12.5MY	-	2	Enquire
-	AY2Y132A53AA	Sill Plaque, LE, BLACK ANODISED	AY2Y132A53AA Sill Plaque, LE, BLACK ANODISED	-	2	Enquire
-	AY2Y132A53BA	Sill Plaque, LE, CLEAR ANODISED	AY2Y132A53BA Sill Plaque, LE, CLEAR ANODISED 12.5MY	-	2	Enquire
-	AY2Y132A54AA	Sill Plaque, Personalised, LE, BLACK ANODISED	AY2Y132A54AA Sill Plaque, Personalised, LE, BLACK ANODISED	-	2	Enquire
-	AY2Y132A54BA	Sill Plaque, Personalised, LE, CLEAR ANODISED	AY2Y132A54BA Sill Plaque, Personalised, LE, CLEAR ANODISED 12.5MY	-	2	Enquire
-	AY2Y220B04AA	Badge, LE, Yellow Enamel	AY2Y220B04AA Badge, LE, Yellow Enamel Black LE Vehicle	-	2	Enquire
1	AY2Y280B62AB	Side Strake, Fender, SATIN, RH	AY2Y280B62AB Side Strake, Fender, SATIN, RH	-	1	Enquire
2	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking 3 per Strake	-	6	Enquire
3	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free 1 per Strake	-	2	Enquire
4	AY2Y018K28AA	Side Strake, Door, SATIN, RH	AY2Y018K28AA Side Strake, Door, SATIN, RH	-	1	Enquire
5	AY2Y0937AB	Retainer, Door Side Strake	AY2Y0937AB Retainer, Door Side Strake	-	2	Enquire
6	AY2Y79103AA	Rivnut, M5	AY2Y79103AA Rivnut, M5 2 per Rtnr	-	4	Enquire
7	AY2Y280B83AB	Mesh, Strake, PLATINUM	AY2Y280B83AB Mesh, Strake, PLATINUM	-	2	Enquire
8	AY2Y226A28AA	Handle, Exterior Door, RH	AY2Y226A28AA Handle, Exterior Door, RH	-	1	Enquire
9	AY2Y132A51AA	Sill Plaque, Standard Cygnet, BLACK ANODISED	AY2Y132A51AA Sill Plaque, Standard Cygnet, BLACK ANODISED	-	2	Enquire
10	AY2Y220B04AA	Badge, LE, Yellow Enamel	AY2Y220B04AA Badge, LE, Yellow Enamel White LE Vehicle	-	2	Enquire
11	AY2Y9026AA	Insert, Fuel Filler	AY2Y9026AA Insert, Fuel Filler	-	1	Enquire
