Bodyside and Quarter Panel, RHS of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Bodyside and Quarter Panel, RHS

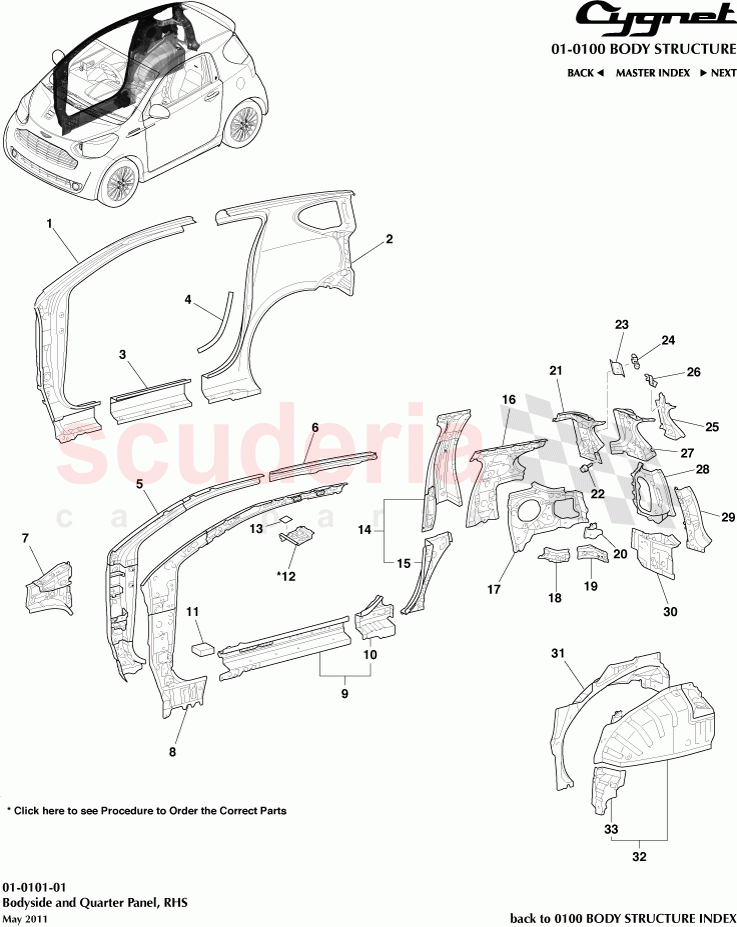

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6113174010	Pillar, Front Body, Upper Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6161174010	Panel, Quarter RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6141174010	Panel, Rocker, Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5874174010	Protector, Quarter Panel, front RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6110874011	Reinforce Sub-Assy, Front body Pillar, Lower RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6121174010	Rail, Roof Side, Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5570574010	Panel Sub-Assy, Cowl Top Side RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6102374905	Pillar Sub-Assy, Front Body, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6140374010	Reinforce Sub-Assy, Rocker, Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6138374010	Extension, Centre Body Pillar, Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6215152030	Pad, Cowl Side Silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6117574010	Reinforcement, Front Pillar, Upper Outer No.2 RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6182412070	Plate, noise Control, No.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103774902	Reinforcement Sub-Assy, Centre Body Pillar RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6132374010	Reinforcement, Centre Body Pillar, Lower RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6134374011	Pillar, Centre Body, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6134574011	Pillar, Centre Body, Inner Lower RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6171774010	Reinforcement, Quarter Panel Extension RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173774010	Reinforcement, Roof Side, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6176874010	Reinforce, Belt Anchor to Roof Side, Inner Rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173174011	Panel, Roof Side, Inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9164180816	Bolt, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6176674011	Reinforcement, Belt Anchor to Roof Side, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6167574010	Reinforce, Seat Belt Anchor, No.2 Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6162574010	Extension, Quarter Panel, Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6898174010	Retainer, Back Door Stay RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6174374011	Reinforcement, Back Door Opening Side RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6162174010	Trough, Back Door Opening RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103574010	Reinforcement Sub-Assy, Back Door Opening RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6173574011	Extension, Quarter Panel, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6163174011	Panel, Quarter Wheel House, Outer RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6160774011	Panel, Quarter Wheel House, Inner RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6164174011	Gusset, Quarter Wheel House, Front RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6117574011	Reinforcement, Front Pillar, Upper Outer No.2 RH	6117574011 Reinforcement, Front Pillar, Upper Outer No.2 RH From 10/2010	-	1	Enquire
1	6113174010	Pillar, Front Body, Upper Outer RH	6113174010 Pillar, Front Body, Upper Outer RH	-	1	Enquire
2	6161174010	Panel, Quarter RH	6161174010 Panel, Quarter RH	-	1	Enquire
3	6141174010	Panel, Rocker, Outer RH	6141174010 Panel, Rocker, Outer RH	-	1	Enquire
4	5874174010	Protector, Quarter Panel, front RH	5874174010 Protector, Quarter Panel, front RH	-	1	Enquire
5	6110874011	Reinforce Sub-Assy, Front body Pillar, Lower RH	6110874011 Reinforce Sub-Assy, Front body Pillar, Lower RH	-	1	Enquire
6	6121174010	Rail, Roof Side, Outer RH	6121174010 Rail, Roof Side, Outer RH	-	1	Enquire
7	5570574010	Panel Sub-Assy, Cowl Top Side RH	5570574010 Panel Sub-Assy, Cowl Top Side RH	-	1	Enquire
8	6102374905	Pillar Sub-Assy, Front Body, Inner RH	6102374905 Pillar Sub-Assy, Front Body, Inner RH	-	1	Enquire
9	6140374010	Reinforce Sub-Assy, Rocker, Outer RH	6140374010 Reinforce Sub-Assy, Rocker, Outer RH	-	1	Enquire
10	6138374010	Extension, Centre Body Pillar, Outer RH	6138374010 Extension, Centre Body Pillar, Outer RH	-	1	Enquire
11	6215152030	Pad, Cowl Side Silencer	6215152030 Pad, Cowl Side Silencer	-	1	Enquire
12	6117574010	Reinforcement, Front Pillar, Upper Outer No.2 RH	6117574010 Reinforcement, Front Pillar, Upper Outer No.2 RH To 09/2010	-	1	Enquire
13	6182412070	Plate, noise Control, No.1	6182412070 Plate, noise Control, No.1	-	1	Enquire
14	6103774902	Reinforcement Sub-Assy, Centre Body Pillar RH	6103774902 Reinforcement Sub-Assy, Centre Body Pillar RH	-	1	Enquire
15	6132374010	Reinforcement, Centre Body Pillar, Lower RH	6132374010 Reinforcement, Centre Body Pillar, Lower RH	-	1	Enquire
16	6134374011	Pillar, Centre Body, Inner RH	6134374011 Pillar, Centre Body, Inner RH	-	1	Enquire
17	6134574011	Pillar, Centre Body, Inner Lower RH	6134574011 Pillar, Centre Body, Inner Lower RH	-	1	Enquire
18	6171774010	Reinforcement, Quarter Panel Extension RH	6171774010 Reinforcement, Quarter Panel Extension RH	-	1	Enquire
19	6173774010	Reinforcement, Roof Side, Inner RH	6173774010 Reinforcement, Roof Side, Inner RH	-	1	Enquire
20	6176874010	Reinforce, Belt Anchor to Roof Side, Inner Rear RH	6176874010 Reinforce, Belt Anchor to Roof Side, Inner Rear RH	-	1	Enquire
21	6173174011	Panel, Roof Side, Inner	6173174011 Panel, Roof Side, Inner	-	1	Enquire
22	9164180816	Bolt, W/Washer	9164180816 Bolt, W/Washer	-	2	Enquire
23	6176674011	Reinforcement, Belt Anchor to Roof Side, Inner RH	6176674011 Reinforcement, Belt Anchor to Roof Side, Inner RH	-	1	Enquire
24	6167574010	Reinforce, Seat Belt Anchor, No.2 Upper RH	6167574010 Reinforce, Seat Belt Anchor, No.2 Upper RH	-	1	Enquire
25	6162574010	Extension, Quarter Panel, Upper RH	6162574010 Extension, Quarter Panel, Upper RH	-	1	Enquire
26	6898174010	Retainer, Back Door Stay RH	6898174010 Retainer, Back Door Stay RH	-	1	Enquire
27	6174374011	Reinforcement, Back Door Opening Side RH	6174374011 Reinforcement, Back Door Opening Side RH	-	1	Enquire
28	6162174010	Trough, Back Door Opening RH	6162174010 Trough, Back Door Opening RH	-	1	Enquire
29	6103574010	Reinforcement Sub-Assy, Back Door Opening RH	6103574010 Reinforcement Sub-Assy, Back Door Opening RH	-	1	Enquire
30	6173574011	Extension, Quarter Panel, Inner RH	6173574011 Extension, Quarter Panel, Inner RH	-	1	Enquire
31	6163174011	Panel, Quarter Wheel House, Outer RH	6163174011 Panel, Quarter Wheel House, Outer RH	-	1	Enquire
32	6160774011	Panel, Quarter Wheel House, Inner RH	6160774011 Panel, Quarter Wheel House, Inner RH	-	1	Enquire
33	6164174011	Gusset, Quarter Wheel House, Front RH	6164174011 Gusset, Quarter Wheel House, Front RH	-	1	Enquire
