Handles and Actuation of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Handles and Actuation

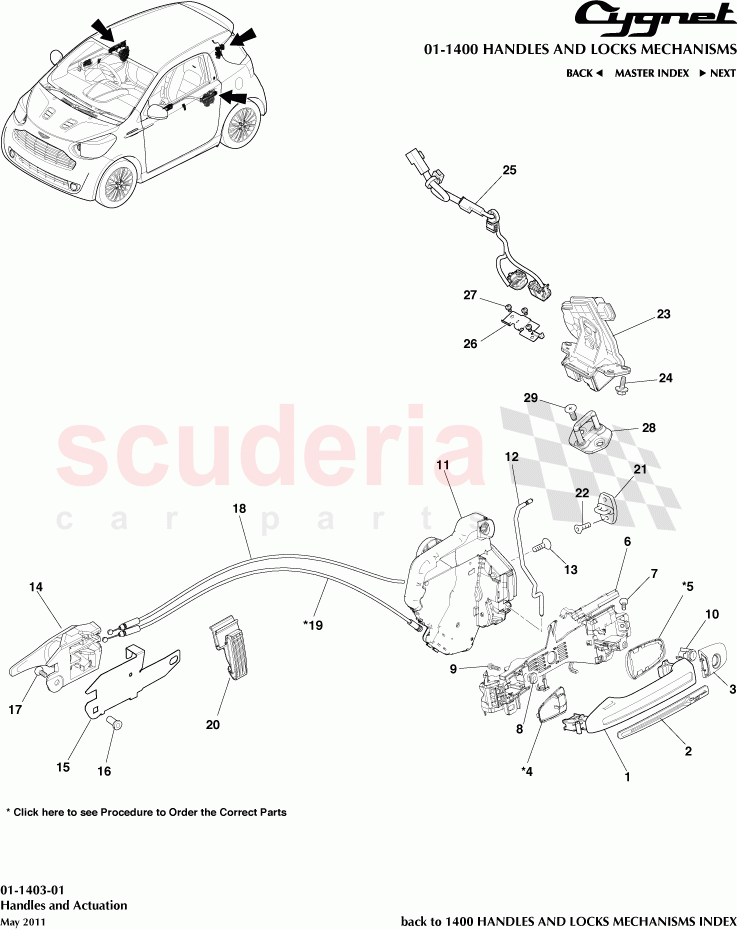

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2Y226A28AA	Handle, Exterior Door, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y226W78AA	Handle Badge, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6921774010C1	Cover Assy, Exterior Door Handle, Drivers, BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6924130111	Pad, Exterior Door Handle, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6924230091	Pad, Exterior Door Handle, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6920130071	Frame Sub Assy, Exterior Door Handle, RHS, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9014850003	Screw, Hex Lobular	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6923730010	Nut, Door Handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6929630010	Screw, Door Inside	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6900574040	Keys and Cylinder Lock, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6903053080	Lock Assy, Front Door W/Motor, RHS, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6931274010	Rod, Front Door Lock Open, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9014860022	Bolt, Door Lock V497	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y22691AC	Handle Sub Assy, Door Inside, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y431A10AB	Bracket, Handle, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2YW790118AB	Rivnut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6971074010	Cable Assy, Front Door Lock Remote Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6975074030	Cable Assy, Front Door Inside Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6974974010	Clamp, Door Lock Link	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6941033010	Striker Assy, Front Door Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9014880066	Bolt, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6935002080	Lock Assy, Back Door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9011906417	Bolt, W/Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y14A227AB	Switch, Tailgate Release Link Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y43525AB	Mounting Plate, Tailgate Release	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702211	SCREW M5x8.0x0.80 PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6943020160	Striker Assy, Back Door Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9014880066	Bolt, W/Washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY2Y226W79AA	Handle Badge, LHS	AY2Y226W79AA Handle Badge, LHS	-	1	Enquire
-	6921774010B0	Cover Assy, Exterior Door Handle, Drivers, SILVER	6921774010B0 Cover Assy, Exterior Door Handle, Drivers, SILVER Requires Colour Matching	-	1	Enquire
-	6921774010A0	Cover Assy, Exterior Door Handle, Drivers, WHITE	6921774010A0 Cover Assy, Exterior Door Handle, Drivers, WHITE Requires Colour Matching	-	1	Enquire
-	6925074010C1	Cover Assy, Exterior Door Handle, Passengers, BLACK	6925074010C1 Cover Assy, Exterior Door Handle, Passengers, BLACK Requires Colour Matching	-	1	Enquire
-	6925074010B0	Cover Assy, Exterior Door Handle, Passengers, SILVER	6925074010B0 Cover Assy, Exterior Door Handle, Passengers, SILVER Requires Colour Matching	-	1	Enquire
-	6925074010A1	Cover Assy, Exterior Door Handle, Passengers, WHITE	6925074010A1 Cover Assy, Exterior Door Handle, Passengers, WHITE Requires Colour Matching	-	1	Enquire
-	6924130110	Pad, Exterior Door Handle, Front	6924130110 Pad, Exterior Door Handle, Front *From 11/2010, One per side	-	2	Enquire
-	6924230090	Pad, Exterior Door Handle, Rear	6924230090 Pad, Exterior Door Handle, Rear *From 11/2010, One per side	-	2	Enquire
-	6920174011	Frame Sub Assy, Exterior Door Handle, RHS, RHD	6920174011 Frame Sub Assy, Exterior Door Handle, RHS, RHD	-	1	Enquire
-	6920230061	Frame Sub Assy, Exterior Door Handle, LHS	6920230061 Frame Sub Assy, Exterior Door Handle, LHS	-	1	Enquire
-	6900574050	Keys and Cylinder Lock, RHD	6900574050 Keys and Cylinder Lock, RHD	-	1	Enquire
-	6903042221	Lock Assy, Front Door W/Motor, RHS, LHD	6903042221 Lock Assy, Front Door W/Motor, RHS, LHD	-	1	Enquire
-	6904053090	Lock Assy, Front Door W/Motor, LHS, RHD	6904053090 Lock Assy, Front Door W/Motor, LHS, RHD	-	1	Enquire
-	6904042241	Lock Assy, Front Door W/Motor, LHS, LHD	6904042241 Lock Assy, Front Door W/Motor, LHS, LHD	-	1	Enquire
-	6931174010	Rod, Front Door Lock Open, RH	6931174010 Rod, Front Door Lock Open, RH	-	1	Enquire
-	AY2Y22690AC	Handle Sub Assy, Door Inside, RH	AY2Y22690AC Handle Sub Assy, Door Inside, RH	-	1	Enquire
-	AY2Y431A11AB	Bracket, Handle, RH	AY2Y431A11AB Bracket, Handle, RH	-	1	Enquire
-	6975074030	Cable Assy, Front Door Inside Locking	6975074030 Cable Assy, Front Door Inside Locking *From 12/2010, One per side	-	2	Enquire
-	AY2Y7N577AA	Counter Mass, Handle	AY2Y7N577AA Counter Mass, Handle One per side	-	2	Enquire
-	701653	Spring Nut, U Type, 4.2 x 0.7-2	701653 Spring Nut, U Type, 4.2 x 0.7-2 One per side	-	2	Enquire
1	AY2Y226A28AA	Handle, Exterior Door, RH	AY2Y226A28AA Handle, Exterior Door, RH Requires Colour Matching	-	1	Enquire
2	AY2Y226W78AA	Handle Badge, RHS	AY2Y226W78AA Handle Badge, RHS	-	1	Enquire
3	6921774010C1	Cover Assy, Exterior Door Handle, Drivers, BLACK	6921774010C1 Cover Assy, Exterior Door Handle, Drivers, BLACK Requires Colour Matching	-	1	Enquire
4	6924130111	Pad, Exterior Door Handle, Front	6924130111 Pad, Exterior Door Handle, Front *To 11/2010, One per side	-	2	Enquire
5	6924230091	Pad, Exterior Door Handle, Rear	6924230091 Pad, Exterior Door Handle, Rear *To 11/2010, One per side	-	2	Enquire
6	6920130071	Frame Sub Assy, Exterior Door Handle, RHS, LHD	6920130071 Frame Sub Assy, Exterior Door Handle, RHS, LHD	-	1	Enquire
7	9014850003	Screw, Hex Lobular	9014850003 Screw, Hex Lobular One per side	-	2	Enquire
8	6923730010	Nut, Door Handle	6923730010 Nut, Door Handle One per side	-	2	Enquire
9	6929630010	Screw, Door Inside	6929630010 Screw, Door Inside One per side	-	2	Enquire
10	6900574040	Keys and Cylinder Lock, LHD	6900574040 Keys and Cylinder Lock, LHD	-	1	Enquire
11	6903053080	Lock Assy, Front Door W/Motor, RHS, RHD	6903053080 Lock Assy, Front Door W/Motor, RHS, RHD	-	1	Enquire
12	6931274010	Rod, Front Door Lock Open, LH	6931274010 Rod, Front Door Lock Open, LH	-	1	Enquire
13	9014860022	Bolt, Door Lock V497	9014860022 Bolt, Door Lock V497 Three per side	-	6	Enquire
14	AY2Y22691AC	Handle Sub Assy, Door Inside, LH	AY2Y22691AC Handle Sub Assy, Door Inside, LH	-	1	Enquire
15	AY2Y431A10AB	Bracket, Handle, LH	AY2Y431A10AB Bracket, Handle, LH	-	1	Enquire
16	AY2YW790118AB	Rivnut	AY2YW790118AB Rivnut	-	1	Enquire
17	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10) One per side	-	2	Enquire
18	6971074010	Cable Assy, Front Door Lock Remote Control	6971074010 Cable Assy, Front Door Lock Remote Control One per side	-	2	Enquire
19	6975074030	Cable Assy, Front Door Inside Locking	6975074030 Cable Assy, Front Door Inside Locking *To 11/2010, One per side	-	2	Enquire
20	6974974010	Clamp, Door Lock Link	6974974010 Clamp, Door Lock Link One per side	-	2	Enquire
21	6941033010	Striker Assy, Front Door Lock	6941033010 Striker Assy, Front Door Lock One per side	-	2	Enquire
22	9014880066	Bolt, W/Washer	9014880066 Bolt, W/Washer 2 Per Assembly	-	2	Enquire
23	6935002080	Lock Assy, Back Door	6935002080 Lock Assy, Back Door	-	1	Enquire
24	9011906417	Bolt, W/Washer	9011906417 Bolt, W/Washer	-	3	Enquire
25	AY2Y14A227AB	Switch, Tailgate Release Link Assembly	AY2Y14A227AB Switch, Tailgate Release Link Assembly	-	1	Enquire
26	AY2Y43525AB	Mounting Plate, Tailgate Release	AY2Y43525AB Mounting Plate, Tailgate Release	-	1	Enquire
27	702211	SCREW M5x8.0x0.80 PAN HEAD	702211 SCREW M5x8.0x0.80 PAN HEAD	-	3	Enquire
28	6943020160	Striker Assy, Back Door Lock	6943020160 Striker Assy, Back Door Lock	-	1	Enquire
29	9014880066	Bolt, W/Washer	9014880066 Bolt, W/Washer 2 Per Assembly	-	2	Enquire
