Find Your Part

View All

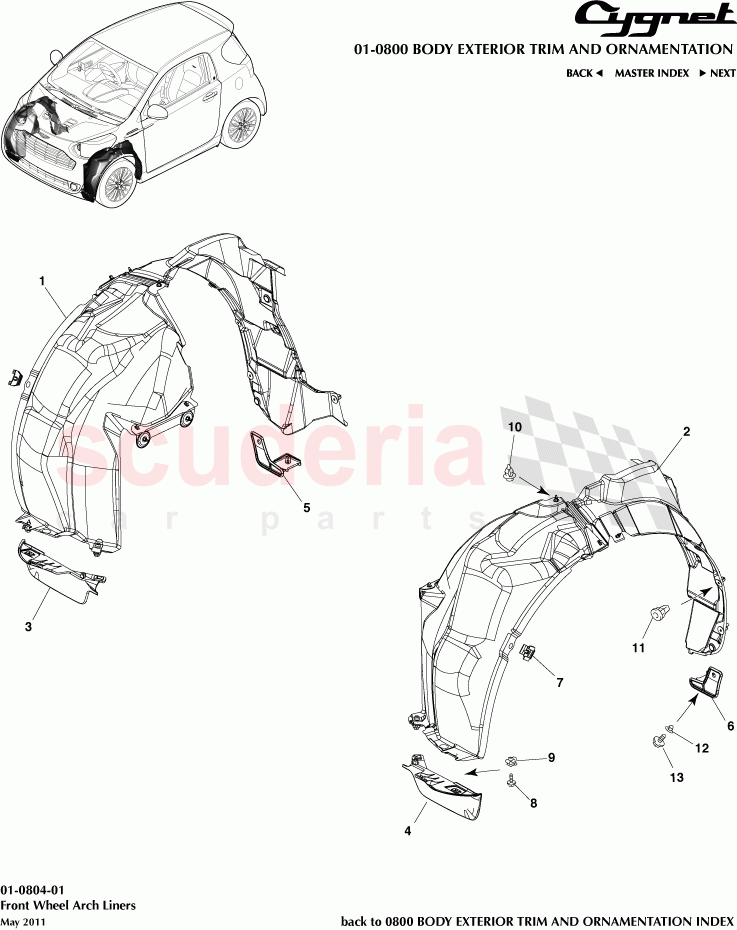

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5380574010	Liner Sub-Assy, Front Fender, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5380674010	Liner Sub-Assy, Front Fender, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5385174040	Pad, Front Wheel Opening Extension, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5385274040	Pad, Front Wheel Opening Extension, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5388874011	Mudguard Fender Rear Plate, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5388974011	Mudguard Fender Rear Plate, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5387928010	Retainer, Front Fender Liner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9015960488	Screw/ Washer, Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046705114	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046707214	Clip, Front Fender Liner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9018906013	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9018906065	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9015960602	Screw, with Washer	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	5380574010	Liner Sub-Assy, Front Fender, RH	5380574010 Liner Sub-Assy, Front Fender, RH	-	1	Enquire
2	5380674010	Liner Sub-Assy, Front Fender, LH	5380674010 Liner Sub-Assy, Front Fender, LH	-	1	Enquire
3	5385174040	Pad, Front Wheel Opening Extension, RH	5385174040 Pad, Front Wheel Opening Extension, RH	-	1	Enquire
4	5385274040	Pad, Front Wheel Opening Extension, LH	5385274040 Pad, Front Wheel Opening Extension, LH	-	1	Enquire
5	5388874011	Mudguard Fender Rear Plate, RH	5388874011 Mudguard Fender Rear Plate, RH	-	1	Enquire
6	5388974011	Mudguard Fender Rear Plate, LH	5388974011 Mudguard Fender Rear Plate, LH	-	1	Enquire
7	5387928010	Retainer, Front Fender Liner	5387928010 Retainer, Front Fender Liner 1 Per Liner	-	2	Enquire
8	9015960488	Screw/ Washer, Tapping	9015960488 Screw/ Washer, Tapping 2 per liner	-	4	Enquire
9	9046705114	Clip	9046705114 Clip 2 per liner	-	4	Enquire
10	9046707214	Clip, Front Fender Liner	9046707214 Clip, Front Fender Liner 8 per liner	-	16	Enquire
11	9018906013	Grommet	9018906013 Grommet 3 per liner	-	6	Enquire
12	9018906065	Grommet	9018906065 Grommet 1 per liner	-	2	Enquire
13	9015960602	Screw, with Washer	9015960602 Screw, with Washer 1 per liner	-	2	Enquire
