FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - FUEL PUMPS AND CONNECTION LINES (01434)

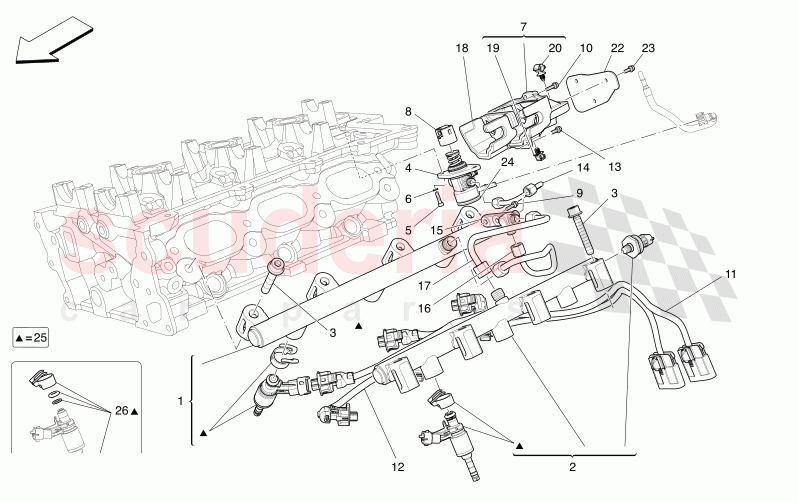

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	815679	RH FUEL PIPE WITH INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815680	LH FUEL PIPE WITH INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREWM8X50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329202	HIGH PRESSURE FUEL PUMPNBD26 PHP099	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305434	SCREWM6X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670272117	COMPLETE RH LATERAL PANEL BL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309114	CPL. ACOUSTIC COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW M6 X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296209	RH CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311644	LH CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310550	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287494	DISTRIBUTOR	Enquire	To Order
	298649	DISTRIBUTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282572	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282571	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302810	SOUNDPROOFING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283287	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303438	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670030185	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000173	SCREWM6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333908	DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	341083	INJECTOR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015589	INJECTOR SEAL KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	815679	RH FUEL PIPE WITH INJECTORS	815679 RH FUEL PIPE WITH INJECTORS SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
2	815680	LH FUEL PIPE WITH INJECTORS	815680 LH FUEL PIPE WITH INJECTORS SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
3	285494	SCREWM8X50	285494 SCREWM8X50	-	8	Enquire
4	329202	HIGH PRESSURE FUEL PUMPNBD26 PHP099	329202 HIGH PRESSURE FUEL PUMPNBD26 PHP099 PLEASE, ORDER ALSO PN 333908;	-	1	Enquire
5	14305434	SCREWM6X25	14305434 SCREWM6X25	-	2	Enquire
6	670272117	COMPLETE RH LATERAL PANEL BL	670272117 COMPLETE RH LATERAL PANEL BL	-	2	Enquire
7	309114	CPL. ACOUSTIC COVER	309114 CPL. ACOUSTIC COVER	-	1	Enquire
8	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET Diameter 26;	-	1	Enquire
9	231620	SCREW M6 X 25	231620 SCREW M6 X 25	-	2	Enquire
10	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	-	2	Enquire
11	296209	RH CABLE	296209 RH CABLE	-	1	Enquire
12	311644	LH CABLE	311644 LH CABLE	-	1	Enquire
13	231617	SCREW M6 X 18	231617 SCREW M6 X 18	-	2	Enquire
14	310550	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	310550 HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION;	-	1	Enquire
15	287494	DISTRIBUTOR	287494 DISTRIBUTOR Bespoke Engine Number 0 - 208324;	-	1	Enquire
15	298649	DISTRIBUTOR	298649 DISTRIBUTOR	-	1	Enquire
16	282572	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	282572 RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION;	-	1	Enquire
17	282571	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	282571 LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION;	-	1	Enquire
18	302810	SOUNDPROOFING ELEMENT	302810 SOUNDPROOFING ELEMENT	-	1	Enquire
19	283287	CLIP	283287 CLIP	-	1	Enquire
20	303438	CLIP	303438 CLIP	-	1	Enquire
22	670030185	PLATE	670030185 PLATE	-	1	Enquire
23	675000173	SCREWM6X16	675000173 SCREWM6X16	-	3	Enquire
24	333908	DAMPER	333908 DAMPER PLEASE, ORDER ONLY IF YOU NEED REPLACE GDI HIGH PRESSURE FUEL PUMP;	-	1	Enquire
25	341083	INJECTOR ASSEMBLY	341083 INJECTOR ASSEMBLY Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	6	Enquire
26	673015589	INJECTOR SEAL KIT	673015589 INJECTOR SEAL KIT	-	6	Enquire
