INTERCOOLER SYSTEM of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

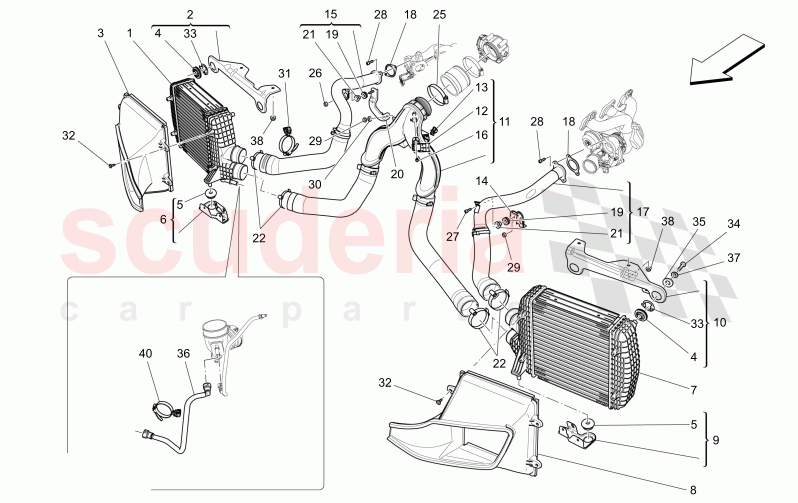

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - INTERCOOLER SYSTEM (01323)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670109554	RH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031962	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670300486	RH SIDE AIR DUCT	Enquire	To Order
	670103768	RH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000201	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670009556	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031963	RH LOWER BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670109550	LH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670300489	LH SIDE AIR DUCT	Enquire	To Order
	670103769	LH SIDE AIR DUCT	Enquire	To Order
	670103769	LH SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031960	LH LOWER BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

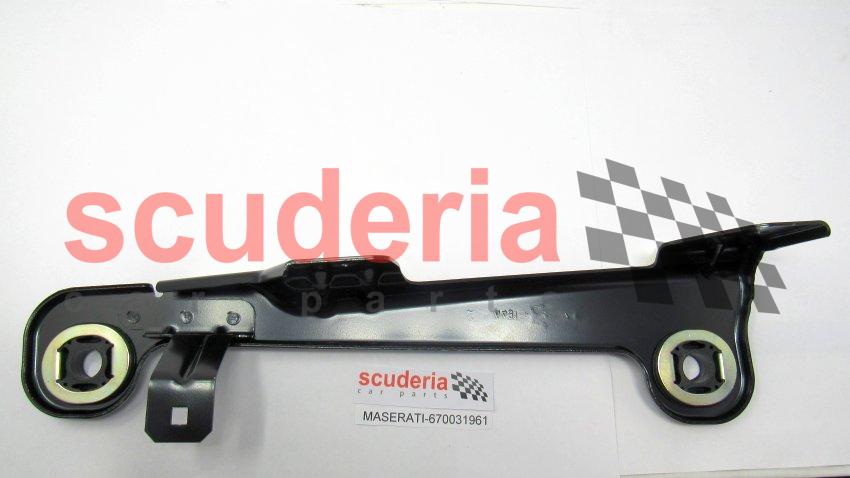

	670031961	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670039138	AIR INLET SLEEVE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000248	PRESSURE TRANSMITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006739	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670009370	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104145	SLEEVE FROM TURBINE TO RH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000190	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104915	SLEEVE FROM TURBINE TO LH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006210	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000016	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105605	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000017	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000362	COLLARD.78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

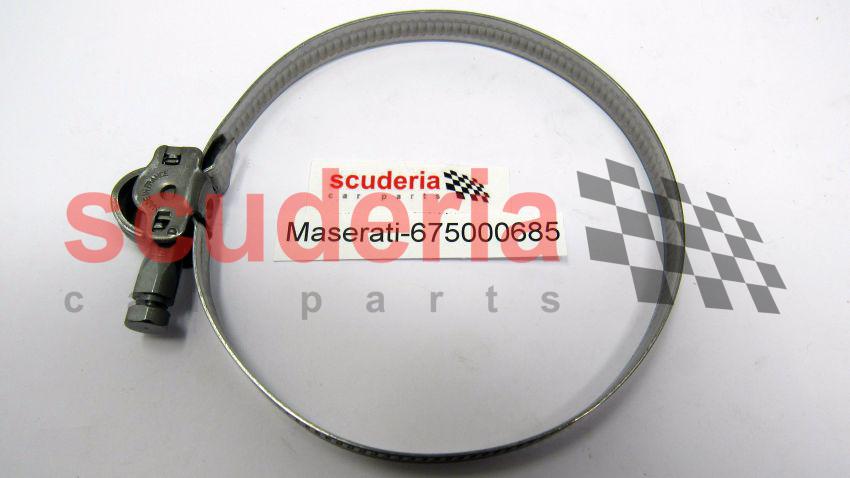

	675000685	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670270980	KICK PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000088	SCREWM6X22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000104	SCREW M6 X 25MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670270980	KICK PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000366	WASHERD.6.15-15X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000354	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670311955	DEFLECTOR BRAKE CALIPER FRON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670039441	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105049	VAPOUR PIPE FROM CLEAN AIR SLEEVE TO ENGINE AIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000718	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670270980	KICK PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670101334	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670109554	RH INTERCOOLER	670109554 RH INTERCOOLER Bespoke Assembly Number 6068325 - 99999999;	-	1	Enquire
2	670031962	RH BRACKET	670031962 RH BRACKET	-	1	Enquire
3	670300486	RH SIDE AIR DUCT	670300486 RH SIDE AIR DUCT Bespoke Assembly Number 6087717 - 99999999; Not available with: GRANSPORT FASCIAS CHARACTERISATION (Specific Front and Rear Bumpers and Side Skirts in Body Paint), GT, TRIM LUXURY;	-	1	Enquire
3	670103768	RH SIDE AIR DUCT	670103768 RH SIDE AIR DUCT Bespoke Assembly Number 6087717 - 6111898; Not available with: GRANSPORT FASCIAS CHARACTERISATION (Specific Front and Rear Bumpers and Side Skirts in Body Paint), GT, TRIM LUXURY, TROFEO;	-	1	Enquire
4	675000201	FLEXIBLE PAD	675000201 FLEXIBLE PAD	-	4	Enquire
5	670009556	BUSHING	670009556 BUSHING	-	2	Enquire
6	670031963	RH LOWER BRACKET ASSEMBLY	670031963 RH LOWER BRACKET ASSEMBLY	-	1	Enquire
7	670109550	LH INTERCOOLER	670109550 LH INTERCOOLER Bespoke Assembly Number 6068038 - 99999999;	-	1	Enquire
8	670300489	LH SIDE AIR DUCT	670300489 LH SIDE AIR DUCT Bespoke Assembly Number 6087717 - 99999999; Not available with: GT, TRIM LUXURY, TROFEO;	-	1	Enquire
8	670103769	LH SIDE AIR DUCT	670103769 LH SIDE AIR DUCT WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6087717 - 6111898; Not available with: GT, TRIM LUXURY, TROFEO;	-	1	Enquire
8	670103769	LH SIDE AIR DUCT	670103769 LH SIDE AIR DUCT WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6111898; Available with: ZEGNA PELLETESSUTA ;	-	1	Enquire
9	670031960	LH LOWER BRACKET ASSEMBLY	670031960 LH LOWER BRACKET ASSEMBLY	-	1	Enquire
10	670031961	LH BRACKET	670031961 LH BRACKET	-	1	Enquire
11	670039138	AIR INLET SLEEVE ASSEMBLY	670039138 AIR INLET SLEEVE ASSEMBLY	-	1	Enquire
12	675000248	PRESSURE TRANSMITTER	675000248 PRESSURE TRANSMITTER	-	1	Enquire
13	670006739	CLIP	670006739 CLIP	-	2	Enquire
14	670009370	LH BRACKET	670009370 LH BRACKET	-	1	Enquire
15	670104145	SLEEVE FROM TURBINE TO RH INTERCOOLER	670104145 SLEEVE FROM TURBINE TO RH INTERCOOLER Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
16	675000190	SCREWM6X20	675000190 SCREWM6X20	-	1	Enquire
17	670104915	SLEEVE FROM TURBINE TO LH INTERCOOLER	670104915 SLEEVE FROM TURBINE TO LH INTERCOOLER Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
18	670006210	GASKET	670006210 GASKET	-	2	Enquire
19	675000016	FLEXIBLE PAD	675000016 FLEXIBLE PAD	-	2	Enquire
20	670105605	RH BRACKET	670105605 RH BRACKET Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
21	675000017	SPACER	675000017 SPACER	-	2	Enquire
22	675000362	COLLARD.78	675000362 COLLARD.78	-	4	Enquire
25	675000685	COLLAR	675000685 COLLAR	-	1	Enquire
26	670270980	KICK PLATE	670270980 KICK PLATE	-	1	Enquire
27	675000088	SCREWM6X22	675000088 SCREWM6X22	-	2	Enquire
28	675000104	SCREW M6 X 25MM	675000104 SCREW M6 X 25MM	-	4	Enquire
29	670270980	KICK PLATE	670270980 KICK PLATE	-	2	Enquire
30	675000366	WASHERD.6.15-15X1	675000366 WASHERD.6.15-15X1	-	1	Enquire
32	675000354	SCREW	675000354 SCREW	-	8	Enquire
34	670311955	DEFLECTOR BRAKE CALIPER FRON	670311955 DEFLECTOR BRAKE CALIPER FRON	-	2	Enquire
35	670039441	WASHER	670039441 WASHER	-	2	Enquire
36	670105049	VAPOUR PIPE FROM CLEAN AIR SLEEVE TO ENGINE AIR PIPE	670105049 VAPOUR PIPE FROM CLEAN AIR SLEEVE TO ENGINE AIR PIPE Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
37	675000718	WASHER	675000718 WASHER	-	4	Enquire
38	670270980	KICK PLATE	670270980 KICK PLATE	-	4	Enquire
40	670101334	CLIP	670101334 CLIP	-	2	Enquire
