SILENCERS of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

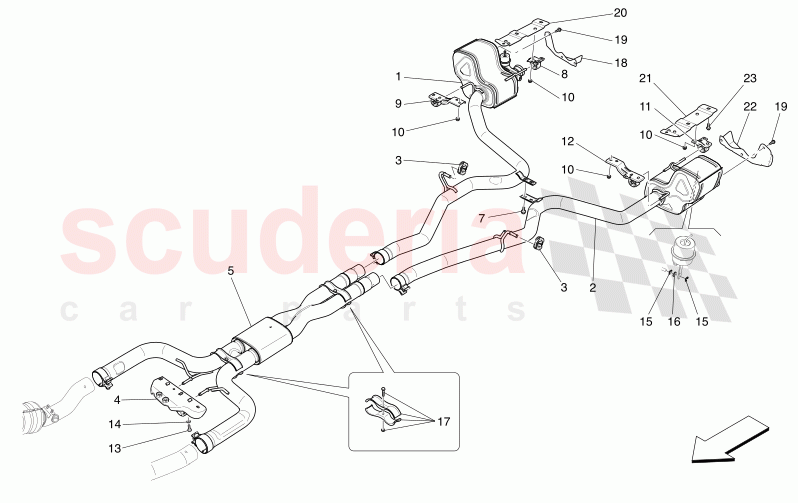

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - SILENCERS (01812)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670157998	REAR RH MUFFLER	Enquire	To Order
	673015680	RH/LH EXHAUST SILENCER KIT	Enquire	To Order
	670215246	REAR RH MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670157995	REAR LH MUFFLER	Enquire	To Order
	673015680	RH/LH EXHAUST SILENCER KIT	Enquire	To Order
	670215244	REAR LH MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001949	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003897	CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104959	CENTRAL SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000705	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031936	RH REAR SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174967	RH FRONT SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000328	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034561	LH REAR SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174966	LH FRONT SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000089	WASHERD.8.15-17X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003135	LOCK RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003136	ELASTIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003961	KIT EXHAUST SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000665	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178878	RH BRACKET	Enquire	To Order
	670103213	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670103214	LH BRACKET	Enquire	To Order
	670178879	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000761	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670157998	REAR RH MUFFLER	670157998 REAR RH MUFFLER IF OUT OF STOCK GIVE THE KIT 673015680; Bespoke Assembly Number 6075070 - 6090635; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
1	673015680	RH/LH EXHAUST SILENCER KIT	673015680 RH/LH EXHAUST SILENCER KIT IF THE KIT HAS ALREADY BEEN REPLACED ON THE CAR GIVE THE 670215246 (RH) OR IL670215244 (LH); Bespoke Assembly Number 6075070 - 6090635; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
1	670215246	REAR RH MUFFLER	670215246 REAR RH MUFFLER Bespoke Assembly Number 6090636 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
2	670157995	REAR LH MUFFLER	670157995 REAR LH MUFFLER IF OUT OF STOCK GIVE THE KIT 673015680; Bespoke Assembly Number 6072547 - 6090635; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
2	673015680	RH/LH EXHAUST SILENCER KIT	673015680 RH/LH EXHAUST SILENCER KIT IF THE KIT HAS ALREADY BEEN REPLACED ON THE CAR GIVE THE 670215246 (RH) OR IL670215244 (LH); Bespoke Assembly Number 6075070 - 6090635; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
2	670215244	REAR LH MUFFLER	670215244 REAR LH MUFFLER Bespoke Assembly Number 6090636 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
3	675001949	FLEXIBLE PAD	675001949 FLEXIBLE PAD Bespoke Assembly Number 6079467 - 99999999;	-	2	Enquire
4	670003897	CENTRAL BRACKET	670003897 CENTRAL BRACKET	-	1	Enquire
5	670104959	CENTRAL SILENCER	670104959 CENTRAL SILENCER Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
7	675000705	SCREW	675000705 SCREW	-	2	Enquire
8	670031936	RH REAR SILENCER SUPPORT	670031936 RH REAR SILENCER SUPPORT	-	1	Enquire
9	670174967	RH FRONT SILENCER SUPPORT	670174967 RH FRONT SILENCER SUPPORT Bespoke Assembly Number 6087717 - 99999999;	-	1	Enquire
10	675000328	NUT	675000328 NUT	-	6	Enquire
11	670034561	LH REAR SILENCER SUPPORT	670034561 LH REAR SILENCER SUPPORT	-	1	Enquire
12	670174966	LH FRONT SILENCER SUPPORT	670174966 LH FRONT SILENCER SUPPORT	-	1	Enquire
13	675000774	SCREW	675000774 SCREW	-	2	Enquire
14	675000089	WASHERD.8.15-17X2	675000089 WASHERD.8.15-17X2	-	2	Enquire
15	673003135	LOCK RING	673003135 LOCK RING	-	4	Enquire
16	673003136	ELASTIC WASHER	673003136 ELASTIC WASHER	-	2	Enquire
17	673003961	KIT EXHAUST SILENCER SUPPORT	673003961 KIT EXHAUST SILENCER SUPPORT	-	2	Enquire
19	675000665	SCREW	675000665 SCREW	-	6	Enquire
20	670178878	RH BRACKET	670178878 RH BRACKET Not available with: POLISHED BRAKE CALIPERS, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW;	-	1	Enquire
20	670103213	RH BRACKET	670103213 RH BRACKET Bespoke Assembly Number 0 - 6087890; Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW;	-	1	Enquire
21	670103214	LH BRACKET	670103214 LH BRACKET Bespoke Assembly Number 0 - 6087890; Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW;	-	1	Enquire
21	670178879	LH BRACKET	670178879 LH BRACKET Not available with: POLISHED BRAKE CALIPERS, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW;	-	1	Enquire
23	675000761	SCREW	675000761 SCREW Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION, TRAILER TOW GROUP ROW;	-	6	Enquire
