LUBRICATION SYSTEM: CIRCUIT AND COLLECTION of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION (01603)

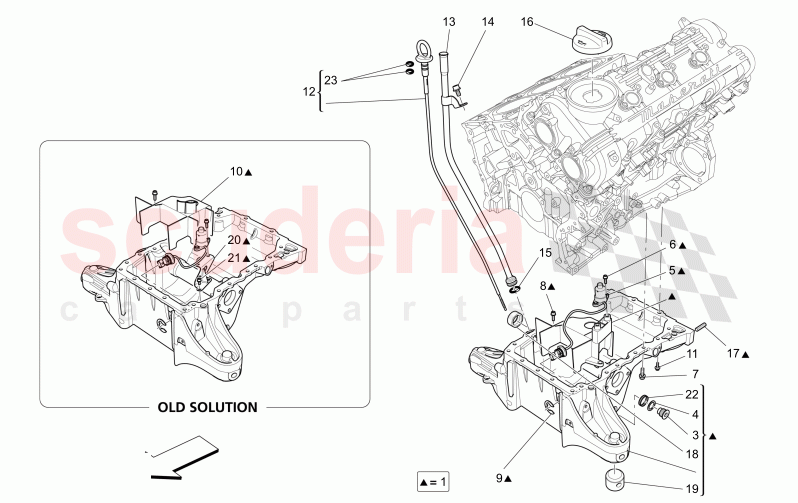

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316930	OIL SUMP ASSEMBLY	Enquire	To Order
	849084	OIL SUMP ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	230171	OIL LEVEL DETECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREWM6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREWM6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16165276	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291687	OIL SUMP SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295634	SCREWM6X22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315073	DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	789110	OIL DIPSTICK HOLDER EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282370	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293205	ENGINE OIL FILLER CAP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	303589	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294812	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294029	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299494	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREWM6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306702	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	316930	OIL SUMP ASSEMBLY	316930 OIL SUMP ASSEMBLY Bespoke Engine Number 0 - 431371;	-	1	Enquire
1	849084	OIL SUMP ASSEMBLY	849084 OIL SUMP ASSEMBLY Bespoke Engine Number 0 - zzzzzzzz;	-	1	Enquire
3	104280	MAGNETIC THREADED PLUG M22 X 1.5 ARRIVING SOON	104280 MAGNETIC THREADED PLUG M22 X 1.5 ARRIVING SOON	-	1	Enquire
4	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 ARRIVING SOON	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 ARRIVING SOON	-	1	Enquire
5	230171	OIL LEVEL DETECTOR	230171 OIL LEVEL DETECTOR	-	1	Enquire
6	282394	SCREWM6X18	282394 SCREWM6X18	-	2	Enquire
7	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	19	Enquire
8	282394	SCREWM6X18	282394 SCREWM6X18	-	2	Enquire
9	16165276	CIRCLIP	16165276 CIRCLIP	-	1	Enquire
10	291687	OIL SUMP SHIELD	291687 OIL SUMP SHIELD Bespoke Engine Number 0 - 431371;	-	1	Enquire
11	295634	SCREWM6X22	295634 SCREWM6X22	-	2	Enquire
12	315073	DIPSTICK	315073 DIPSTICK	-	1	Enquire
13	789110	OIL DIPSTICK HOLDER EXTENSION	789110 OIL DIPSTICK HOLDER EXTENSION Bespoke Assembly Number 6035538 - 99999999;	-	1	Enquire
14	233600	SCREWM6X12	233600 SCREWM6X12	-	1	Enquire
15	282370	O.R. GASKET	282370 O.R. GASKET	-	1	Enquire
16	293205	ENGINE OIL FILLER CAP ARRIVING SOON	293205 ENGINE OIL FILLER CAP ARRIVING SOON	-	1	Enquire
17	303589	STUD	303589 STUD	-	4	Enquire
18	294812	BUSHING	294812 BUSHING	-	1	Enquire
19	294029	BUSHING	294029 BUSHING	-	2	Enquire
20	299494	BRACKET	299494 BRACKET PLEASE ORDER ONLY FOR ENGINE WITH OIL SUMP ASSY PN 316930 INSTALLED; Bespoke Engine Number 0 - 431371;	-	1	Enquire
21	282394	SCREWM6X18	282394 SCREWM6X18 PLEASE ORDER ONLY FOR ENGINE WITH OIL SUMP ASSY PN 316930 INSTALLED; Bespoke Engine Number 0 - 431371;	-	2	Enquire
22	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	-	1	Enquire
23	306702	O.R. GASKET	306702 O.R. GASKET	-	2	Enquire
