Additional Air System

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 0150

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - ADDITIONAL AIR SYSTEM (01503)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670104428 UNDERBODY VACUUM PIPE - 2nd SECTION Enquire To Order
Photo Part No Description Price (each) Stock
675000141 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
675000356 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
670032177 UNDERBODY VACUUM PIPE - 3rd SECTION Enquire To Order
Photo Part No Description Price (each) Stock
670002843 ON/OFF SOLENOID VALVE Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
670032179 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670032178 UNDERBODY VACUUM PIPE - 4th SECTION Enquire To Order
Photo Part No Description Price (each) Stock
675000356 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
670036460 UNDERBODY RH VACUUM PIPE - 5th SECTION Enquire To Order
Photo Part No Description Price (each) Stock
670036461 UNDERBODY LH VACUUM PIPE - 5th SECTION Enquire To Order
Photo Part No Description Price (each) Stock
675000447 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675000441 WASHERD.6-21X1 Enquire To Order
View All

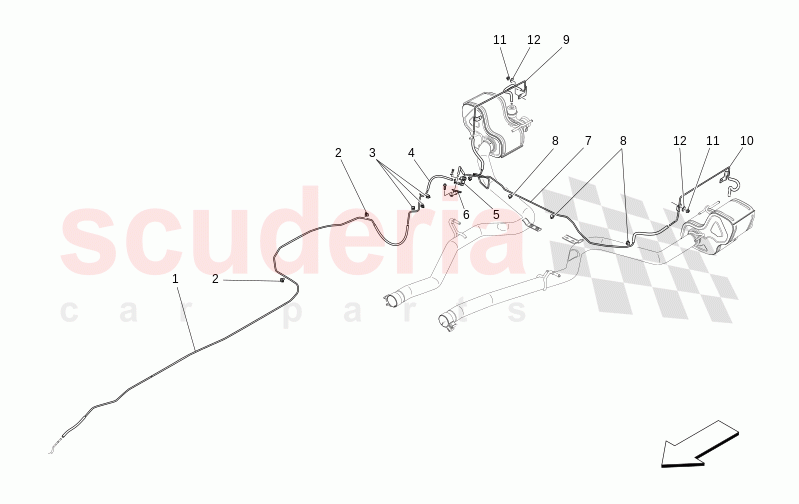

ADDITIONAL AIR SYSTEM of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670104428
UNDERBODY VACUUM PIPE - 2nd SECTION
Bespoke Assembly Number 6053787 - 99999999; 		- 1 Enquire
2 675000141
CLIP 		- 10 Enquire
3 675000356
CLIP 		- 5 Enquire
4 670032177
UNDERBODY VACUUM PIPE - 3rd SECTION 		- 1 Enquire
5 670002843
ON/OFF SOLENOID VALVE
ARRIVING SOON 		- 1 Enquire
6 670032179
BRACKET 		- 1 Enquire
7 670032178
UNDERBODY VACUUM PIPE - 4th SECTION 		- 1 Enquire
8 675000356
CLIP 		- 4 Enquire
9 670036460
UNDERBODY RH VACUUM PIPE - 5th SECTION 		- 1 Enquire
10 670036461
UNDERBODY LH VACUUM PIPE - 5th SECTION 		- 1 Enquire
11 675000447
NUT 		- 4 Enquire
12 675000441
WASHERD.6-21X1 		- 4 Enquire
