Lh Cylinder Head

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 0121

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - LH CYLINDER HEAD (01212)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
305771 LH HEAD ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
324017 LH HEAD GASKET Enquire To Order
302852 LH HEAD GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10839510 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
292870 UNION Enquire To Order
Photo Part No Description Price (each) Stock
670317515 RHD INTERIOR CARPET Enquire To Order
Photo Part No Description Price (each) Stock
214412 STUD Enquire To Order
Photo Part No Description Price (each) Stock
675000106 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
670164716 DASHBOARD LHD TORTORA Enquire To Order
Photo Part No Description Price (each) Stock
272605 STUD Enquire To Order
Photo Part No Description Price (each) Stock
201599 SCREWM6X20 Enquire To Order
Photo Part No Description Price (each) Stock
243719 SCREWM6X35 Enquire To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
318090 LH CYLINDER HEAD COVER Enquire To Order
Photo Part No Description Price (each) Stock
292326 PIN Enquire To Order
Photo Part No Description Price (each) Stock
303025 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
296759 SCREWM6X45 Enquire To Order
Photo Part No Description Price (each) Stock
296075 WASHER D.13X5.8 Enquire To Order
Photo Part No Description Price (each) Stock
670316512 PILLAR COVER Enquire To Order
Photo Part No Description Price (each) Stock
306857 OIL PRESSURE CHECK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
302374 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14304221 SCREWM5X16 Enquire To Order
Photo Part No Description Price (each) Stock
321187 CYLINDER HEAD NUT & WASHER KIT Enquire To Order
Photo Part No Description Price (each) Stock
315775 WASHER Enquire To Order
View All

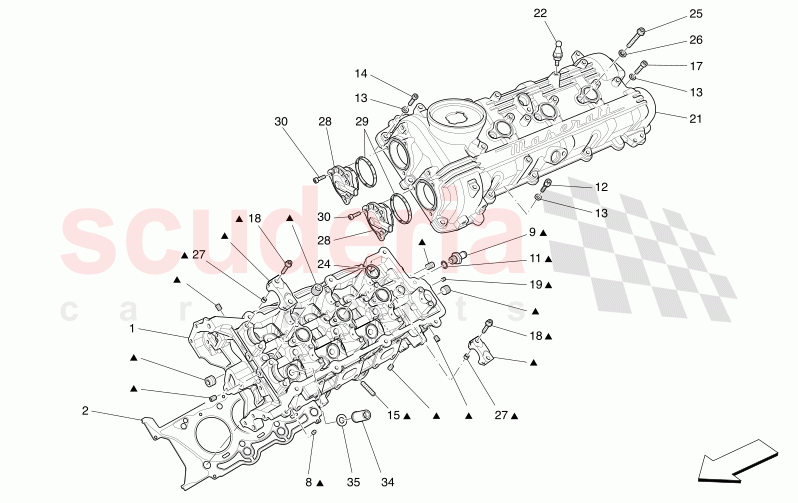

LH CYLINDER HEAD of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 305771
LH HEAD ASSEMBLY 		- 1 Enquire
2 324017
LH HEAD GASKET
Bespoke Engine Number 349486 - zzzzzzzz; 		- 1 Enquire

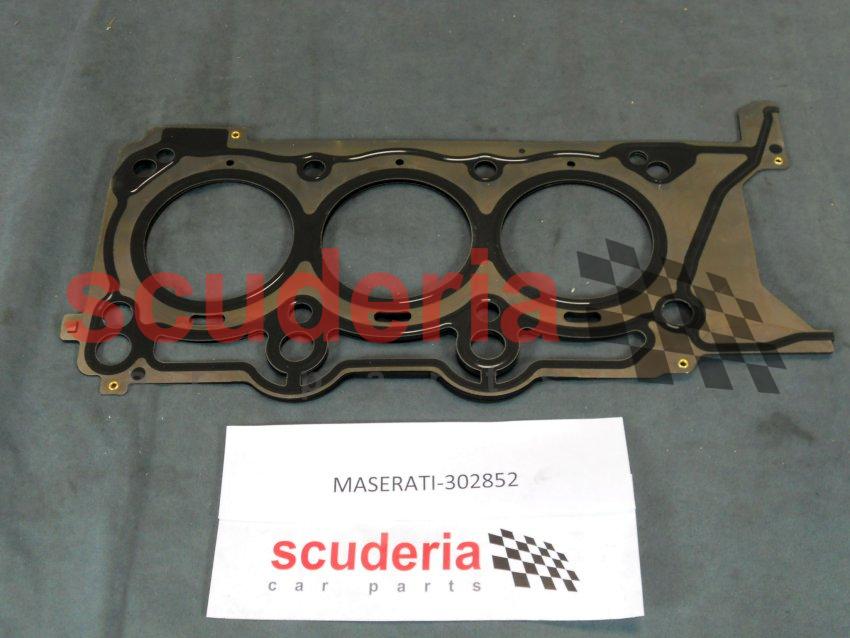

2 302852
LH HEAD GASKET
Bespoke Engine Number 0 - 349485; 		- 1 Enquire
8 10839510
CENTERING DOWEL 		- 2 Enquire
9 292870
UNION 		- 1 Enquire
11 670317515
RHD INTERIOR CARPET 		- 1 Enquire
12 214412
STUD 		- 1 Enquire
13 675000106
WASHER 		- 10 Enquire
14 670164716
DASHBOARD LHD TORTORA 		- 7 Enquire
15 272605
STUD 		- 6 Enquire
17 201599
SCREWM6X20 		- 1 Enquire
18 243719
SCREWM6X35 		- 18 Enquire
19 199760
THREADED PLUG 		- 1 Enquire
21 318090
LH CYLINDER HEAD COVER 		- 1 Enquire
22 292326
PIN 		- 2 Enquire
24 303025
GASKET 		- 3 Enquire
25 296759
SCREWM6X45 		- 3 Enquire
26 296075
WASHER D.13X5.8 		- 3 Enquire
27 670316512
PILLAR COVER 		- 18 Enquire
28 306857
OIL PRESSURE CHECK VALVE 		- 2 Enquire
29 302374
GASKET 		- 2 Enquire
30 14304221
SCREWM5X16 		- 6 Enquire
34 321187
CYLINDER HEAD NUT & WASHER KIT 		- 8 Enquire
35 315775
WASHER 		- 8 Enquire
