FUEL VAPOUR RECIRCULATION SYSTEM of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

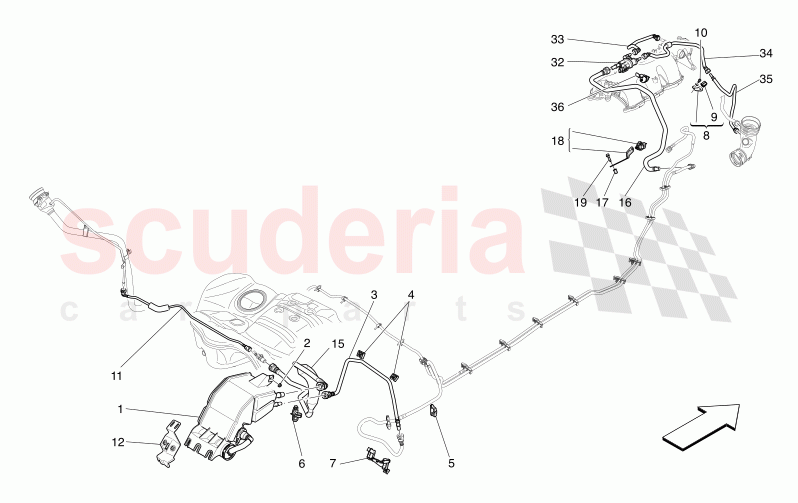

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - FUEL VAPOUR RECIRCULATION SYSTEM (01441)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670033287	FUEL VAPOUR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000114	NUT	Enquire	To Order
	675000095	NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033294	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033289	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000790	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670100038	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031947	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000132	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000191	SCREWM6X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033572	VAPOUR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034699	REAR BRACKET	Enquire	To Order
	670217138	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033274	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105047	PIPE BETWEEN UNION AND INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000576	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104126	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000242	SCREWM6X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670162028	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033129	PIPE FROM SOLENOID VALVE TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033130	PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105048	VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033127	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670033287	FUEL VAPOUR FILTER	670033287 FUEL VAPOUR FILTER Not available with: CHINA 6B EMISSION; EU AU CN UK JP ME JRH IN SA;	-	1	Enquire
2	675000114	NUT	675000114 NUT Bespoke Assembly Number 0 - 6097168;	-	1	Enquire
2	675000095	NUT M6	675000095 NUT M6 Bespoke Assembly Number 6097169 - 99999999;	-	5	Enquire
3	670033294	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	670033294 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	-	1	Enquire
4	670033289	CLIP	670033289 CLIP	-	2	Enquire
5	675000790	CLIP	675000790 CLIP Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
6	670100038	BRACKET	670100038 BRACKET	-	1	Enquire
7	670031947	CLIP	670031947 CLIP	-	1	Enquire
9	675000132	CLIP	675000132 CLIP	-	1	Enquire
10	675000191	SCREWM6X14	675000191 SCREWM6X14	-	1	Enquire
11	670033572	VAPOUR PIPE	670033572 VAPOUR PIPE	-	1	Enquire
12	670034699	REAR BRACKET	670034699 REAR BRACKET Bespoke Assembly Number 0 - 6097168;	-	1	Enquire
12	670217138	REAR BRACKET	670217138 REAR BRACKET Bespoke Assembly Number 6097169 - 99999999;	-	1	Enquire
15	670033274	VENT PIPE	670033274 VENT PIPE	-	1	Enquire
16	670105047	PIPE BETWEEN UNION AND INTAKE MANIFOLD	670105047 PIPE BETWEEN UNION AND INTAKE MANIFOLD Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
17	675000576	RIVET	675000576 RIVET	-	2	Enquire
18	670104126	BRACKET ASSEMBLY	670104126 BRACKET ASSEMBLY Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
19	675000242	SCREWM6X25	675000242 SCREWM6X25	-	2	Enquire
32	670162028	SOLENOID VALVE	670162028 SOLENOID VALVE	-	1	Enquire
33	670033129	PIPE FROM SOLENOID VALVE TO ENGINE	670033129 PIPE FROM SOLENOID VALVE TO ENGINE	-	1	Enquire
34	670033130	PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE	670033130 PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE	-	1	Enquire
35	670105048	VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE	670105048 VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
36	670033127	BRACKET	670033127 BRACKET	-	1	Enquire
