CRANKCASE of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

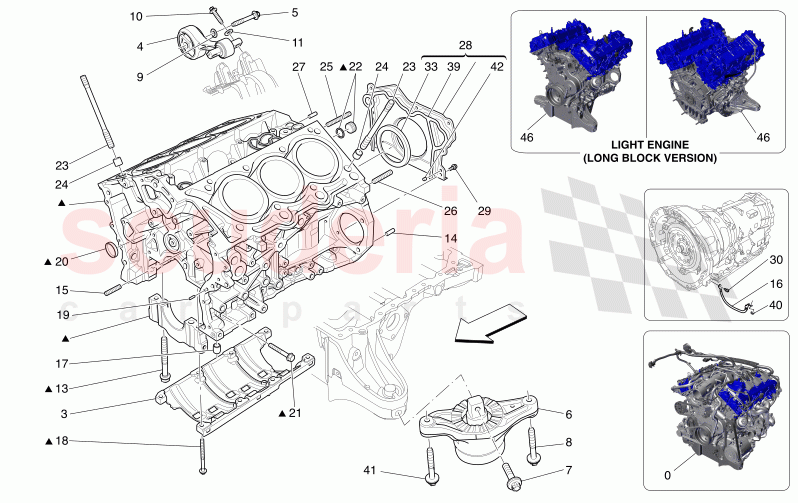

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - CRANKCASE (01003)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	767001	ENGINE BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275361	BASE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032042	HIGH LINK ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007895	SCREW M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

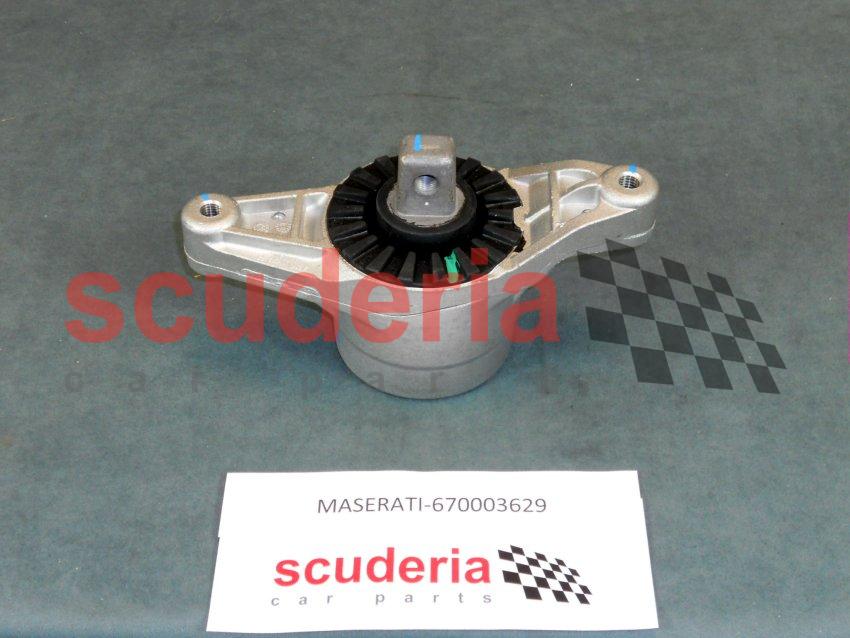

	670003629	LH ENGINE BUSHING	Enquire	ARRIVING SOON

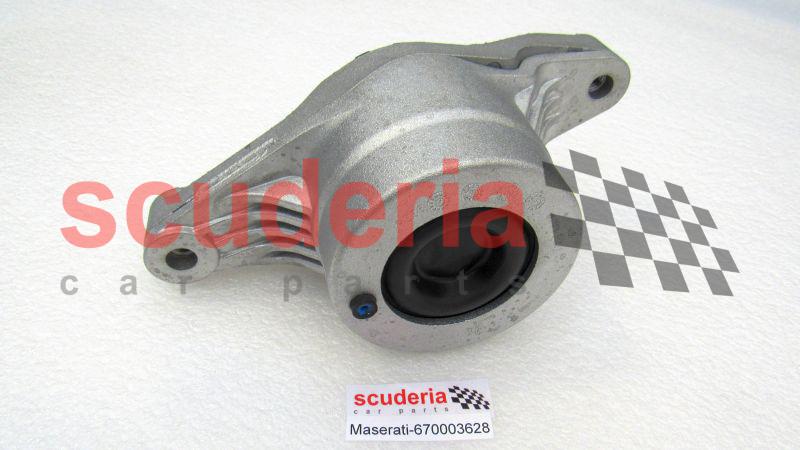

	670003628	RH ENGINE BUSHING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670038507	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670103984	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000096	WASHERD.12.2-28X3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035412	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000247	WASHERD.10.2-25X3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10337710	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007404	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300476	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279025	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282607	SCREWM8X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313719	THREADED PLUG WITH COPPER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306027	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303590	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303589	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10337710	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327702	REAR PLATE	Enquire	To Order
	335495	REAR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000383	SCREWM8X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334627	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326558	CRANKSHAFT REAR PLATE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000505	NUTM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035588	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670316512	PILLAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015480	LIGHT ENGINE (LONG BLOCK VERSION)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	670105672	ENGINE ASSEMBLY	670105672 ENGINE ASSEMBLY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION - FOR VEHICLES WITH OLD ENGINE SERIAL NUMBER INCLUDED BETWEEN 441894 AND 473146 RANGE, PLEASE ORDER ALSO PN 670031951; Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
1	767001	ENGINE BLOCK	767001 ENGINE BLOCK	-	1	Enquire
3	275361	BASE SHIELD	275361 BASE SHIELD	-	1	Enquire
4	670032042	HIGH LINK ROD	670032042 HIGH LINK ROD	-	1	Enquire
5	670007895	SCREW M12	670007895 SCREW M12	-	1	Enquire
6	670003629	LH ENGINE BUSHING ARRIVING SOON	670003629 LH ENGINE BUSHING ARRIVING SOON	-	1	Enquire
6	670003628	RH ENGINE BUSHING ARRIVING SOON	670003628 RH ENGINE BUSHING ARRIVING SOON	-	1	Enquire
7	670038507	SCREW	670038507 SCREW	-	2	Enquire
8	670103984	SCREW	670103984 SCREW Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
9	675000096	WASHERD.12.2-28X3	675000096 WASHERD.12.2-28X3	-	1	Enquire
10	670035412	SCREW	670035412 SCREW	-	2	Enquire
11	675000247	WASHERD.10.2-25X3	675000247 WASHERD.10.2-25X3	-	2	Enquire
14	10337710	STUD	10337710 STUD	-	2	Enquire
16	670007404	CABLE FOR ENGINE-FRAME EARTH	670007404 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
17	300476	CENTERING DOWEL	300476 CENTERING DOWEL	-	2	Enquire
19	279025	CENTERING DOWEL	279025 CENTERING DOWEL	-	2	Enquire
21	282607	SCREWM8X40	282607 SCREWM8X40	-	1	Enquire
22	313719	THREADED PLUG WITH COPPER WASHER	313719 THREADED PLUG WITH COPPER WASHER	-	1	Enquire
23	306027	STUD	306027 STUD	-	16	Enquire
24	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
25	303590	STUD	303590 STUD	-	1	Enquire
26	303589	STUD	303589 STUD	-	5	Enquire
27	10337710	STUD	10337710 STUD	-	2	Enquire
28	327702	REAR PLATE	327702 REAR PLATE Bespoke Engine Number 0 - 325650;	-	1	Enquire
28	335495	REAR PLATE	335495 REAR PLATE	-	1	Enquire
29	231617	SCREW M6 X 18	231617 SCREW M6 X 18	-	8	Enquire
30	675000383	SCREWM8X16	675000383 SCREWM8X16	-	1	Enquire
33	334627	SEAL RING	334627 SEAL RING	-	1	Enquire
39	326558	CRANKSHAFT REAR PLATE SEAL	326558 CRANKSHAFT REAR PLATE SEAL	-	1	Enquire
40	675000505	NUTM8	675000505 NUTM8	-	1	Enquire
41	670035588	SCREW	670035588 SCREW	-	2	Enquire
42	670316512	PILLAR COVER	670316512 PILLAR COVER	-	2	Enquire
46	673015480	LIGHT ENGINE (LONG BLOCK VERSION)	673015480 LIGHT ENGINE (LONG BLOCK VERSION) Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION;	-	1	Enquire
