COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - COOLING SYSTEM: NOURICE AND LINES (01714)

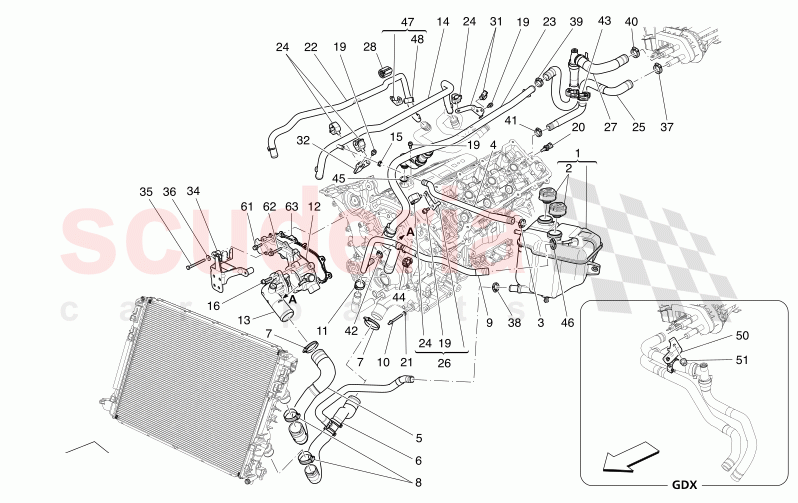

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670031651	ENGINE COOLANT RESERVOIR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670003408	HEADER TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000344	STRAP COLLAR D.17	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031952	SECONDARY VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031948	RADIATOR WATER INLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104916	WATER OUTLET SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11417670	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000345	SCREW COLLAR D.58	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031951	MAIN VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227281	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326846	CPL. CROSSOVER	Enquire	To Order
	291773	CPL. CROSSOVER	Enquire	To Order
	291773	CPL. CROSSOVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330424	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	882497	SECONDARY WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000373	COLLARD.12,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW M6 X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231616	SCREWM6X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	WATER TEMPERATURE SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000106	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296492	SECONDARY WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333706	WATER RETURN PIPE FROM OIL EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031945	HEATER WATER DELIVERY SLEEVE	Enquire	To Order
	670101985	HEATER WATER DELIVERY SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292354	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670101977	WATER RETURN SLEEVE FROM HEATER	Enquire	To Order
	670101986	WATER RETURN SLEEVE FROM HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298362	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300867	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287986	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	834094	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903424	SCREWM6X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHERD.6.4-16.3X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000334	COLLARD23,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000658	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000352	COLLARD.23	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000334	COLLARD23,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000371	COLLARD.18,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000757	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005922	RETAINING CLIP	Enquire	To Order
	670005924	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000019	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282370	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001916	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302126	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035534	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670270980	KICK PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291776	SCREWM6X25	Enquire	To Order
	231620	SCREW M6 X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREWM6X45	Enquire	To Order
	291771	SCREW M6 X 45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280912	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670031651	ENGINE COOLANT RESERVOIR ARRIVING SOON	670031651 ENGINE COOLANT RESERVOIR ARRIVING SOON	-	1	Enquire
2	670003408	HEADER TANK CAP	670003408 HEADER TANK CAP	-	2	Enquire
3	675000344	STRAP COLLAR D.17	675000344 STRAP COLLAR D.17	-	1	Enquire
4	670031952	SECONDARY VENT PIPE	670031952 SECONDARY VENT PIPE	-	1	Enquire
5	670031948	RADIATOR WATER INLET PIPE	670031948 RADIATOR WATER INLET PIPE	-	1	Enquire
6	670104916	WATER OUTLET SLEEVE	670104916 WATER OUTLET SLEEVE Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
7	11417670	SCREW COLLAR	11417670 SCREW COLLAR	-	2	Enquire
8	675000345	SCREW COLLAR D.58	675000345 SCREW COLLAR D.58	-	2	Enquire
9	670031951	MAIN VENT PIPE	670031951 MAIN VENT PIPE FOR ENGINE SERIAL NUMBER INCLUDED BETWEEN 441894 AND 473146 RANGE, PLEASE ORDER PN 670001322; Bespoke Assembly Number 6079400 - 99999999;	-	1	Enquire
10	227281	STUD	227281 STUD	-	1	Enquire
11	262109	COLLAR	262109 COLLAR	-	1	Enquire
12	326846	CPL. CROSSOVER	326846 CPL. CROSSOVER PLASTIC - NOT INCLUDED WITH CPL TIMING COVER 321255 AND 878658, PLEASE ORDER SEPARATELY; Bespoke Engine Number 441894 - 473146;	-	1	Enquire
12	291773	CPL. CROSSOVER	291773 CPL. CROSSOVER ALUMINUM - INCLUDED WITH THE TIMING COVER, TABLE 1.24; Bespoke Engine Number 0 - 441893;	-	1	Enquire
12	291773	CPL. CROSSOVER	291773 CPL. CROSSOVER ALUMINUM - INCLUDED WITH THE TIMING COVER, TABLE 1.24. IF IN REPLACEMENT OF THE PLASTIC CROSSOVER ALSO ORDER THE SCREWS 61-62 AND THE GASKET 63; Bespoke Engine Number 441894 - 473146;	-	1	Enquire
13	330424	THERMOSTAT	330424 THERMOSTAT	-	1	Enquire
14	882497	SECONDARY WATER PIPE	882497 SECONDARY WATER PIPE Bespoke Engine Number 553174 - ZZZZZZZZ;	-	1	Enquire
15	675000373	COLLARD.12,5	675000373 COLLARD.12,5	-	1	Enquire
16	231620	SCREW M6 X 25	231620 SCREW M6 X 25	-	2	Enquire
19	231616	SCREWM6X14	231616 SCREWM6X14	-	4	Enquire
20	180137	WATER TEMPERATURE SENSOR ARRIVING SOON	180137 WATER TEMPERATURE SENSOR ARRIVING SOON	-	1	Enquire
21	675000106	WASHER	675000106 WASHER	-	1	Enquire
22	296492	SECONDARY WATER PIPE	296492 SECONDARY WATER PIPE	-	1	Enquire
23	333706	WATER RETURN PIPE FROM OIL EXCHANGER	333706 WATER RETURN PIPE FROM OIL EXCHANGER Bespoke Assembly Number 6035538 - 99999999;	-	1	Enquire
24	259508	CLIP	259508 CLIP	-	5	Enquire
25	670031945	HEATER WATER DELIVERY SLEEVE	670031945 HEATER WATER DELIVERY SLEEVE Not available with: FOUR-ZONE AUTOMATIC CLIMA; EU CN US CD JP ME KO;	-	1	Enquire
25	670101985	HEATER WATER DELIVERY SLEEVE	670101985 HEATER WATER DELIVERY SLEEVE Bespoke Assembly Number 6035538 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
26	292354	BRACKET ASSEMBLY	292354 BRACKET ASSEMBLY	-	1	Enquire
27	670101977	WATER RETURN SLEEVE FROM HEATER	670101977 WATER RETURN SLEEVE FROM HEATER Bespoke Assembly Number 6035538 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; EU CN US CD JP ME KO;	-	1	Enquire
27	670101986	WATER RETURN SLEEVE FROM HEATER	670101986 WATER RETURN SLEEVE FROM HEATER Bespoke Assembly Number 6035538 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
28	298362	RUBBER	298362 RUBBER	-	1	Enquire
31	300867	BRACKET	300867 BRACKET	-	1	Enquire
32	287986	BRACKET	287986 BRACKET	-	1	Enquire
34	834094	BRACKET	834094 BRACKET	-	1	Enquire
35	10903424	SCREWM6X45	10903424 SCREWM6X45	-	2	Enquire
36	14498824	WASHERD.6.4-16.3X1	14498824 WASHERD.6.4-16.3X1	-	2	Enquire
37	675000334	COLLARD23,5	675000334 COLLARD23,5 Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
38	675000658	COLLAR	675000658 COLLAR	-	1	Enquire
39	675000352	COLLARD.23	675000352 COLLARD.23 Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
40	675000334	COLLARD23,5	675000334 COLLARD23,5 Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
41	675000371	COLLARD.18,5	675000371 COLLARD.18,5 Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
42	675000757	COLLAR	675000757 COLLAR	-	1	Enquire
43	670005922	RETAINING CLIP	670005922 RETAINING CLIP Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
43	670005924	RETAINING CLIP	670005924 RETAINING CLIP Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
44	675000019	RETAINING CLIP	675000019 RETAINING CLIP Not available with: FOUR-ZONE AUTOMATIC CLIMA;	-	1	Enquire
45	282370	O.R. GASKET	282370 O.R. GASKET	-	1	Enquire
46	675001916	COLLAR	675001916 COLLAR	-	1	Enquire
47	302126	BRACKET ASSEMBLY	302126 BRACKET ASSEMBLY	-	1	Enquire
48	259508	CLIP	259508 CLIP	-	1	Enquire
50	670035534	BRACKET ASSEMBLY	670035534 BRACKET ASSEMBLY Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
51	670270980	KICK PLATE	670270980 KICK PLATE Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
61	291776	SCREWM6X25	291776 SCREWM6X25 NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773;	-	4	Enquire
61	231620	SCREW M6 X 25	231620 SCREW M6 X 25 INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER); Bespoke Engine Number 441894 - 473146;	-	4	Enquire
62	231624	SCREWM6X45	231624 SCREWM6X45 INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER); Bespoke Engine Number 441894 - 473146;	-	7	Enquire
62	291771	SCREW M6 X 45	291771 SCREW M6 X 45 NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773;	-	7	Enquire
63	280912	GASKET	280912 GASKET ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773 - NOT INCLUDED, ORDER SEPARATELY;	-	1	Enquire
