COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

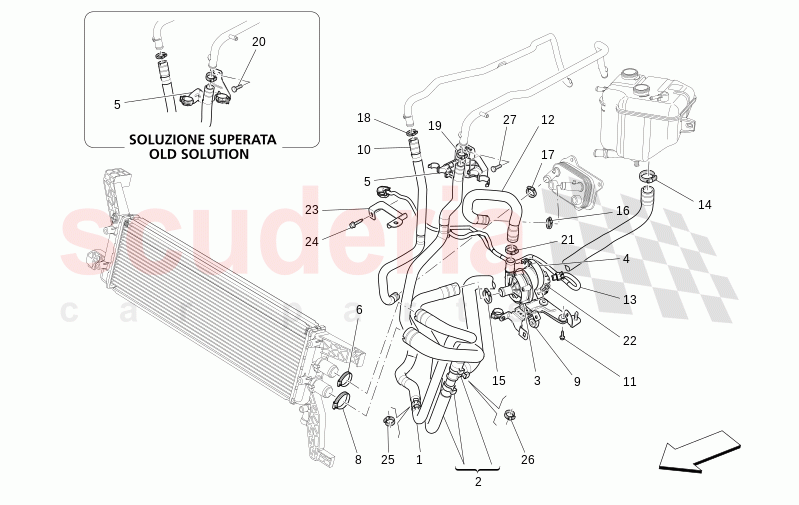

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - COOLING SYSTEM: NOURICE AND LINES (01716)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670031955	PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104917	PIPE BETWEEN SECONDARY RADIATOR AND PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005347	ELECTRIC WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670008886	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037040	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000658	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11417670	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670104778	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670101979	WATER DELIVERY PIPE FROM PUMP TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000088	SCREWM6X22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037865	WATER PUMP CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11417670	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000658	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000372	COLLARD.20,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000372	COLLARD.20,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000087	SCREWM6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000658	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000364	SCREWM6X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000180	SCREWM6X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000319	COLLARD.22,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000088	SCREWM6X22	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670031955	PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	670031955 PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	-	1	Enquire
2	670104917	PIPE BETWEEN SECONDARY RADIATOR AND PUMP	670104917 PIPE BETWEEN SECONDARY RADIATOR AND PUMP Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
3	670005347	ELECTRIC WATER PUMP	670005347 ELECTRIC WATER PUMP	-	1	Enquire
4	670008886	CLAMP	670008886 CLAMP	-	1	Enquire
5	670037040	BRACKET	670037040 BRACKET	-	1	Enquire
6	675000658	COLLAR	675000658 COLLAR	-	1	Enquire
8	11417670	SCREW COLLAR	11417670 SCREW COLLAR	-	1	Enquire
9	670104778	BRACKET	670104778 BRACKET	-	1	Enquire
10	670101979	WATER DELIVERY PIPE FROM PUMP TO ENGINE	670101979 WATER DELIVERY PIPE FROM PUMP TO ENGINE Bespoke Assembly Number 6035538 - 99999999;	-	1	Enquire
11	675000088	SCREWM6X22	675000088 SCREWM6X22	-	3	Enquire
13	670037865	WATER PUMP CABLE	670037865 WATER PUMP CABLE Bespoke Assembly Number 6035538 - 99999999;	-	1	Enquire
14	11417670	SCREW COLLAR	11417670 SCREW COLLAR	-	1	Enquire
15	675000658	COLLAR	675000658 COLLAR	-	1	Enquire
16	675000372	COLLARD.20,5	675000372 COLLARD.20,5	-	1	Enquire
17	675000319	COLLARD.22,5	675000319 COLLARD.22,5	-	1	Enquire
18	675000372	COLLARD.20,5	675000372 COLLARD.20,5	-	1	Enquire
19	675000319	COLLARD.22,5	675000319 COLLARD.22,5	-	1	Enquire
20	675000087	SCREWM6X16	675000087 SCREWM6X16	-	2	Enquire
21	675000658	COLLAR	675000658 COLLAR	-	1	Enquire
22	675000364	SCREWM6X14	675000364 SCREWM6X14	-	1	Enquire
24	675000180	SCREWM6X14	675000180 SCREWM6X14	-	1	Enquire
25	675000319	COLLARD.22,5	675000319 COLLARD.22,5	-	2	Enquire
26	675000319	COLLARD.22,5	675000319 COLLARD.22,5	-	3	Enquire
27	675000088	SCREWM6X22	675000088 SCREWM6X22	-	2	Enquire
