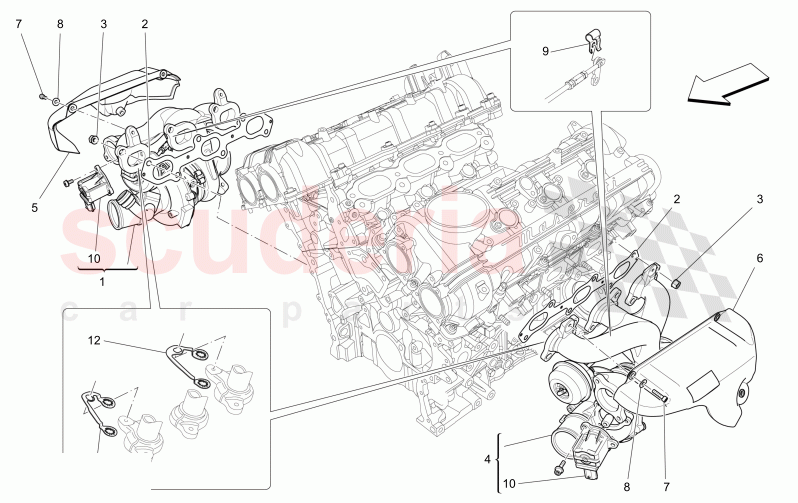

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	275674	TURBO GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210971	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670106010	RH EXHAUST MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002873	LH EXHAUST MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670310895	DASHBOARD CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670293099	EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876014	PLATE CYL. 3-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876015	PLATE CYL. 1-4	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	837668	RH TURBOCHARGER	837668 RH TURBOCHARGER Please order also PN 319388;	-	1	Enquire

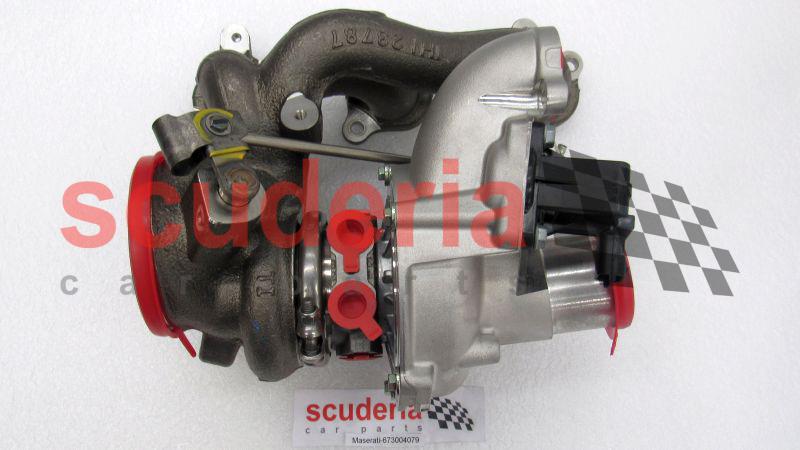

1	673004079	RH TURBOCHARGER KIT	673004079 RH TURBOCHARGER KIT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Engine Number 0 - 446835;	-	1	Enquire

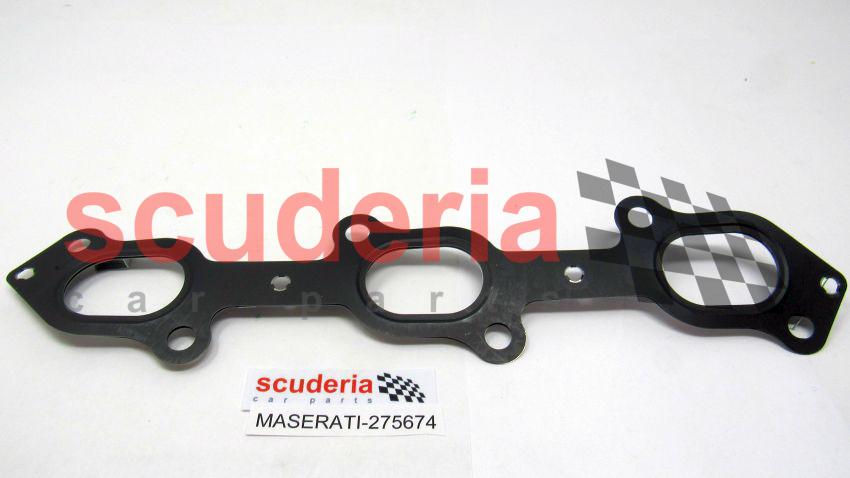

2	275674	TURBO GASKET	275674 TURBO GASKET	-	2	Enquire
3	210971	NUT	210971 NUT	-	12	Enquire

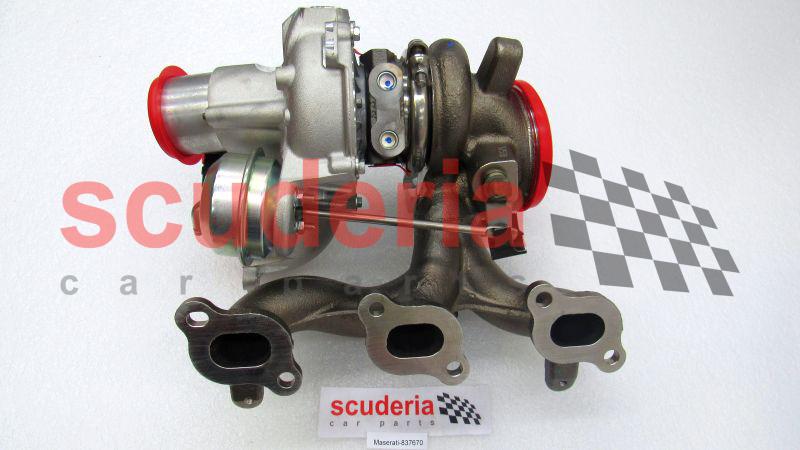

4	837670	LH TURBOCHARGER	837670 LH TURBOCHARGER Please order also PN 310809;	-	1	Enquire

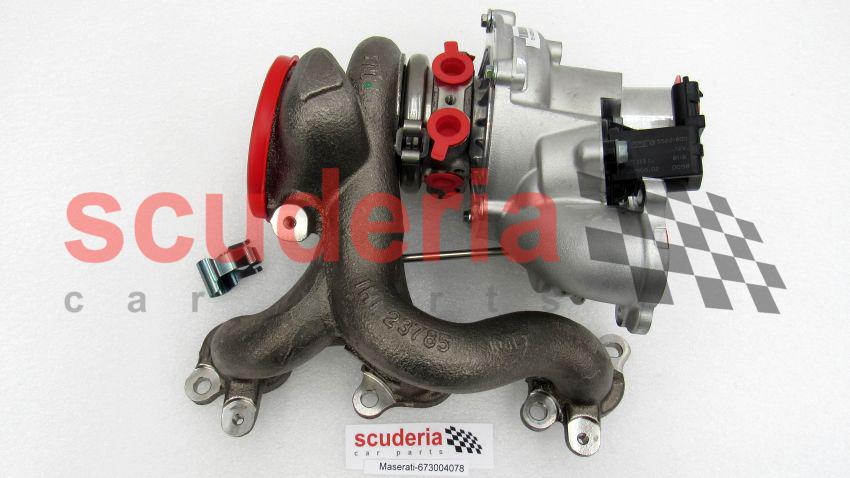

4	673004078	LH TURBOCHARGER KIT	673004078 LH TURBOCHARGER KIT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Engine Number 0 - 446835;	-	1	Enquire
5	670106010	RH EXHAUST MANIFOLD HEAT SHIELD	670106010 RH EXHAUST MANIFOLD HEAT SHIELD Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
6	670002873	LH EXHAUST MANIFOLD HEAT SHIELD	670002873 LH EXHAUST MANIFOLD HEAT SHIELD	-	1	Enquire
7	670310895	DASHBOARD CABLE	670310895 DASHBOARD CABLE	-	6	Enquire
8	670293099	EXPANSION TANK	670293099 EXPANSION TANK	-	6	Enquire
9	310809	LH WASTE GATE CLIP	310809 LH WASTE GATE CLIP	-	1	Enquire
9	319388	RH WASTE GATE CLIP	319388 RH WASTE GATE CLIP	-	1	Enquire
10	673003969	BY-PASS ELECTRONIC VALVE	673003969 BY-PASS ELECTRONIC VALVE Bespoke Engine Number 0 - 446835;	-	2	Enquire
10	673010358	BY-PASS ELECTRONIC VALVE	673010358 BY-PASS ELECTRONIC VALVE	-	2	Enquire
11	876014	PLATE CYL. 3-6	876014 PLATE CYL. 3-6	-	2	Enquire
12	876015	PLATE CYL. 1-4	876015 PLATE CYL. 1-4	-	2	Enquire
