STEERING RACK AND HYDRAULIC STEERING PUMP (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

Maserati 4200 Spyder (2005-2007) CC - STEERING RACK AND HYDRAULIC STEERING PUMP (Available with: "Spyder 90th Anniversary" Version)

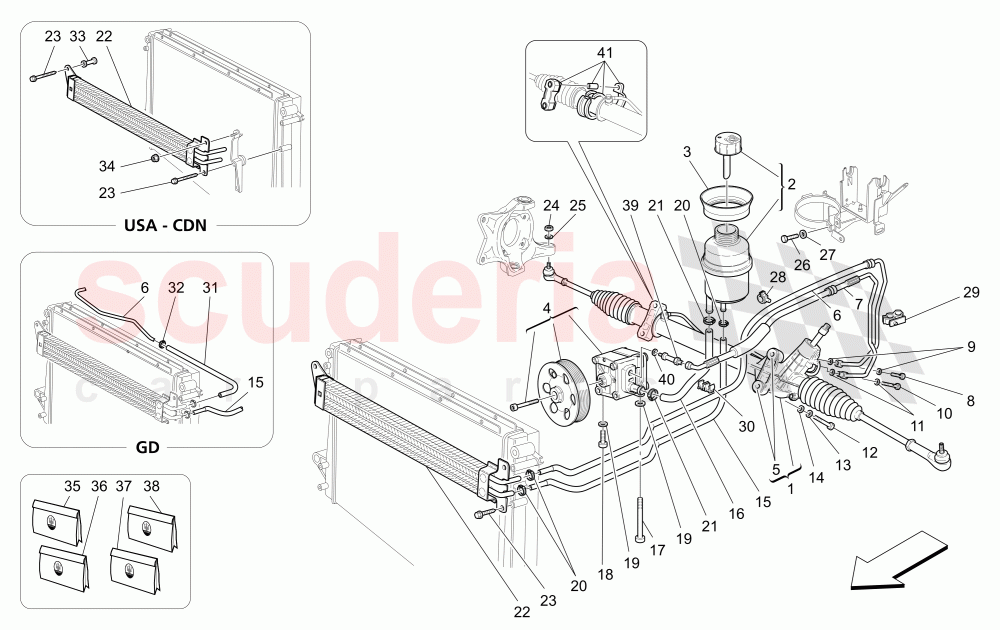

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	207276	STEERING RACK WITH POWER STEERING	Enquire	To Order
	207275	STEERING RACK WITH POWER STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270104	OIL TANK FOR HYDRAULIC POWER STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179301	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187920	HYDRAULIC STEERING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138228	STEERING RACK SILENTBLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188970	PIPE FROM STEERING BOX TO EXCHANGER	Enquire	To Order
	193191	PIPE FROM STEERING BOX TO EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212002	PIPE FROM PUMP TO STEERING RACK	Enquire	To Order
	193190	PIPE FROM PUMP TO STEERING RACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207273	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207274	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206926	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11198374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12641024	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188969	PIPE FROM EXCHANGER TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198482	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	Enquire	To Order
	192205	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180604	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198519	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231013	POWER STEERING EXCHANGER	Enquire	To Order
	231013	POWER STEERING EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15698504	SCREW	Enquire	To Order
	15699804	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14047421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREWM6X50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523401	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14631387	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177805	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190953	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193192	SLEEVE FROM HYDRODRIVE TO EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193719	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001703	PIPES REPLACEMENT KIT FOR STEERING RACK	Enquire	To Order
	980001704	PIPES REPLACEMENT KIT FOR STEERING RACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001705	TIE ROD REPLACEMENT KIT FOR STEERING RACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001706	Ball Joint Replacement Kit for Steering Rack	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001707	Gaitor Kit (Steering Rack)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	212083	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000691	GASKET	Enquire	To Order
	675000691	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138275	STEERING RACK FIXING KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	207276	STEERING RACK WITH POWER STEERING	207276 STEERING RACK WITH POWER STEERING Not for RHD	-	1	Enquire
1	207275	STEERING RACK WITH POWER STEERING	207275 STEERING RACK WITH POWER STEERING Valid for RHD	-	1	Enquire
2	270104	OIL TANK FOR HYDRAULIC POWER STEERING	270104 OIL TANK FOR HYDRAULIC POWER STEERING	-	1	Enquire
3	179301	RING	179301 RING	-	1	Enquire
4	187920	HYDRAULIC STEERING PUMP	187920 HYDRAULIC STEERING PUMP	-	1	Enquire
5	980138228	STEERING RACK SILENTBLOCK	980138228 STEERING RACK SILENTBLOCK	-	4	Enquire
6	188970	PIPE FROM STEERING BOX TO EXCHANGER	188970 PIPE FROM STEERING BOX TO EXCHANGER Not for RHD	-	1	Enquire
6	193191	PIPE FROM STEERING BOX TO EXCHANGER	193191 PIPE FROM STEERING BOX TO EXCHANGER Valid for RHD	-	1	Enquire
7	212002	PIPE FROM PUMP TO STEERING RACK	212002 PIPE FROM PUMP TO STEERING RACK Not for RHD	-	1	Enquire
7	193190	PIPE FROM PUMP TO STEERING RACK	193190 PIPE FROM PUMP TO STEERING RACK Valid for RHD	-	1	Enquire
8	207273	UNION	207273 UNION	-	1	Enquire
9	10298460	Gasket	10298460 Gasket	-	2	Enquire
10	207274	UNION	207274 UNION	-	1	Enquire
11	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
12	206926	SCREW	206926 SCREW	-	4	Enquire
13	11198374	WASHER	11198374 WASHER	-	4	Enquire
14	12641024	WASHER	12641024 WASHER	-	4	Enquire
15	188969	PIPE FROM EXCHANGER TO TANK	188969 PIPE FROM EXCHANGER TO TANK	-	1	Enquire
16	198482	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	198482 PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP Not for RHD	-	1	Enquire
16	192205	PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP	192205 PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP Valid for RHD	-	1	Enquire
17	180604	SCREW	180604 SCREW	-	1	Enquire
18	198519	SCREW	198519 SCREW	-	1	Enquire
19	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	-	2	Enquire
20	262109	COLLAR	262109 COLLAR	-	3	Enquire
21	13000490	SCREW COLLAR	13000490 SCREW COLLAR	-	2	Enquire
22	231013	POWER STEERING EXCHANGER	231013 POWER STEERING EXCHANGER	-	1	Enquire
22	231013	POWER STEERING EXCHANGER	231013 POWER STEERING EXCHANGER Valid for USA and CDN	-	1	Enquire
23	15698504	SCREW	15698504 SCREW Valid for USA and CDN	-	2	Enquire
23	15699804	SCREW	15699804 SCREW Not for USA and CDN	-	3	Enquire
24	14047421	NUT	14047421 NUT	-	2	Enquire
25	12626224	WASHER	12626224 WASHER	-	2	Enquire
26	231625	SCREWM6X50	231625 SCREWM6X50	-	1	Enquire
27	10523401	WASHER	10523401 WASHER	-	1	Enquire
28	14631387	CLIP	14631387 CLIP	-	1	Enquire
29	177805	CLIP	177805 CLIP	-	1	Enquire
30	190953	CLIP	190953 CLIP	-	1	Enquire
31	193192	SLEEVE FROM HYDRODRIVE TO EXCHANGER	193192 SLEEVE FROM HYDRODRIVE TO EXCHANGER Valid for RHD	-	1	Enquire
32	262109	COLLAR	262109 COLLAR Valid for RHD	-	1	Enquire
33	193719	SPACER	193719 SPACER Valid for USA and CDN	-	1	Enquire
34	14040614	NUT	14040614 NUT Valid for USA and CDN	-	1	Enquire
35	980001703	PIPES REPLACEMENT KIT FOR STEERING RACK	980001703 PIPES REPLACEMENT KIT FOR STEERING RACK Not for RHD	-	1	Enquire
35	980001704	PIPES REPLACEMENT KIT FOR STEERING RACK	980001704 PIPES REPLACEMENT KIT FOR STEERING RACK Valid for RHD	-	1	Enquire
36	980001705	TIE ROD REPLACEMENT KIT FOR STEERING RACK	980001705 TIE ROD REPLACEMENT KIT FOR STEERING RACK	-	1	Enquire
37	980001706	Ball Joint Replacement Kit for Steering Rack	980001706 Ball Joint Replacement Kit for Steering Rack	-	2	Enquire
38	980001707	Gaitor Kit (Steering Rack) ARRIVING SOON	980001707 Gaitor Kit (Steering Rack) ARRIVING SOON	-	1	Enquire
39	212083	UNION	212083 UNION Not for RHD	-	1	Enquire
40	675000691	GASKET	675000691 GASKET Not for RHD	-	1	Enquire
40	675000691	GASKET	675000691 GASKET Not for RHD	-	1	Enquire
41	980138275	STEERING RACK FIXING KIT	980138275 STEERING RACK FIXING KIT	-	1	Enquire
