Name: BRAKING SYSTEM
Rating: 5.0 (1 reviews)

BRAKING SYSTEM of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

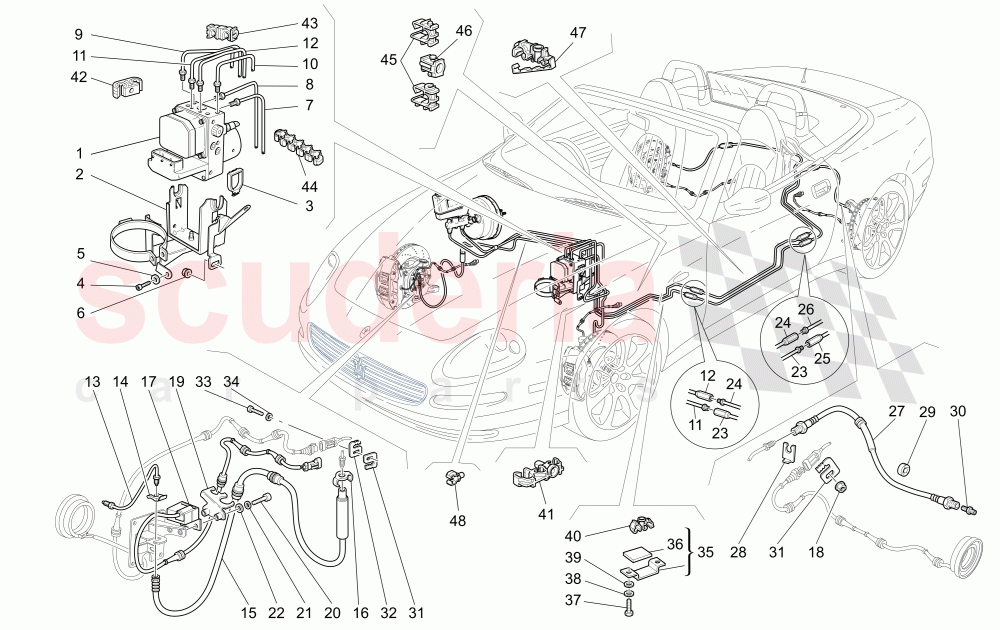

Maserati 4200 Spyder (2005-2007) CC - BRAKING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	198983	HYDRAULIC GROUP	$4,290.29	To Order

Photo	Part No	Description	Price (each)	Stock
	195570	CONTROL UNIT FIXING BRACKET	$103.56	To Order

Photo	Part No	Description	Price (each)	Stock
	193877	CLIP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	207998	BRAKE PIPE FROM ABS CENTER UNITTO L.H. FRONTFLEXIBLE PIPE	$19.82	To Order

Photo	Part No	Description	Price (each)	Stock
	208018	RH FRONT BRAKE PIPE	$51.30	To Order

Photo	Part No	Description	Price (each)	Stock
	208020	FRONT BRAKE PIPE FROM PUMP TO UNIT	$107.56	To Order

Photo	Part No	Description	Price (each)	Stock
	208019	REAR BRAKE PIPE FROM PUMP TO UNIT	$115.87	To Order

Photo	Part No	Description	Price (each)	Stock
	208011	L.H. REAR BRAKE PIPE	$33.66	To Order

Photo	Part No	Description	Price (each)	Stock
	208012	R.H. REAR BRAKE PIPE	$28.64	To Order

Photo	Part No	Description	Price (each)	Stock
	202776	LH FRONT CALIPER RIGID PIPE	$62.30	To Order
	202777	RH FRONT CALIPER RIGID PIPE	$62.30	To Order

Photo	Part No	Description	Price (each)	Stock
	181897	CLIP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	185956	BRAKE FLEXIBLE PIPE TO FRONT CALIPERS	$179.71	To Order

Photo	Part No	Description	Price (each)	Stock
	228185	CLIP	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	232160	VERTICAL ACCELERATION SENSOR	$224.71	To Order

Photo	Part No	Description	Price (each)	Stock
	202762	L.H.BRAKE PIPE SUPPORT BRACKET	$17.61	To Order
	202763	R.H.BRAKE PIPE SUPPORT BRACKET	$16.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	Allen Screw 6 x 20	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	208021	L.H. REAR CALIPER INTERMEDIATE BRAKE PIPE	$12.29	To Order

Photo	Part No	Description	Price (each)	Stock
	208022	R.H. REAR CALIPER INTERMEDIATE BRAKE PIPE	$12.80	To Order

Photo	Part No	Description	Price (each)	Stock
	208013	LH REAR CALIPER RIGID PIPE	$61.51	To Order

Photo	Part No	Description	Price (each)	Stock
	208015	RH REAR CALIPER RIGID PIPE	$22.76	To Order

Photo	Part No	Description	Price (each)	Stock
	387401155	BRAKE FLEXIBLE PIPE TO REAR CALIPERS	$276.90	To Order

Photo	Part No	Description	Price (each)	Stock
	327456313	SPACER RING	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	387400330	UNION	$31.28	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	10977687	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	12638178	Washer	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14447025	WASHER	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	379200408	CLIP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	188335	CLIP	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377430340	BLOCK	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	216422	CLIP	$18.31	To Order

Photo	Part No	Description	Price (each)	Stock
	377400341	BLOCK	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	155781	CLIP ANCHOR	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	377430346	CLIP	$1.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	198983	HYDRAULIC GROUP	198983 HYDRAULIC GROUP	$4,290.29	1
2	195570	CONTROL UNIT FIXING BRACKET	195570 CONTROL UNIT FIXING BRACKET	$103.56	1
3	193877	CLIP	193877 CLIP	$1.97	2
4	231617	SCREW M6 X 18	231617 SCREW M6 X 18	$2.92	2
5	12646604	WASHER	12646604 WASHER	$2.53	2
6	14039614	NUT	14039614 NUT	$1.54	1
7	207998	BRAKE PIPE FROM ABS CENTER UNITTO L.H. FRONTFLEXIBLE PIPE	207998 BRAKE PIPE FROM ABS CENTER UNITTO L.H. FRONTFLEXIBLE PIPE	$19.82	1
8	208018	RH FRONT BRAKE PIPE	208018 RH FRONT BRAKE PIPE	$51.30	1
9	208020	FRONT BRAKE PIPE FROM PUMP TO UNIT	208020 FRONT BRAKE PIPE FROM PUMP TO UNIT	$107.56	1
10	208019	REAR BRAKE PIPE FROM PUMP TO UNIT	208019 REAR BRAKE PIPE FROM PUMP TO UNIT	$115.87	1
11	208011	L.H. REAR BRAKE PIPE	208011 L.H. REAR BRAKE PIPE	$33.66	1
12	208012	R.H. REAR BRAKE PIPE	208012 R.H. REAR BRAKE PIPE	$28.64	1
13	202776	LH FRONT CALIPER RIGID PIPE	202776 LH FRONT CALIPER RIGID PIPE	$62.30	1
13	202777	RH FRONT CALIPER RIGID PIPE	202777 RH FRONT CALIPER RIGID PIPE	$62.30	1
14	181897	CLIP	181897 CLIP	$1.97	2
15	185956	BRAKE FLEXIBLE PIPE TO FRONT CALIPERS	185956 BRAKE FLEXIBLE PIPE TO FRONT CALIPERS	$179.71	2
16	228185	CLIP	228185 CLIP	$5.22	2
17	232160	VERTICAL ACCELERATION SENSOR	232160 VERTICAL ACCELERATION SENSOR Optional- -Sport version	$224.71	2
18	14084111	NUT	14084111 NUT	$1.41	2
19	202762	L.H.BRAKE PIPE SUPPORT BRACKET	202762 L.H.BRAKE PIPE SUPPORT BRACKET	$17.61	1
19	202763	R.H.BRAKE PIPE SUPPORT BRACKET	202763 R.H.BRAKE PIPE SUPPORT BRACKET	$16.78	1
20	14305324	Allen Screw 6 x 20	14305324 Allen Screw 6 x 20	$2.05	4
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	$2.41	4
22	10519424	WASHER	10519424 WASHER	$1.55	4
23	208021	L.H. REAR CALIPER INTERMEDIATE BRAKE PIPE	208021 L.H. REAR CALIPER INTERMEDIATE BRAKE PIPE	$12.29	1
24	208022	R.H. REAR CALIPER INTERMEDIATE BRAKE PIPE	208022 R.H. REAR CALIPER INTERMEDIATE BRAKE PIPE	$12.80	1
25	208013	LH REAR CALIPER RIGID PIPE	208013 LH REAR CALIPER RIGID PIPE	$61.51	1
26	208015	RH REAR CALIPER RIGID PIPE	208015 RH REAR CALIPER RIGID PIPE	$22.76	1
27	387401155	BRAKE FLEXIBLE PIPE TO REAR CALIPERS	387401155 BRAKE FLEXIBLE PIPE TO REAR CALIPERS	$276.90	2
28	181897	CLIP	181897 CLIP	$1.97	2
29	327456313	SPACER RING	327456313 SPACER RING	$1.97	2
30	387400330	UNION	387400330 UNION	$31.28	2
31	162606	CLIP	162606 CLIP	$2.83	4
32	155751	CLIP	155751 CLIP	$5.22	2
33	10977687	SCREW	10977687 SCREW	$2.83	2
34	12638178	Washer	12638178 Washer	$2.05	2
35	187464	PIPES PROTECTION BRACKET	187464 PIPES PROTECTION BRACKET	$14.93	1
36	387400402	GASKET	387400402 GASKET	$2.83	1
37	10977824	SCREW	10977824 SCREW	$1.97 MSRP: ~~2.19~~ (10% off)	2
38	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	$1.97	2
39	14447025	WASHER	14447025 WASHER	$2.53	2
40	379200408	CLIP	379200408 CLIP	$1.97	1
41	188335	CLIP	188335 CLIP	$5.90	1
42	212645	CLIP	212645 CLIP	-	-	Enquire
43	377430340	BLOCK	377430340 BLOCK	$1.27	-
44	216422	CLIP	216422 CLIP	$18.31	1
45	377400341	BLOCK	377400341 BLOCK	$1.97	1
46	155781	CLIP ANCHOR	155781 CLIP ANCHOR	$1.97	1
47	190409	CLIP	190409 CLIP	$5.90	-
48	377430346	CLIP	377430346 CLIP	$1.97	3
