ANTIEVAPORATION SYSTEM (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

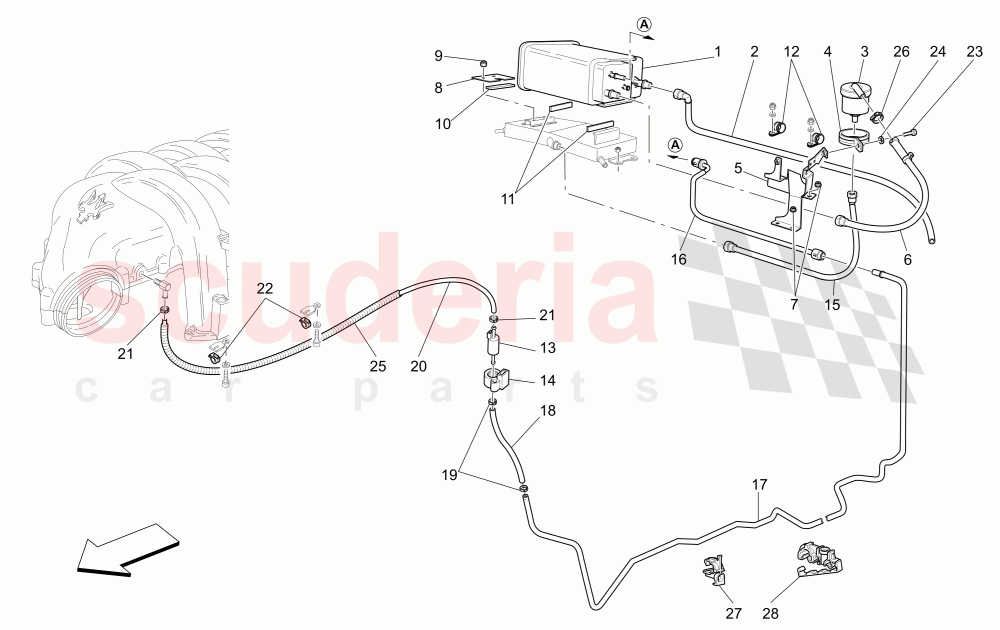

Maserati 4200 Spyder (2005-2007) CC - ANTIEVAPORATION SYSTEM (Available with: "Spyder 90th Anniversary" Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	220074	Fuel Vapour Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188124	PIPE FROM FUEL VAPOUR FILTER TO WHELLHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180573	ROLL-OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189894	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189895	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184553	PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186920	BRACKET FOR VAPOR FILTER FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184766	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184221	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180861	WASHER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174623	BUFFER FOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187468	PIPE FROM DISAREATOR TO ROLL-OVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184557	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190518	COMPLETE UNDERFLOOR TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181703	WASHING VALVE INLET TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181704	WASHING VALVE OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190471	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318720333	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433370	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187840	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	220074	Fuel Vapour Filter	220074 Fuel Vapour Filter	-	1	Enquire
2	188124	PIPE FROM FUEL VAPOUR FILTER TO WHELLHOUSE	188124 PIPE FROM FUEL VAPOUR FILTER TO WHELLHOUSE	-	1	Enquire
3	180573	ROLL-OVER VALVE	180573 ROLL-OVER VALVE	-	1	Enquire
4	189894	BRACKET	189894 BRACKET	-	1	Enquire
5	189895	BRACKET	189895 BRACKET	-	1	Enquire
6	184553	PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	184553 PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	-	1	Enquire
7	14039614	NUT	14039614 NUT	-	4	Enquire
8	186920	BRACKET FOR VAPOR FILTER FIXING	186920 BRACKET FOR VAPOR FILTER FIXING	-	1	Enquire
9	14039614	NUT	14039614 NUT	-	2	Enquire
10	184766	RUBBER THICKNESS	184766 RUBBER THICKNESS	-	1	Enquire
11	184221	RUBBER THICKNESS	184221 RUBBER THICKNESS	-	2	Enquire
12	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	-	2	Enquire
13	180861	WASHER VALVE	180861 WASHER VALVE	-	1	Enquire
14	174623	BUFFER FOR SUPPORT	174623 BUFFER FOR SUPPORT	-	1	Enquire
15	187468	PIPE FROM DISAREATOR TO ROLL-OVER	187468 PIPE FROM DISAREATOR TO ROLL-OVER	-	1	Enquire
16	184557	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	184557 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	-	1	Enquire
17	190518	COMPLETE UNDERFLOOR TUBE	190518 COMPLETE UNDERFLOOR TUBE	-	1	Enquire
18	181703	WASHING VALVE INLET TUBE	181703 WASHING VALVE INLET TUBE	-	1	Enquire
19	13432070	Screw Collar D15.7mm	13432070 Screw Collar D15.7mm	-	2	Enquire
20	181704	WASHING VALVE OUTLET PIPE	181704 WASHING VALVE OUTLET PIPE	-	1	Enquire
21	190471	RETAINING CLIP	190471 RETAINING CLIP	-	2	Enquire
22	178430	CLIP	178430 CLIP	-	2	Enquire
23	10977524	SCREW	10977524 SCREW	-	1	Enquire
24	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D.6.4-11X1.6	-	1	Enquire
25	318720333	PIPE	318720333 PIPE Supplied in meters- -(Minimum quantity 1m. or multiples)	-	-	Enquire
26	13433370	COLLAR	13433370 COLLAR	-	1	Enquire
27	187840	CLIP	187840 CLIP	-	-	Enquire
28	190409	CLIP	190409 CLIP	-	-	Enquire
