INJECTION - IGNITION DEVICE of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

Maserati 4200 Spyder (2005-2007) CC - INJECTION - IGNITION DEVICE

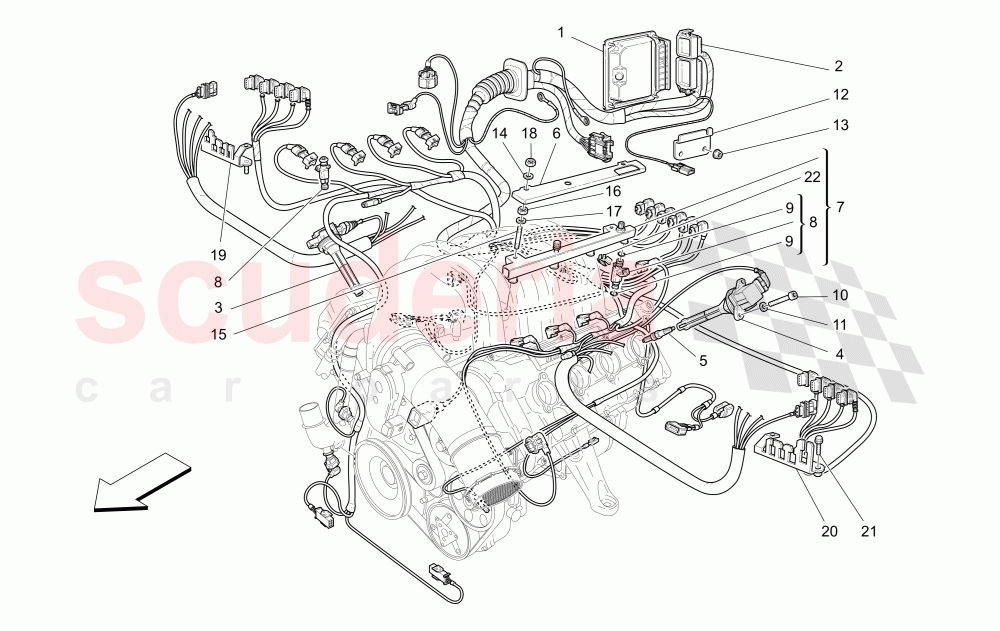

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980138139	IGNITION CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206640	ENGINE INJECTION WIRING HARNESS	Enquire	To Order
	209653	ENGINE INJECTION WIRING HARNESS	Enquire	To Order
	200104	ENGINE INJECTION WIRING HARNESS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	188504	IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186914	REAR IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	189124	LH FUEL PIPE COVER	Enquire	To Order
	189123	RH FUEL PIPE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212696	LH FUEL PIPE WITH INJECTORS	Enquire	To Order
	212696	LH FUEL PIPE WITH INJECTORS	Enquire	To Order
	212697	RH FUEL PIPE WITH INJECTORS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	197808	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201599	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66313100	MOTRONIC BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516924	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14042321	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190009	R.H. BRACKET FOR COIL CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190010	L.H. BRACKET FOR COIL CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18750121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980138139	IGNITION CONTROL UNIT	980138139 IGNITION CONTROL UNIT Programmable	-	1	Enquire
2	206640	ENGINE INJECTION WIRING HARNESS	206640 ENGINE INJECTION WIRING HARNESS Not for F1- -Valid for USA and CDN	-	1	Enquire
2	209653	ENGINE INJECTION WIRING HARNESS	209653 ENGINE INJECTION WIRING HARNESS Valid for F1- -Valid for USA and CDN	-	1	Enquire
2	200104	ENGINE INJECTION WIRING HARNESS	200104 ENGINE INJECTION WIRING HARNESS Not for F1- -Valid for RHD	-	1	Enquire
2	200103	ENGINE INJECTION WIRING HARNESS	200103 ENGINE INJECTION WIRING HARNESS Not for F1- -Not for USA, CDN and RHD	-	1	Enquire
2	209651	ENGINE INJECTION WIRING HARNESS	209651 ENGINE INJECTION WIRING HARNESS Valid for F1- -Not for USA, CDN and RHD	-	1	Enquire
2	209652	ENGINE INJECTION WIRING HARNESS	209652 ENGINE INJECTION WIRING HARNESS Valid for F1- -Valid for RHD	-	1	Enquire
3	188504	IGNITION COIL	188504 IGNITION COIL Complete of cable	-	4	Enquire
4	186914	REAR IGNITION COIL	186914 REAR IGNITION COIL Complete of cable	-	4	Enquire
5	192637	Spark Plug NGK ARRIVING SOON	192637 Spark Plug NGK ARRIVING SOON	-	8	Enquire
6	189124	LH FUEL PIPE COVER	189124 LH FUEL PIPE COVER	-	1	Enquire
6	189123	RH FUEL PIPE COVER	189123 RH FUEL PIPE COVER	-	1	Enquire
7	212696	LH FUEL PIPE WITH INJECTORS	212696 LH FUEL PIPE WITH INJECTORS Valid for USA and CDN	-	1	Enquire
7	212696	LH FUEL PIPE WITH INJECTORS	212696 LH FUEL PIPE WITH INJECTORS Not for USA and CDN	-	1	Enquire
7	212697	RH FUEL PIPE WITH INJECTORS	212697 RH FUEL PIPE WITH INJECTORS Valid for USA and CDN	-	1	Enquire
7	212697	RH FUEL PIPE WITH INJECTORS	212697 RH FUEL PIPE WITH INJECTORS Not for USA and CDN	-	1	Enquire
8	197808	ELECTRO-INJECTOR	197808 ELECTRO-INJECTOR	-	8	Enquire
9	133902	GASKET	133902 GASKET	-	16	Enquire
10	201599	SCREWM6X20	201599 SCREWM6X20 M6X20	-	16	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	16	Enquire
12	66313100	MOTRONIC BRACKET	66313100 MOTRONIC BRACKET	-	1	Enquire
13	14054577	NUT	14054577 NUT M6	-	2	Enquire
14	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	-	4	Enquire
15	13516924	STUD	13516924 STUD	-	4	Enquire
16	16102314	NUTM8	16102314 NUTM8 M8	-	4	Enquire
17	12604474	WASHER	12604474 WASHER	-	4	Enquire
18	14042321	NUT	14042321 NUT	-	4	Enquire
19	190009	R.H. BRACKET FOR COIL CABLES	190009 R.H. BRACKET FOR COIL CABLES	-	1	Enquire
20	190010	L.H. BRACKET FOR COIL CABLES	190010 L.H. BRACKET FOR COIL CABLES	-	1	Enquire
21	18750121	SCREW	18750121 SCREW	-	2	Enquire
22	144730	CLIP	144730 CLIP	-	8	Enquire
