FUEL TANK of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

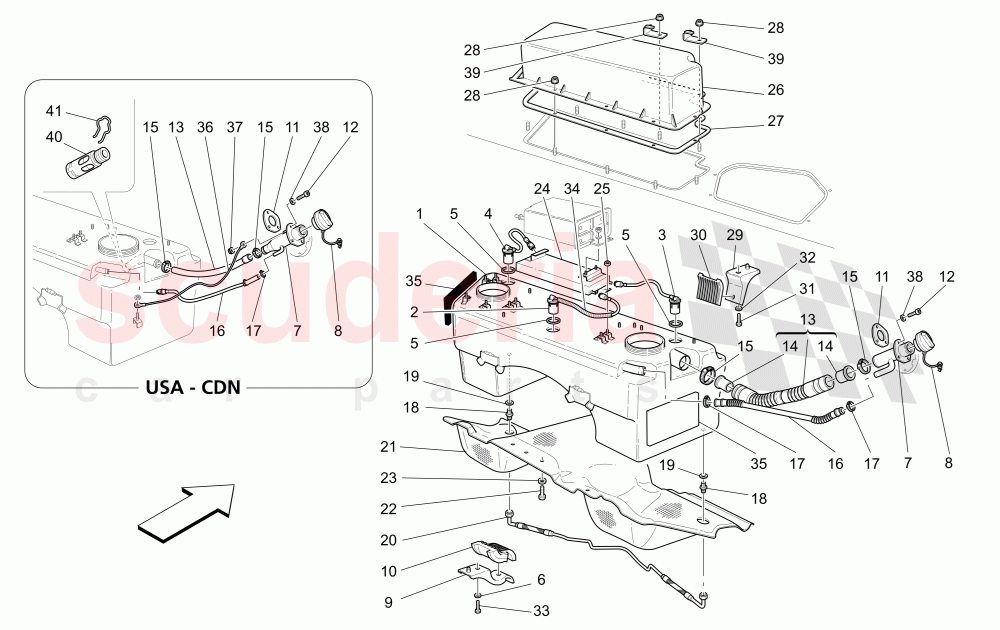

Maserati 4200 Spyder (2005-2007) CC - FUEL TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	193834	FUEL TANK	Enquire	To Order
	184288	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184908	CENTRAL FLOAT VALVLE WHIT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184349	R.H. FLOAT VALVE WITH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184907	L.H. FLOAT VALVE WITH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195049	FLOAT VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201347	FUEL FILLER	Enquire	To Order
	201363	FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183432	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184298	FUEL TANK FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186986	RUBBER REAR SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190141	GASKET FOR FUEL FILLER NECK FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14778017	SCREW	Enquire	To Order
	13276470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189733	UNION-TANK CONNECTING PIPE	Enquire	To Order
	191617	UNION-TANK CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191618	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168220	SCREW COLLAR	Enquire	To Order
	13000790	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190164	COMPLETE VENT PIPE FROM TANK TO UNION	Enquire	To Order
	190150	VAPORS RECYCLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	Enquire	To Order
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193689	NIPPLE	Enquire	To Order
	188548	NIPPLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000691	GASKET	Enquire	To Order
	675000691	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193688	TANK CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66065600	UNDERTANK HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187467	DISAREATOR	Enquire	To Order
	187466	DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67239500	ANTIEVAPORATION DEVICE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66360700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059217	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184297	FUEL TANK FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186985	RUBBER FRONT SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318720333	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	371530464	PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200649	EARTH CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059214	Nut Flanged M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179996	BRACKET FOR CONNECTOR FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181929	INTERCEPTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181930	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	193834	FUEL TANK	193834 FUEL TANK Valid for USA and CDN	-	1	Enquire
1	184288	FUEL TANK	184288 FUEL TANK Not for USA and CDN	-	1	Enquire
2	184908	CENTRAL FLOAT VALVLE WHIT PIPE	184908 CENTRAL FLOAT VALVLE WHIT PIPE	-	1	Enquire
3	184349	R.H. FLOAT VALVE WITH PIPE	184349 R.H. FLOAT VALVE WITH PIPE	-	1	Enquire
4	184907	L.H. FLOAT VALVE WITH PIPE	184907 L.H. FLOAT VALVE WITH PIPE	-	1	Enquire
5	195049	FLOAT VALVE GASKET	195049 FLOAT VALVE GASKET	-	3	Enquire
6	12626224	WASHER	12626224 WASHER	-	2	Enquire
7	201347	FUEL FILLER	201347 FUEL FILLER Valid for USA and CDN	-	1	Enquire
7	201363	FUEL FILLER	201363 FUEL FILLER Not for USA and CDN	-	1	Enquire
8	183432	TANK PLUG	183432 TANK PLUG	-	1	Enquire
9	184298	FUEL TANK FIXING BRACKET	184298 FUEL TANK FIXING BRACKET	-	2	Enquire
10	186986	RUBBER REAR SPACER	186986 RUBBER REAR SPACER	-	2	Enquire
11	190141	GASKET FOR FUEL FILLER NECK FLANGE	190141 GASKET FOR FUEL FILLER NECK FLANGE	-	1	Enquire
12	14778017	SCREW	14778017 SCREW Valid for USA and CDN	-	3	Enquire
12	13276470	SCREW	13276470 SCREW Not for USA and CDN	-	3	Enquire
13	189733	UNION-TANK CONNECTING PIPE	189733 UNION-TANK CONNECTING PIPE Valid for USA and CDN	-	1	Enquire
13	191617	UNION-TANK CONNECTING PIPE	191617 UNION-TANK CONNECTING PIPE Not for USA and CDN	-	1	Enquire
14	191618	GASKET	191618 GASKET Not for USA and CDN	-	2	Enquire
15	168220	SCREW COLLAR	168220 SCREW COLLAR Valid for USA and CDN	-	2	Enquire
15	13000790	Screw Collar	13000790 Screw Collar Not for USA and CDN	-	2	Enquire
16	190164	COMPLETE VENT PIPE FROM TANK TO UNION	190164 COMPLETE VENT PIPE FROM TANK TO UNION Not for USA and CDN	-	1	Enquire
16	190150	VAPORS RECYCLING PIPE	190150 VAPORS RECYCLING PIPE Valid for USA and CDN	-	1	Enquire
17	13432070	Screw Collar D15.7mm	13432070 Screw Collar D15.7mm Valid for USA and CDN	-	1	Enquire
17	262109	COLLAR	262109 COLLAR Not for USA and CDN	-	2	Enquire
18	193689	NIPPLE	193689 NIPPLE Valid for USA and CDN	-	2	Enquire
18	188548	NIPPLE	188548 NIPPLE Not for USA and CDN	-	2	Enquire
19	675000691	GASKET	675000691 GASKET	-	2	Enquire
19	675000691	GASKET	675000691 GASKET	-	2	Enquire
20	193688	TANK CONNECTING PIPE	193688 TANK CONNECTING PIPE	-	1	Enquire
21	66065600	UNDERTANK HEAT SHIELD	66065600 UNDERTANK HEAT SHIELD	-	1	Enquire
22	10902224	SCREW	10902224 SCREW	-	14	Enquire
23	10523424	WASHER	10523424 WASHER	-	14	Enquire
24	187467	DISAREATOR	187467 DISAREATOR Valid for USA and CDN	-	1	Enquire
24	187466	DISAREATOR	187466 DISAREATOR Not for USA and CDN	-	1	Enquire
25	14039614	NUT	14039614 NUT	-	4	Enquire
26	67239500	ANTIEVAPORATION DEVICE COVER	67239500 ANTIEVAPORATION DEVICE COVER	-	1	Enquire
27	66360700	GASKET	66360700 GASKET	-	1	Enquire
28	14059217	NUT	14059217 NUT	-	9	Enquire
29	184297	FUEL TANK FIXING BRACKET	184297 FUEL TANK FIXING BRACKET	-	2	Enquire
30	186985	RUBBER FRONT SPACER	186985 RUBBER FRONT SPACER	-	2	Enquire
31	14307524	SCREW	14307524 SCREW	-	2	Enquire
32	12626224	WASHER	12626224 WASHER	-	2	Enquire
33	14307524	SCREW	14307524 SCREW	-	2	Enquire
34	318720333	PIPE	318720333 PIPE Supplied in meters- -(minimum quantity 1m. or multiples)	-	-	Enquire
35	371530464	PROTECTION	371530464 PROTECTION	-	2	Enquire
36	200649	EARTH CABLE	200649 EARTH CABLE Valid for USA and CDN	-	1	Enquire
37	14059214	Nut Flanged M6	14059214 Nut Flanged M6 M6 Valid for USA and CDN	-	1	Enquire
38	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
39	179996	BRACKET FOR CONNECTOR FIXING	179996 BRACKET FOR CONNECTOR FIXING	-	2	Enquire
40	181929	INTERCEPTION VALVE	181929 INTERCEPTION VALVE Valid for USA and CDN	-	1	Enquire
41	181930	CLIP	181930 CLIP Valid for USA and CDN	-	1	Enquire
