Name: RH CYLINDER HEAD (Available with: "Spyder 90th Anniversary" Version)
Rating: 5.0 (1 reviews)

RH CYLINDER HEAD (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

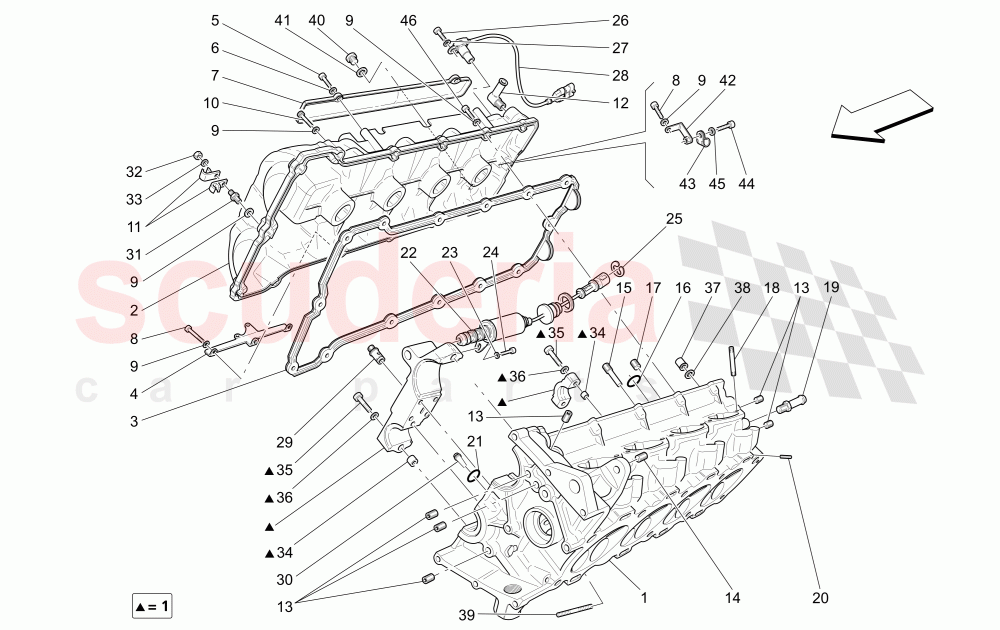

Maserati 4200 Spyder (2005-2007) CC - RH CYLINDER HEAD (Available with: "Spyder 90th Anniversary" Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	205254	COMPLETE R.H. HEAD	$2,700.80	To Order
	218037	COMPLETE R.H. HEAD	$2,648.17	To Order

Photo	Part No	Description	Price (each)	Stock
	187815	RH HEAD CYLINDER COVER	$533.75	To Order

Photo	Part No	Description	Price (each)	Stock
	198927	RH Head Cover Gasket	$73.35	To Order

Photo	Part No	Description	Price (each)	Stock
	192390	SECONDARY AIR VALVE FIX. BRACKET	$80.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14497878	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	185276	RH WIRING HARNESS COVER	$61.99	To Order

Photo	Part No	Description	Price (each)	Stock
	156834	ALLEN SCREW M6 X 30	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	156830	ALLEN SCREW M6 X 40	$4.68	To Order

Photo	Part No	Description	Price (each)	Stock
	187713	RETAINING CLIP	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	124342	Threaded Union	$9.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14326050	THREADED PLUG	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	140135	THREADED INSERT	$362.46	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.55	To Order

Photo	Part No	Description	Price (each)	Stock
	187706	Spark Plug Sleeve Gasket	$5.92	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$7.61	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD	$63.67	To Order

Photo	Part No	Description	Price (each)	Stock
	191633	UNION	$87.50	To Order

Photo	Part No	Description	Price (each)	Stock
	141563	THREADED PLUG	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	GASKET	$9.38	To Order

Photo	Part No	Description	Price (each)	Stock
	186563	VARIATOR CONTROL SOLENOID VALVE	$703.80	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11087376	3-POINT CIRCLIP D.12	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	219349	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184681	OIL PRESSURE CHECK VALVE	$122.06	To Order

Photo	Part No	Description	Price (each)	Stock
	241406	OIL FILTER	$12.80	To Order

Photo	Part No	Description	Price (each)	Stock
	187711	STUD	$92.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHERD.6.15-11X1	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14305821	SCREW M6 X 40	$2.05	To Order
	231622	SCREWM6X35	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	$29.20	To Order
	321187	CYLINDER HEAD NUT & WASHER KIT	$29.20	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	$27.32	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	187963	PLUG	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	10263360	GASKET	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	185471	BRACKET	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$9.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW M6 X 25	$2.35	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	205254	COMPLETE R.H. HEAD	205254 COMPLETE R.H. HEAD Valid till engine Nr. 92940	$2,700.80	1
1	218037	COMPLETE R.H. HEAD	218037 COMPLETE R.H. HEAD Valid from engine Nr. 92941	$2,648.17	1
2	187815	RH HEAD CYLINDER COVER	187815 RH HEAD CYLINDER COVER	$533.75 MSRP: ~~541.23~~ (1.4% off)	1
3	198927	RH Head Cover Gasket	198927 RH Head Cover Gasket Supplied also in the cover gasket revision kit (cod. 980020000)	$73.35	1
4	192390	SECONDARY AIR VALVE FIX. BRACKET	192390 SECONDARY AIR VALVE FIX. BRACKET	$80.58	1
5	14304424	SCREW	14304424 SCREW	$4.50	3
6	14497878	WASHER	14497878 WASHER	$1.55	3
7	185276	RH WIRING HARNESS COVER	185276 RH WIRING HARNESS COVER	$61.99	1
8	156834	ALLEN SCREW M6 X 30	156834 ALLEN SCREW M6 X 30	$2.83	8
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	16
10	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40	$4.68	1
11	187713	RETAINING CLIP	187713 RETAINING CLIP	$5.79	2
12	124342	Threaded Union	124342 Threaded Union	$9.10	1
13	14326050	THREADED PLUG	14326050 THREADED PLUG	$1.97	6
14	140135	THREADED INSERT	140135 THREADED INSERT	$362.46	1
15	127635	THREADED PLUG	127635 THREADED PLUG	$2.55	4
16	187706	Spark Plug Sleeve Gasket	187706 Spark Plug Sleeve Gasket Supplied also in the cover gasket revision kit (cod. 980020000)	$5.92 MSRP: ~~7.47~~ (20.7% off)	4
17	164400	THREADED PLUG	164400 THREADED PLUG	$7.61	1
18	13541224	STUD	13541224 STUD	$63.67	8
19	191633	UNION	191633 UNION	$87.50	1
20	141563	THREADED PLUG	141563 THREADED PLUG	$4.22	4
21	134233	GASKET	134233 GASKET Supplied also in the cover gasket revision kit (cod. 980020000)	$9.38	1
22	186563	VARIATOR CONTROL SOLENOID VALVE	186563 VARIATOR CONTROL SOLENOID VALVE	$703.80	1
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	1
24	231617	SCREW M6 X 18	231617 SCREW M6 X 18	$2.92	1
25	11087376	3-POINT CIRCLIP D.12	11087376 3-POINT CIRCLIP D.12	$1.27	1
26	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	1
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	1
28	219349	TIMING SENSOR	219349 TIMING SENSOR	-	1	Enquire
29	184681	OIL PRESSURE CHECK VALVE	184681 OIL PRESSURE CHECK VALVE	$122.06	1
30	241406	OIL FILTER	241406 OIL FILTER Supplied also in the cover gasket revision kit (cod. 980020000)	$12.80	1
31	187711	STUD	187711 STUD	$92.23	1
32	14039614	NUT	14039614 NUT	$1.54	1
33	12639724	WASHERD.6.15-11X1	12639724 WASHERD.6.15-11X1 D.6.15-11X1	$1.55	1
34	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.97	22
35	14305821	SCREW M6 X 40	14305821 SCREW M6 X 40 M6X40 M 6X40	$2.05	2
35	231622	SCREWM6X35	231622 SCREWM6X35 M 6X35	$1.27	20
36	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	22
37	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT M11	$29.20	10
37	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT	$29.20	10
38	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5 D.11.25-22X2.5	$27.32	10
39	13543424	STUD	13543424 STUD	$1.97	8
40	187963	PLUG	187963 PLUG	$6.62	1
41	10263360	GASKET	10263360 GASKET	$1.27	1
42	185471	BRACKET	185471 BRACKET	$5.22	1
43	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$9.02	1
44	14305024	SCREW	14305024 SCREW	$1.97	1
45	10519424	WASHER	10519424 WASHER	$1.55	1
46	157218	SCREW M6 X 25	157218 SCREW M6 X 25 M6X25	$2.35	7
