EXHAUST SYSTEM (Available with: "Spyder 90th Anniversary" Version)

Find Your Part

Maserati 4200 Spyder (2005-2007) CC - EXHAUST SYSTEM (Available with: "Spyder 90th Anniversary" Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
214443 CPL RH CATALYTIC CONVERTER $4,035.84 To Order
Photo Part No Description Price (each) Stock
214444 CPL LH CATALYTIC CONVERTER $4,035.84 To Order
Photo Part No Description Price (each) Stock

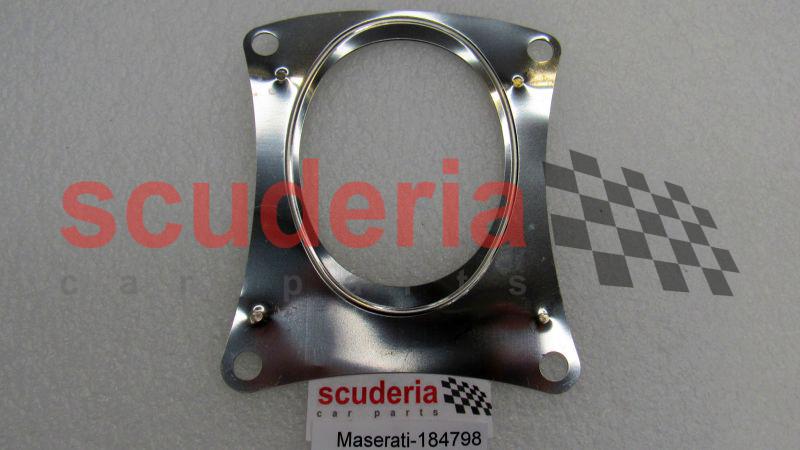

184798 GASKET EXHAUST MANIFOLD $31.53 To Order
Photo Part No Description Price (each) Stock
190213 SCREW $4.50 To Order
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 $1.62 To Order
Photo Part No Description Price (each) Stock
182837 Front Lamda Sensor $316.81 To Order
Photo Part No Description Price (each) Stock
175856 CONNECTOR FIXING BRACKET $5.22 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
191412 Rear Lamda Sensor $413.90 To Order
Photo Part No Description Price (each) Stock
185408 CONNECTOR SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.53 To Order
Photo Part No Description Price (each) Stock
183795 RH EXHAUST MANIFOLD $4,129.90 To Order
Photo Part No Description Price (each) Stock
183796 LH EXHAUST MANIFOLD $4,129.90 To Order
Photo Part No Description Price (each) Stock
182868 HEADS AND EXHAUST MANIFOLD GASKET $5.23 To Order
Photo Part No Description Price (each) Stock
138392 Exhaust Brass Locknut M8 x 1.25 $3.93 To Order
Photo Part No Description Price (each) Stock
187827 BRACKET FOR CATALYTIC CONVERTERS FIXING $20.86 To Order
Photo Part No Description Price (each) Stock
14048215 NUT $6.49 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
184333 PAD $23.78 To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 $2.05 To Order
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 $1.62 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
185307 Exhaust Clamp D.60.3 $36.92 To Order
Photo Part No Description Price (each) Stock
67190200 BRACKET WITH SHEATH $3.53 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $9.02 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
204476 CENTRAL SILENCER $3,385.87 To Order
187826 CENTRAL SILENCER $2,830.64 To Order
Photo Part No Description Price (each) Stock
185307 Exhaust Clamp D.60.3 $36.92 To Order
Photo Part No Description Price (each) Stock
188176 RH EXHAUST EXTENSION PIPE $315.39 To Order
Photo Part No Description Price (each) Stock
188177 LH EXHAUST EXTENSION PIPE $340.20 To Order
Photo Part No Description Price (each) Stock
185307 Exhaust Clamp D.60.3 $36.92 To Order
Photo Part No Description Price (each) Stock
204479 REAR RH MUFFLER $2,952.48 To Order
Photo Part No Description Price (each) Stock
204480 REAR LH MUFFLER $3,521.22 To Order
Photo Part No Description Price (each) Stock
184814 SUPPORT $62.63 To Order
Photo Part No Description Price (each) Stock
14306924 SCREWM8X50 $2.83 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
199731 VIBRATION-DAMPING MOUNT $81.72 To Order
Photo Part No Description Price (each) Stock
14306924 SCREWM8X50 $2.83 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $2.05 To Order
Photo Part No Description Price (each) Stock
187775 RH SUPPORT $21.51 To Order
Photo Part No Description Price (each) Stock
187774 LH SUPPORT $30.41 To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED $2.05 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $2.05 To Order
Photo Part No Description Price (each) Stock
187836 SPACER $31.00 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 $2.05 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
190270 UNDER EXHAUST SHIELD $384.44 To Order
Photo Part No Description Price (each) Stock
190271 BRACKET $57.21 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.53 To Order
Photo Part No Description Price (each) Stock
12639724 WASHERD.6.15-11X1 $1.55 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
193098 SPACER BAR THICKNESS $4.22 To Order
View All

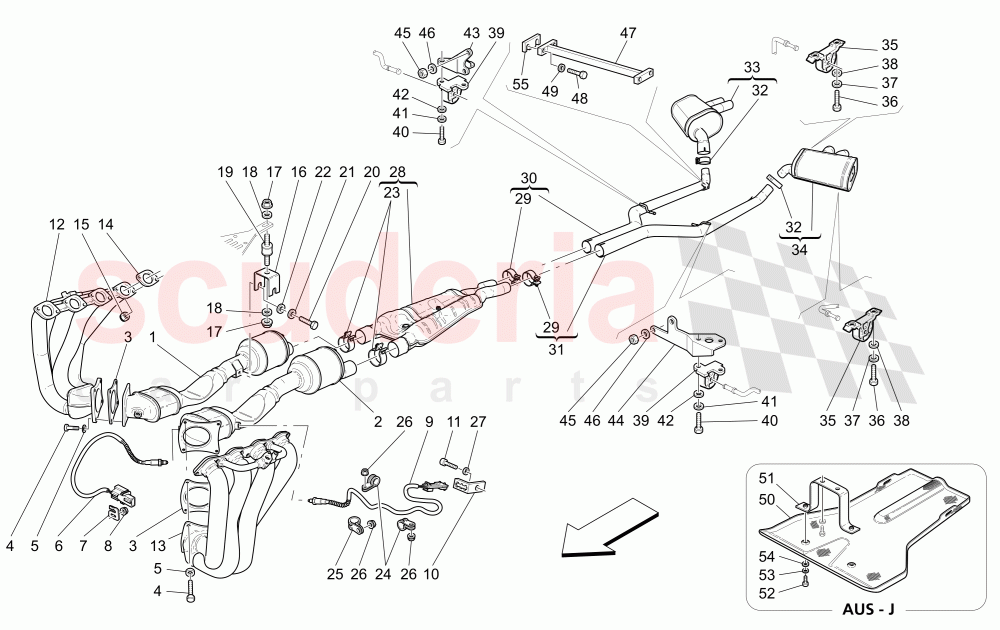

EXHAUST SYSTEM (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 214443
CPL RH CATALYTIC CONVERTER 		$4,035.84 1
2 214444
CPL LH CATALYTIC CONVERTER 		$4,035.84 1
3 184798
GASKET EXHAUST MANIFOLD
Supplied also in the cylinder heads gasket revision kit (cod. 980020001) 		$31.53 2
4 190213
SCREW 		$4.50 8
5 11193874
WASHERD.8.4-16X1.4
D.8.4-16X1.4 		$1.62 8
6 182837
Front Lamda Sensor 		$316.81 2
7 175856
CONNECTOR FIXING BRACKET 		$5.22 2
8 14039614
NUT 		$1.54 2
9 191412
Rear Lamda Sensor 		$413.90 2
10 185408
CONNECTOR SUPPORT BRACKET 		- 2 Enquire
11 248334
SCREW M6 X 14MM 		$3.53 2
12 183795
RH EXHAUST MANIFOLD 		$4,129.90 1
13 183796
LH EXHAUST MANIFOLD 		$4,129.90 1
14 182868
HEADS AND EXHAUST MANIFOLD GASKET
Supplied also in the cylinder heads gasket revision kit (cod. 980020001) 		$5.23 8
15 138392
Exhaust Brass Locknut M8 x 1.25 		$3.93 16
16 187827
BRACKET FOR CATALYTIC CONVERTERS FIXING 		$20.86 1
17 14048215
NUT 		$6.49 2
18 12625224
WASHER 		$1.97 2
19 184333
PAD 		$23.78 1
20 16043324
SCREW M8 X 18 		$2.05 2
21 11193874
WASHERD.8.4-16X1.4
D.8.4-16X1.4 		$1.62 2
22 12625224
WASHER 		$1.97 2
23 185307
Exhaust Clamp D.60.3 		$36.92 2
24 67190200
BRACKET WITH SHEATH 		$3.53 6
25 10441290
BRACKET WITH SHEATH 		$9.02 2
26 14039614
NUT 		$1.54 8
27 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		$2.41 2
28 204476
CENTRAL SILENCER
Valid for USA and CDN 		$3,385.87 1
28 187826
CENTRAL SILENCER
Not for USA and CDN 		$2,830.64 (3.8% off) 1
29 185307
Exhaust Clamp D.60.3 		$36.92 2
30 188176
RH EXHAUST EXTENSION PIPE 		$315.39 1
31 188177
LH EXHAUST EXTENSION PIPE 		$340.20 1
32 185307
Exhaust Clamp D.60.3 		$36.92 2
33 204479
REAR RH MUFFLER 		$2,952.48 (3.7% off) 1
34 204480
REAR LH MUFFLER 		$3,521.22 (4.6% off) 1
35 184814
SUPPORT 		$62.63 (2.2% off) 4
36 14306924
SCREWM8X50 		$2.83 8
37 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		$1.62 8
38 12638524
WASHER 		$1.97 8
39 199731
VIBRATION-DAMPING MOUNT 		$81.72 2
40 14306924
SCREWM8X50 		$2.83 4
41 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		$1.62 4
42 14496524
WASHER
D. 8.40-17 X1.6 		$2.05 4
43 187775
RH SUPPORT 		$21.51 1
44 187774
LH SUPPORT 		$30.41 1
45 14040711
NUT M8 FLANGED 		$2.05 4
46 14496524
WASHER
D. 8.40-17 X1.6 		$2.05 4
47 187836
SPACER 		$31.00 1
48 16043124
SCREW M8 X 14 		$2.05 4
49 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		$1.62 4
50 190270
UNDER EXHAUST SHIELD
Valid for J and AUS and cars GB opt. japan version 		$384.44 1
51 190271
BRACKET
Valid for J and AUS and cars GB opt. japan version 		$57.21 1
52 248334
SCREW M6 X 14MM
Valid for J and AUS and cars GB opt. japan version 		$3.53 2
53 12639724
WASHERD.6.15-11X1
D.6.15-11X1 Valid for J and AUS and cars GB opt. japan version 		$1.55 2
54 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 Valid for J and AUS and cars GB opt. japan version 		$2.41 2
55 193098
SPACER BAR THICKNESS 		$4.22 4
