Gearbox Housings (Includes Gearbox Oil Radiator)

Maserati 4200 Spyder (2005-2007) CC

Find Your Part

Maserati 4200 Spyder (2005-2007) CC - GEARBOX HOUSINGS (Includes gearbox oil radiator)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
192736 COMPLETE GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
192734 FRONT COVER ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
182416 GEARBOX OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
182119 GEARBOX OIL FILTER O-RING Enquire To Order
Photo Part No Description Price (each) Stock
11199277 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13543624 STUD Enquire To Order
Photo Part No Description Price (each) Stock
13546334 STUD Enquire To Order
Photo Part No Description Price (each) Stock
185721 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
254644 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11194379 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
185714 OIL TILE Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
150957 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
14456981 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
185719 OIL SEAL Enquire To Order
Photo Part No Description Price (each) Stock
183962 OIL DRAIN PLUG MAGNETIC 22X1.5 Enquire To Order
Photo Part No Description Price (each) Stock
10305111 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
16287524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16287734 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16288121 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14059421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14453581 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
214366 OIL RADIATOR COMPLETE WITH PIPES Enquire To Order
Photo Part No Description Price (each) Stock
189289 UNION Enquire To Order
Photo Part No Description Price (each) Stock
188316 UNION Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
277407 UNION Enquire To Order
Photo Part No Description Price (each) Stock
189457 OIL DELIVERY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
189458 OIL RETURN TUBE Enquire To Order
Photo Part No Description Price (each) Stock
13127070 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
187892 COIL SUPPORTING R.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
187894 COIL SUPPORTING L.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
181756 ELEMENT FOR FIXING QUICK Enquire To Order
Photo Part No Description Price (each) Stock
11730624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16286121 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10297760 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
188077 STUD Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 Enquire To Order
Photo Part No Description Price (each) Stock
11500024 STUD Enquire To Order
Photo Part No Description Price (each) Stock
168729 ELECTRO Enquire To Order
Photo Part No Description Price (each) Stock
11500024 STUD Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
188004 CONNECTOR SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
193583 OIL RECYCLING PIPE Enquire To Order
Photo Part No Description Price (each) Stock
211710 UNION FOR OIL RECYCLING Enquire To Order
Photo Part No Description Price (each) Stock
214367 OIL RADIATOR COMPLETE WITH PIPES Enquire To Order
Photo Part No Description Price (each) Stock
211710 UNION FOR OIL RECYCLING Enquire To Order
View All

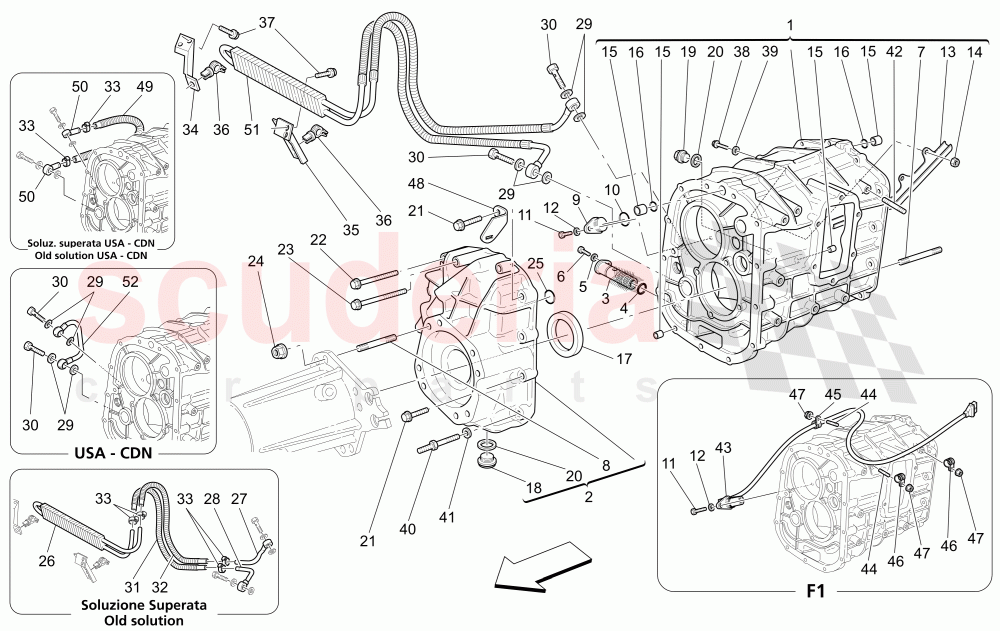

GEARBOX HOUSINGS (Includes gearbox oil radiator) of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 203018
GEARBOX ASSEMBLY
Not for F1 		- 1 Enquire
- 199530
GEARBOX ASSEMBLY
Valid for F1 		- 1 Enquire
1 192736
COMPLETE GEARBOX 		- 1 Enquire
2 192734
FRONT COVER ASSEMBLY 		- 1 Enquire
3 182416
GEARBOX OIL FILTER 		- 1 Enquire
4 182119
GEARBOX OIL FILTER O-RING 		- 1 Enquire
5 11199277
WASHER 		- 1 Enquire
6 10977624
SCREW 		- 1 Enquire
7 13543624
STUD 		- 2 Enquire
8 13546334
STUD 		- 8 Enquire
9 185721
PLUG
Not for F1 		- 1 Enquire
10 254644
O.R. GASKET
Not for F1 		- 1 Enquire
11 10902224
SCREW 		- 1 Enquire
12 11194379
WASHER 		- 1 Enquire
13 185714
OIL TILE 		- 1 Enquire
14 14039614
NUT 		- 2 Enquire
15 150957
CENTERING DOWEL 		- 4 Enquire
16 14456981
O.R. GASKET 		- 2 Enquire
17 185719
OIL SEAL 		- 1 Enquire
18 183962
OIL DRAIN PLUG MAGNETIC 22X1.5 		- 1 Enquire
19 10305111
THREADED PLUG 		- 1 Enquire
20 10263460
COPPER GASKET D.28-22.3 X 1.5 		- 2 Enquire
21 16287524
SCREW 		- 5 Enquire
22 16287734
SCREW 		- 3 Enquire
23 16288121
SCREW 		- 1 Enquire
24 14059421
NUT 		- 8 Enquire
25 14453581
O.R. GASKET 		- 1 Enquire
26 214366
OIL RADIATOR COMPLETE WITH PIPES
Not for USA and CDN- -Old solution 		- 1 Enquire
27 189289
UNION
Not for USA and CDN- -Old solution 		- 1 Enquire
28 188316
UNION
Not for USA and CDN- -Old solution 		- 1 Enquire
29 10280060
WASHER COPPER D14. 20 X 1.5 		- 4 Enquire
30 277407
UNION 		- 2 Enquire
31 189457
OIL DELIVERY TUBE
Not for USA and CDN- -Old solution 		- 1 Enquire
32 189458
OIL RETURN TUBE
Not for USA and CDN- -Old solution 		- 1 Enquire
33 13127070
CLAMP
(Quantity 2 for USA and CDN)- -Old solution 		- 4 Enquire
34 187892
COIL SUPPORTING R.H. BRACKET
Not for USA and CDN 		- 1 Enquire
35 187894
COIL SUPPORTING L.H. BRACKET
Not for USA and CDN 		- 1 Enquire
36 181756
ELEMENT FOR FIXING QUICK
Not for USA and CDN 		- 3 Enquire
37 11730624
SCREW
Not for USA and CDN 		- 4 Enquire
38 16286121
SCREW 		- 2 Enquire
39 10297760
GASKET 		- 2 Enquire
40 188077
STUD 		- 4 Enquire
41 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		- 4 Enquire
42 11500024
STUD 		- 1 Enquire
43 168729
ELECTRO
Valid for F1 		- 1 Enquire
44 11500024
STUD
Valid for F1 		- 2 Enquire
45 10441290
BRACKET WITH SHEATH
Valid for F1 		- 1 Enquire
46 10441290
BRACKET WITH SHEATH
Valid for F1 		- 2 Enquire
47 14039614
NUT
M6 Valid for F1 		- 3 Enquire
48 188004
CONNECTOR SUPPORT BRACKET
Valid for F1 		- 1 Enquire
49 193583
OIL RECYCLING PIPE
Valid for USA and CDN- -Old solution 		- 1 Enquire
50 211710
UNION FOR OIL RECYCLING
Valid for USA and CDN- -Old solution 		- 2 Enquire
51 214367
OIL RADIATOR COMPLETE WITH PIPES
Not for USA and CDN 		- 1 Enquire
52 211710
UNION FOR OIL RECYCLING
Valid for USA and CDN 		- 1 Enquire
