Name: CRANKSHAFT, CONNECTING RODS AND PISTONS (Available with: "Spyder 90th Anniversary" Version)
Rating: 4.5 (1 reviews)

CRANKSHAFT, CONNECTING RODS AND PISTONS (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

Maserati 4200 Spyder (2005-2007) CC - CRANKSHAFT, CONNECTING RODS AND PISTONS (Available with: "Spyder 90th Anniversary" Version)

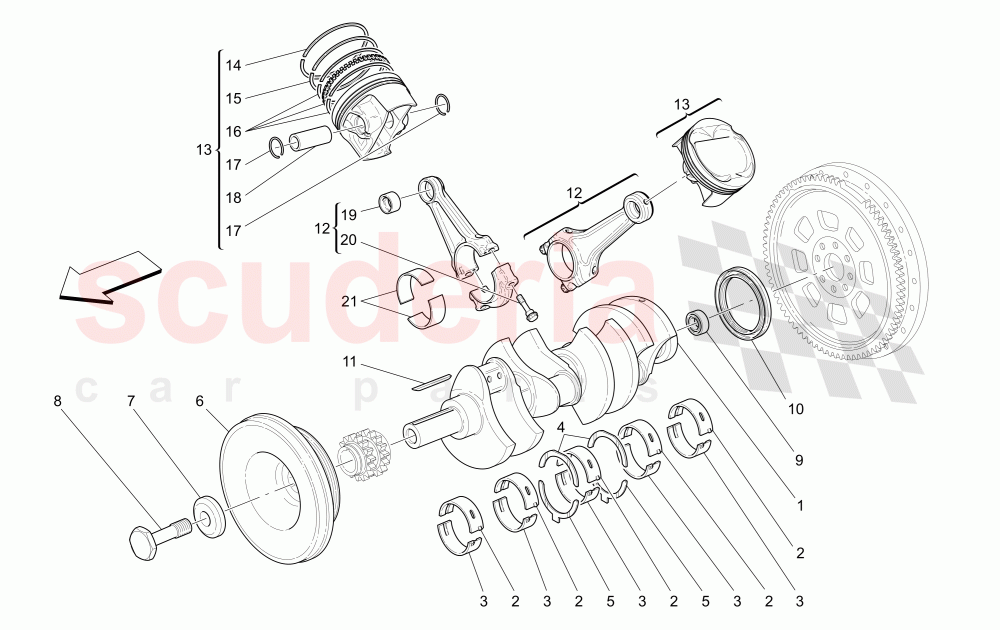

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	193169	CRANKSHAFT	$3,203.83	To Order

Photo	Part No	Description	Price (each)	Stock
	193000	UPPER HALF-BEARING	$20.55	To Order
	193001	UPPER HALF-BEARING	$25.83	To Order
	193002	UPPER HALF-BEARING	$25.83	To Order

Photo	Part No	Description	Price (each)	Stock
	193003	LOWER HALF-BEARING	$18.33	To Order
	193004	LOWER HALF-BEARING	$20.18	To Order
	193005	LOWER HALF-BEARING	$20.18	To Order

Photo	Part No	Description	Price (each)	Stock
	COMPLETESETONLY	OIL SCRAPER RING	Enquire	To Order
	179540	UPPER SHIM WASHER	$81.94	To Order
	179541	UPPER SHIM WASHER	$81.94	To Order

Photo	Part No	Description	Price (each)	Stock
	179538	LOWER SHIM WASHER	$42.67	To Order
	179537	LOWER SHIM WASHER	$81.94	To Order
	179536	LOWER SHIM WASHER	$81.94	To Order

Photo	Part No	Description	Price (each)	Stock
	187469	TORSION DAMPER	$3,071.19	To Order

Photo	Part No	Description	Price (each)	Stock
	263683	WASHER	$19.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196216	Screw For Damper Fixing	$87.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235062	Bearing	$46.88	To Order

Photo	Part No	Description	Price (each)	Stock
	200323	REAR MAIN OIL SEALING RING D.80-100X10	$52.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186201	TAB	$3.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	192402	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$465.08	To Order

Photo	Part No	Description	Price (each)	Stock
	198412	LH SIDE ENGINE PISTON WITH RINGS	$351.37	To Order
	198410	RH SIDE ENGINE PISTON WITH RINGS	$351.37	To Order

Photo	Part No	Description	Price (each)	Stock
	236497	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226260	SEAL RING	$75.12	To Order

Photo	Part No	Description	Price (each)	Stock
	COMPLETESETONLY	OIL SCRAPER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178890	LOCK RING	$9.65	To Order

Photo	Part No	Description	Price (each)	Stock
	175367	PIN	$104.60	To Order

Photo	Part No	Description	Price (each)	Stock
	184909	BUSHING	$55.48	To Order

Photo	Part No	Description	Price (each)	Stock
	177159	CONNECTING ROD TIGHTENING SCREW	$75.97	To Order

Photo	Part No	Description	Price (each)	Stock
	190265	CONNECTING ROD HALF-BEARING	$16.73	To Order
	188520	CONNECTING ROD HALF-BEARING	$7.89	To Order
	188521	CONNECTING ROD HALF-BEARING	$22.27	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	193169	CRANKSHAFT	193169 CRANKSHAFT	$3,203.83	1
2	193000	UPPER HALF-BEARING	193000 UPPER HALF-BEARING Blue	$20.55	5
2	193001	UPPER HALF-BEARING	193001 UPPER HALF-BEARING Yellow	$25.83	5
2	193002	UPPER HALF-BEARING	193002 UPPER HALF-BEARING Green- -Standard	$25.83	5
3	193003	LOWER HALF-BEARING	193003 LOWER HALF-BEARING Blue	$18.33	5
3	193004	LOWER HALF-BEARING	193004 LOWER HALF-BEARING Yellow	$20.18	5
3	193005	LOWER HALF-BEARING	193005 LOWER HALF-BEARING Green- -Standard	$20.18	5
4	COMPLETESETONLY	OIL SCRAPER RING	COMPLETESETONLY OIL SCRAPER RING Standard	-	2	Enquire
4	179540	UPPER SHIM WASHER	179540 UPPER SHIM WASHER 1st Oversize	$81.94	2
4	179541	UPPER SHIM WASHER	179541 UPPER SHIM WASHER 2nd Oversize	$81.94	2
5	179538	LOWER SHIM WASHER	179538 LOWER SHIM WASHER Standard	$42.67	2
5	179537	LOWER SHIM WASHER	179537 LOWER SHIM WASHER 1st Oversize	$81.94	2
5	179536	LOWER SHIM WASHER	179536 LOWER SHIM WASHER 2nd Oversize	$81.94	2
6	187469	TORSION DAMPER	187469 TORSION DAMPER	$3,071.19	1
7	263683	WASHER IN STOCK	263683 WASHER IN STOCK	$19.17	1
8	196216	Screw For Damper Fixing IN STOCK	196216 Screw For Damper Fixing IN STOCK	$87.20	1
9	235062	Bearing	235062 Bearing	$46.88	1
10	200323	REAR MAIN OIL SEALING RING D.80-100X10 IN STOCK	200323 REAR MAIN OIL SEALING RING D.80-100X10 Supplied also in the crankcase gasket revision kit (cod. 980020004) IN STOCK	$52.36	1
11	186201	TAB IN STOCK	186201 TAB IN STOCK	$3.57	1
12	192402	CONNECTING ROD SHAFT AND CAP ASSEMBLY	192402 CONNECTING ROD SHAFT AND CAP ASSEMBLY	$465.08	8
13	198412	LH SIDE ENGINE PISTON WITH RINGS	198412 LH SIDE ENGINE PISTON WITH RINGS	$351.37	4
13	198410	RH SIDE ENGINE PISTON WITH RINGS	198410 RH SIDE ENGINE PISTON WITH RINGS	$351.37	4
14	236497	SEAL RING	236497 SEAL RING 1st groove	-	8	Enquire
15	226260	SEAL RING	226260 SEAL RING 2nd groove	$75.12	8
16	COMPLETESETONLY	OIL SCRAPER RING	COMPLETESETONLY OIL SCRAPER RING 3nd groove	-	8	Enquire
17	178890	LOCK RING	178890 LOCK RING	$9.65	16
18	175367	PIN	175367 PIN	$104.60	8
19	184909	BUSHING	184909 BUSHING	$55.48	8
20	177159	CONNECTING ROD TIGHTENING SCREW	177159 CONNECTING ROD TIGHTENING SCREW	$75.97	16
21	190265	CONNECTING ROD HALF-BEARING	190265 CONNECTING ROD HALF-BEARING Yellow	$16.73 MSRP: ~~47.64~~ (64.9% off)	16
21	188520	CONNECTING ROD HALF-BEARING	188520 CONNECTING ROD HALF-BEARING Brown	$7.89	16
21	188521	CONNECTING ROD HALF-BEARING IN STOCK	188521 CONNECTING ROD HALF-BEARING Green- -Standard IN STOCK	$22.27	16

Crankshaft, Connecting Rods And Pistons (Available With: "Spyder 90Th Anniversary" Version)
