Name: EXHAUST SYSTEM (Available with: "Spyder 90th Anniversary" Version)
Rating: 5.0 (1 reviews)

EXHAUST SYSTEM (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

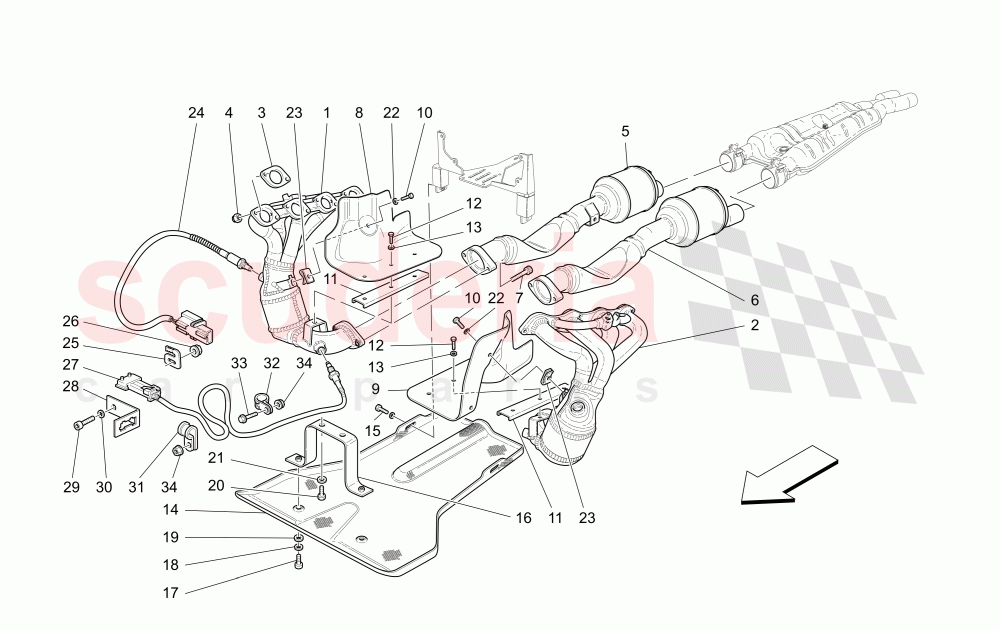

Maserati 4200 Spyder (2005-2007) CC - EXHAUST SYSTEM (Available with: "Spyder 90th Anniversary" Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	188103	RH EXHAUST MANIFOLD	$2,739.54	To Order

Photo	Part No	Description	Price (each)	Stock
	188102	LH EXHAUST MANIFOLD	$2,354.19	To Order

Photo	Part No	Description	Price (each)	Stock
	182868	HEADS AND EXHAUST MANIFOLD GASKET	$5.23	To Order

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	199961	CPL RH CATALYTIC CONVERTER	$1,906.92	To Order

Photo	Part No	Description	Price (each)	Stock
	199962	CPL LH CATALYTIC CONVERTER	$1,809.50	To Order

Photo	Part No	Description	Price (each)	Stock
	195285	SCREW	$14.09	To Order

Photo	Part No	Description	Price (each)	Stock
	190192	LOWER RH ENGINE GUARD (SOUNDFPROOFING)	$39.98	To Order

Photo	Part No	Description	Price (each)	Stock
	190122	L.H. UNDER MOTOR SHIELD	$39.98	To Order

Photo	Part No	Description	Price (each)	Stock
	16286127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191320	BRACKET	$21.54	To Order

Photo	Part No	Description	Price (each)	Stock
	16286127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	190270	UNDER EXHAUST SHIELD	$384.44	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	190271	BRACKET	$57.21	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHERD.6.15-11X1	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHERD.6.15-11X1	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	66704600	CLIP	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lamda Sensor	$316.81	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FIXING BRACKET	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	191412	Rear Lamda Sensor	$413.90	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	CONNECTOR SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	67190200	BRACKET WITH SHEATH	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16296924	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	188103	RH EXHAUST MANIFOLD	188103 RH EXHAUST MANIFOLD	$2,739.54	1
2	188102	LH EXHAUST MANIFOLD	188102 LH EXHAUST MANIFOLD	$2,354.19	1
3	182868	HEADS AND EXHAUST MANIFOLD GASKET	182868 HEADS AND EXHAUST MANIFOLD GASKET Supplied also in the cylinder heads gasket revision kit (cod. 980020001)	$5.23	8
4	138392	Exhaust Brass Locknut M8 x 1.25	138392 Exhaust Brass Locknut M8 x 1.25	$3.93	16
5	199961	CPL RH CATALYTIC CONVERTER	199961 CPL RH CATALYTIC CONVERTER	$1,906.92	1
6	199962	CPL LH CATALYTIC CONVERTER	199962 CPL LH CATALYTIC CONVERTER	$1,809.50	1
7	195285	SCREW	195285 SCREW	$14.09	4
8	190192	LOWER RH ENGINE GUARD (SOUNDFPROOFING)	190192 LOWER RH ENGINE GUARD (SOUNDFPROOFING)	$39.98	1
9	190122	L.H. UNDER MOTOR SHIELD	190122 L.H. UNDER MOTOR SHIELD	$39.98	1
10	16286127	SCREW	16286127 SCREW	-	2	Enquire
11	191320	BRACKET	191320 BRACKET	$21.54	2
12	16286127	SCREW	16286127 SCREW	-	6	Enquire
13	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	$1.62	6
14	190270	UNDER EXHAUST SHIELD	190270 UNDER EXHAUST SHIELD	$384.44	1
15	10977524	SCREW	10977524 SCREW	$1.97	2
16	190271	BRACKET	190271 BRACKET	$57.21	1
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	2
18	12639724	WASHERD.6.15-11X1	12639724 WASHERD.6.15-11X1 D.6.15-11X1	$1.55	2
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.41	2
20	16043224	SCREW	16043224 SCREW	$1.97	2
21	14496524	WASHER	14496524 WASHER D. 8.40-17 X1.6	$2.05	2
22	12639724	WASHERD.6.15-11X1	12639724 WASHERD.6.15-11X1 D.6.15-11X1	$1.55	2
23	66704600	CLIP	66704600 CLIP	$3.53	2
24	182837	Front Lamda Sensor	182837 Front Lamda Sensor	$316.81	2
25	175856	CONNECTOR FIXING BRACKET	175856 CONNECTOR FIXING BRACKET	$5.22	2
26	14039614	NUT	14039614 NUT	$1.54	2
27	191412	Rear Lamda Sensor	191412 Rear Lamda Sensor	$413.90	2
28	185408	CONNECTOR SUPPORT BRACKET	185408 CONNECTOR SUPPORT BRACKET	-	2	Enquire
29	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	2
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
31	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$1.27	1
32	67190200	BRACKET WITH SHEATH	67190200 BRACKET WITH SHEATH	$3.53	2
33	16296924	SCREW	16296924 SCREW	$2.49	2
34	14039614	NUT	14039614 NUT	$1.54	3
