Name: ANTIEVAPORATION SYSTEM
Rating: 4.7 (1 reviews)

ANTIEVAPORATION SYSTEM of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

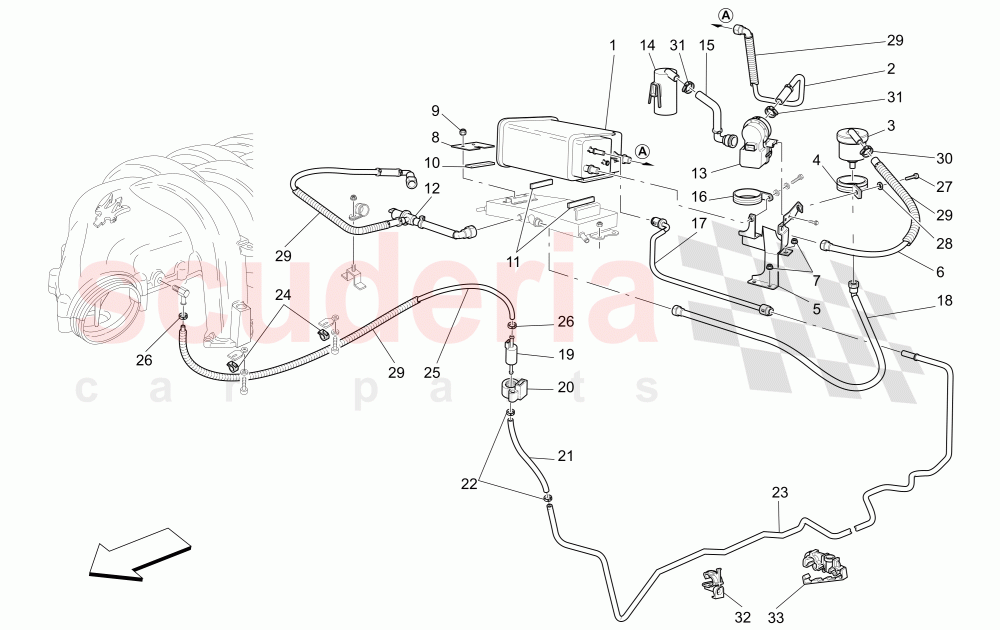

Maserati 4200 Spyder (2005-2007) CC - ANTIEVAPORATION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	220074	Fuel Vapour Filter	$204.19	To Order

Photo	Part No	Description	Price (each)	Stock
	184555	PIPE FROM FUEL VAPOUR FILTER TO PUMP	$236.87	To Order

Photo	Part No	Description	Price (each)	Stock
	180573	ROLL-OVER VALVE	$465.17	To Order

Photo	Part No	Description	Price (each)	Stock
	189894	BRACKET	$321.61	To Order

Photo	Part No	Description	Price (each)	Stock
	189895	BRACKET	$321.61	To Order

Photo	Part No	Description	Price (each)	Stock
	184553	PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	$62.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	186920	BRACKET FOR VAPOR FILTER FIXING	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	184766	RUBBER THICKNESS	$14.09	To Order

Photo	Part No	Description	Price (each)	Stock
	184221	RUBBER THICKNESS	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	186003	PIERBURG VALVE COMPLETE TUBE	$289.19	To Order

Photo	Part No	Description	Price (each)	Stock
	251288	TANK DIAGNOSTIC PUMP	$278.60	To Order

Photo	Part No	Description	Price (each)	Stock
	183221	DIAGNOSTICS PUMP FILTER	$25.85	To Order

Photo	Part No	Description	Price (each)	Stock
	184554	UNIONS COMPLETE TUBE	$567.35	To Order

Photo	Part No	Description	Price (each)	Stock
	189893	BRACKET	$69.46	To Order

Photo	Part No	Description	Price (each)	Stock
	184557	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$28.53	To Order

Photo	Part No	Description	Price (each)	Stock
	187468	PIPE FROM DISAREATOR TO ROLL-OVER	$567.35	To Order

Photo	Part No	Description	Price (each)	Stock
	180861	WASHER VALVE	$95.03	To Order

Photo	Part No	Description	Price (each)	Stock
	174623	BUFFER FOR SUPPORT	$22.17	To Order

Photo	Part No	Description	Price (each)	Stock
	181703	WASHING VALVE INLET TUBE	$10.75	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	190518	COMPLETE UNDERFLOOR TUBE	$37.99	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	CLIP	$152.30	To Order

Photo	Part No	Description	Price (each)	Stock
	181704	WASHING VALVE OUTLET PIPE	$38.75	To Order

Photo	Part No	Description	Price (each)	Stock
	190471	RETAINING CLIP	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	318720333	PIPE	$9.35	To Order

Photo	Part No	Description	Price (each)	Stock
	13433370	COLLAR	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	187840	CLIP	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$5.90	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	220074	Fuel Vapour Filter	220074 Fuel Vapour Filter	$204.19 MSRP: ~~219.55~~ (7% off)	1
2	184555	PIPE FROM FUEL VAPOUR FILTER TO PUMP	184555 PIPE FROM FUEL VAPOUR FILTER TO PUMP	$236.87	1
3	180573	ROLL-OVER VALVE	180573 ROLL-OVER VALVE	$465.17	1
4	189894	BRACKET	189894 BRACKET	$321.61	1
5	189895	BRACKET	189895 BRACKET	$321.61	1
6	184553	PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	184553 PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	$62.55	1
7	14039614	NUT	14039614 NUT	$1.54	4
8	186920	BRACKET FOR VAPOR FILTER FIXING	186920 BRACKET FOR VAPOR FILTER FIXING	$5.90	1
9	14039614	NUT	14039614 NUT	$1.54	2
10	184766	RUBBER THICKNESS	184766 RUBBER THICKNESS	$14.09	1
11	184221	RUBBER THICKNESS	184221 RUBBER THICKNESS	$4.22	2
12	186003	PIERBURG VALVE COMPLETE TUBE	186003 PIERBURG VALVE COMPLETE TUBE	$289.19	1
13	251288	TANK DIAGNOSTIC PUMP	251288 TANK DIAGNOSTIC PUMP	$278.60	1
14	183221	DIAGNOSTICS PUMP FILTER	183221 DIAGNOSTICS PUMP FILTER	$25.85	1
15	184554	UNIONS COMPLETE TUBE	184554 UNIONS COMPLETE TUBE	$567.35	1
16	189893	BRACKET	189893 BRACKET	$69.46	1
17	184557	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	184557 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$28.53	1
18	187468	PIPE FROM DISAREATOR TO ROLL-OVER	187468 PIPE FROM DISAREATOR TO ROLL-OVER	$567.35	1
19	180861	WASHER VALVE	180861 WASHER VALVE	$95.03	1
20	174623	BUFFER FOR SUPPORT	174623 BUFFER FOR SUPPORT	$22.17	1
21	181703	WASHING VALVE INLET TUBE	181703 WASHING VALVE INLET TUBE	$10.75	1
22	13432070	Screw Collar D15.7mm	13432070 Screw Collar D15.7mm	$1.32	2
23	190518	COMPLETE UNDERFLOOR TUBE	190518 COMPLETE UNDERFLOOR TUBE	$37.99	1
24	178430	CLIP	178430 CLIP	$152.30	2
25	181704	WASHING VALVE OUTLET PIPE	181704 WASHING VALVE OUTLET PIPE	$38.75	1
26	190471	RETAINING CLIP	190471 RETAINING CLIP	$3.53	2
27	10977524	SCREW	10977524 SCREW	$1.97	1
28	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D.6.4-11X1.6	$1.62	1
29	318720333	PIPE	318720333 PIPE Supplied in meters- -(Minimum quantity 1m. or multiples)	$9.35	-
30	13433370	COLLAR	13433370 COLLAR	$1.89	1
31	262109	COLLAR	262109 COLLAR	$2.69	2
32	187840	CLIP	187840 CLIP	$3.53	-
33	190409	CLIP	190409 CLIP	$5.90	-
