FUEL PUMPS AND CONNECTION LINES of Maserati Maserati 4200 Spyder (2005-2007) CC

View All

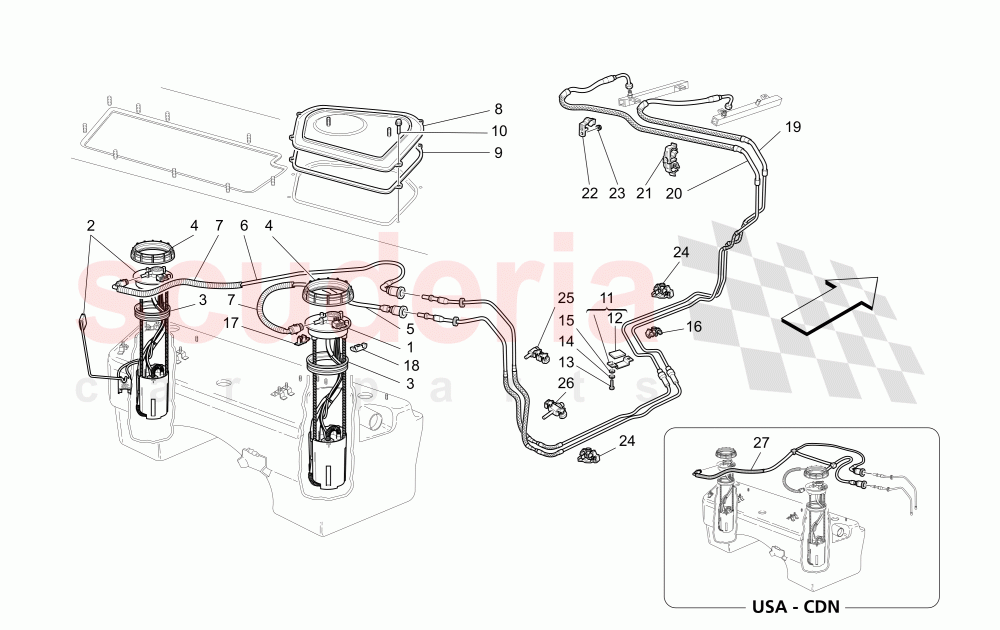

Maserati 4200 Spyder (2005-2007) CC - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

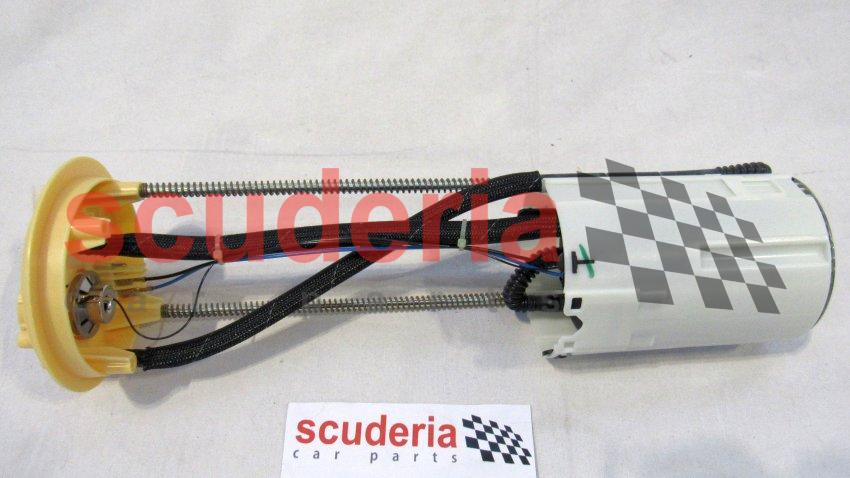

	184348	RH. COMPLETE FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

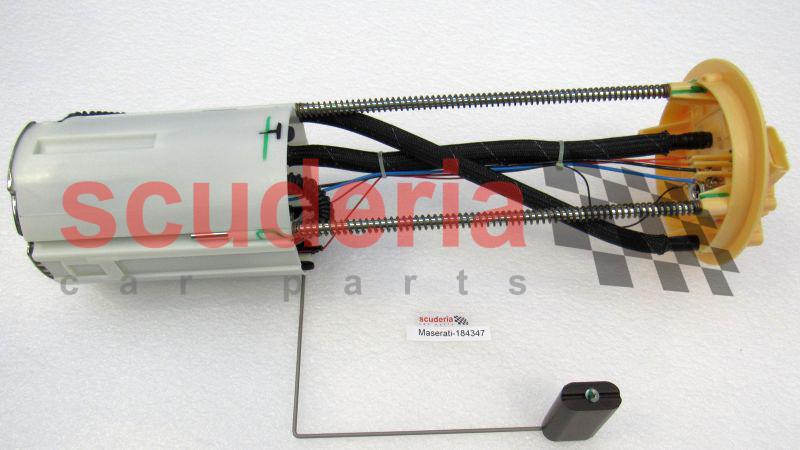

	184347	LH Fuel Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181681	Fuel Pump Gasket	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	181682	FUEL PUMP RETAINER RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197658	L.H. FUEL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197657	R.H. FUEL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97218	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66360600	RH PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66360500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296927	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187464	PIPES PROTECTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387400402	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14447025	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	379200408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389200406	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	379200408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197463	R.H. FUEL DELIVERY PIPE TO FLEXIBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197468	L.H. FUEL DELIVERY PIPE TO FLEXIBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195052	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190410	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191431	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193543	COMPLETE FUEL DELIVERY TUBE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	184348	RH. COMPLETE FUEL PUMP	184348 RH. COMPLETE FUEL PUMP	-	1	Enquire
2	184347	LH Fuel Pump	184347 LH Fuel Pump	-	1	Enquire
3	181681	Fuel Pump Gasket ARRIVING SOON	181681 Fuel Pump Gasket ARRIVING SOON	-	2	Enquire
4	181682	FUEL PUMP RETAINER RING NUT	181682 FUEL PUMP RETAINER RING NUT	-	2	Enquire
5	197658	L.H. FUEL DELIVERY TUBE	197658 L.H. FUEL DELIVERY TUBE Not for USA and CDN	-	1	Enquire
6	197657	R.H. FUEL DELIVERY TUBE	197657 R.H. FUEL DELIVERY TUBE Not for USA and CDN	-	1	Enquire
7	97218	PIPE	97218 PIPE Supplied in meters- -(Minimum quantity 1m. or multiples)	-	-	Enquire
8	66360600	RH PUMP COVER	66360600 RH PUMP COVER	-	1	Enquire
9	66360500	GASKET	66360500 GASKET	-	1	Enquire
10	16296927	SCREW	16296927 SCREW	-	4	Enquire
11	187464	PIPES PROTECTION BRACKET	187464 PIPES PROTECTION BRACKET	-	1	Enquire
12	387400402	GASKET	387400402 GASKET	-	1	Enquire
13	10977824	SCREW	10977824 SCREW	-	2	Enquire
14	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	-	2	Enquire
15	14447025	WASHER	14447025 WASHER	-	2	Enquire
16	379200408	CLIP	379200408 CLIP	-	-	Enquire
17	389200406	CLIP	389200406 CLIP	-	2	Enquire
18	379200408	CLIP	379200408 CLIP	-	1	Enquire
19	197463	R.H. FUEL DELIVERY PIPE TO FLEXIBLE	197463 R.H. FUEL DELIVERY PIPE TO FLEXIBLE	-	1	Enquire
20	197468	L.H. FUEL DELIVERY PIPE TO FLEXIBLE	197468 L.H. FUEL DELIVERY PIPE TO FLEXIBLE	-	1	Enquire
21	195052	CLIP	195052 CLIP	-	2	Enquire
22	159521	CLIP	159521 CLIP	-	1	Enquire
23	14039614	NUT	14039614 NUT	-	1	Enquire
24	190410	CLIP	190410 CLIP	-	-	Enquire
25	191431	CLIP	191431 CLIP	-	-	Enquire
26	191283	CLIP	191283 CLIP	-	-	Enquire
27	193543	COMPLETE FUEL DELIVERY TUBE	193543 COMPLETE FUEL DELIVERY TUBE Valid for USA and CDN	-	1	Enquire
