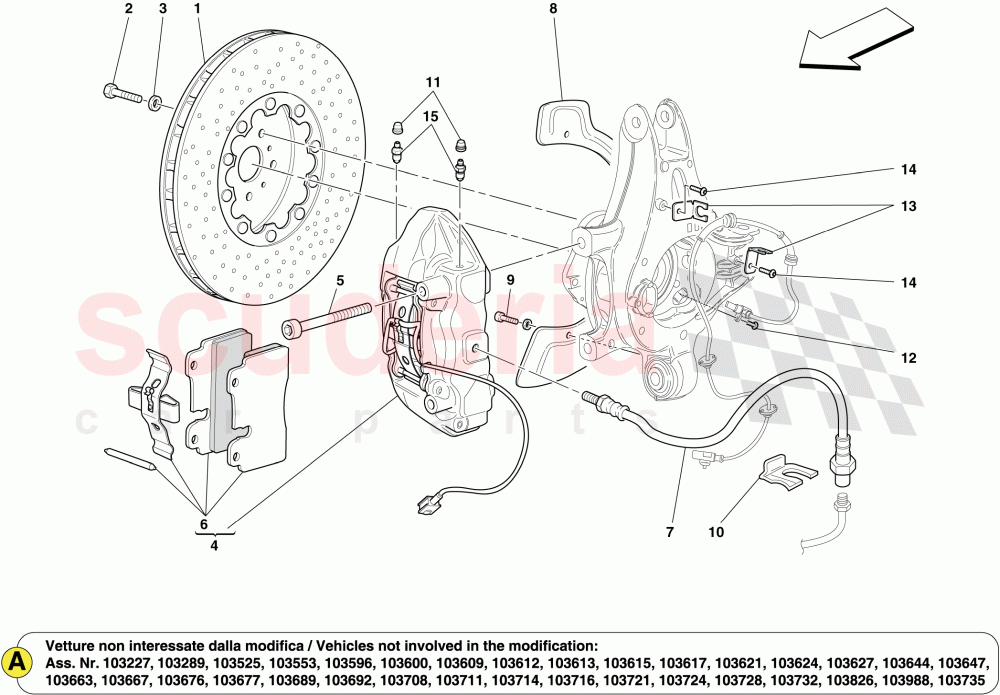

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	304561	Rear Brake Disc	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70002811	Rear Brake Pad Kit	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	777000	BRAKE HOSE	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178938	CABLE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	304561	Rear Brake Disc	304561 Rear Brake Disc Applicable from Ass. No. 107307	-	1	Enquire
2	228131	SCREW	228131 SCREW	-	2	Enquire
2	104370	SCREW	104370 SCREW	-	2	Enquire
3	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
4	276879	COMPL. LH REAR CALLIPER	276879 COMPL. LH REAR CALLIPER Dark grey brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	276880	COMPL. RH REAR CALLIPER	276880 COMPL. RH REAR CALLIPER Dark grey brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
5	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95	-	4	Enquire

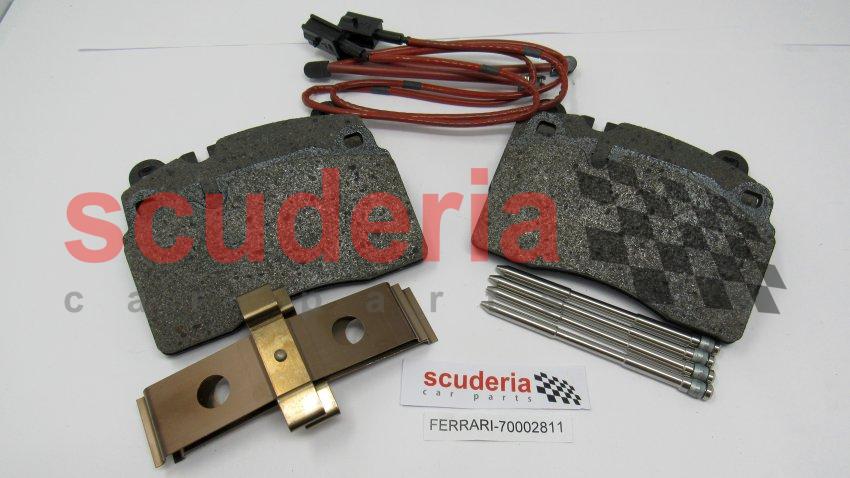

6	70002811	Rear Brake Pad Kit ARRIVING SOON	70002811 Rear Brake Pad Kit Applicable from Ass. No. 110524; Applicable after depletion of 70001669 ARRIVING SOON	-	1	Enquire
7	777000	BRAKE HOSE ARRIVING SOON	777000 BRAKE HOSE not affected by modification; Applicable from Ass. No. 103179 ARRIVING SOON	-	2	Enquire
9	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	6	Enquire
10	116374	CLIP	116374 CLIP	-	2	Enquire
11	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
12	229324	SCREW	229324 SCREW	-	2	Enquire
13	178938	CABLE MOUNTING	178938 CABLE MOUNTING	-	4	Enquire
14	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	4	Enquire
15	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
