FRONT SUSPENSION of Ferrari Ferrari California (2012-2014)

View All

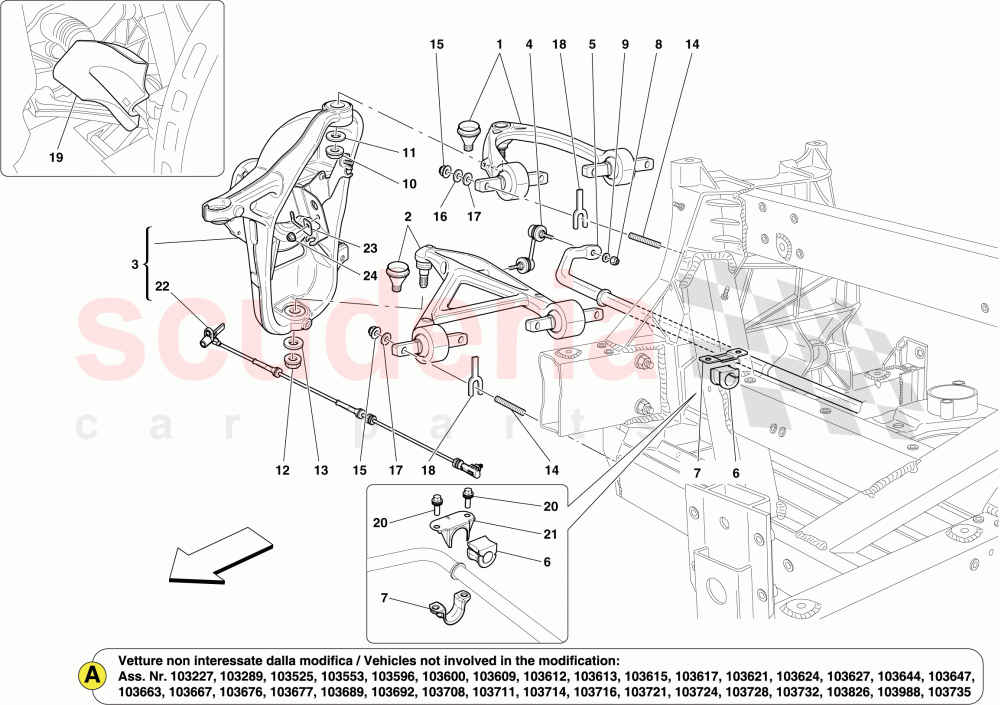

Ferrari California (2012-2014) - FRONT SUSPENSION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248758	LH Front Upper Arm	Enquire	To Order
	248760	RH Front Upper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264523	Lower LH Front Arm	Enquire	To Order
	264524	Lower RH Front Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275964	COMPL. LH FRONT HUB CARRIER	Enquire	To Order
	273071	LH FRONT HUB CARRIER	Enquire	To Order
	287186	Front LH Hub Carrier	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	247950	LH SPHERICAL TIE-ROD	Enquire	To Order
	221933	LH BALL TIE ROD JOINT	Enquire	To Order
	247952	RH SPHERICAL TIE-ROD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	284738	STABILISER BAR	Enquire	To Order
	273633	STABILISER BAR	Enquire	To Order
	250809	ANTI-ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257806	BUSH FOR BAR	Enquire	To Order
	208304	Roll Bar Rubber D.26X38	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245822	BUSHING RETAINER PLATE	Enquire	To Order
	238041	PAD FASTENING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238885	CAMBER SPACER 4MM	Enquire	To Order
	238884	ADJUSTMENT SHIM	Enquire	To Order
	238883	ADJUSTMENT SHIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	247997	LH BRAKE AIR FLAP	Enquire	To Order
	247998	RH BRAKE AIR FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286144	BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259615	ABS SENSOR	Enquire	To Order
	269415	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248758	LH Front Upper Arm	248758 LH Front Upper Arm	-	1	Enquire
1	248760	RH Front Upper Arm	248760 RH Front Upper Arm	-	1	Enquire
2	264523	Lower LH Front Arm	264523 Lower LH Front Arm Special Handling Pack	-	1	Enquire
2	264524	Lower RH Front Arm	264524 Lower RH Front Arm Special Handling Pack	-	1	Enquire
3	275964	COMPL. LH FRONT HUB CARRIER	275964 COMPL. LH FRONT HUB CARRIER not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
3	273071	LH FRONT HUB CARRIER	273071 LH FRONT HUB CARRIER Applicable up to Ass. No. 103178; Applicable after depletion of 260255	-	1	Enquire
3	287186	Front LH Hub Carrier	287186 Front LH Hub Carrier Applicable up to Ass. No. 86527	-	1	Enquire
3	275965	COMPL. RH FRONT HUB CARRIER	275965 COMPL. RH FRONT HUB CARRIER not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
3	273072	COMPL. RH FRONT HUB CARRIER	273072 COMPL. RH FRONT HUB CARRIER Applicable up to Ass. No. 103178; Applicable after depletion of 260256	-	1	Enquire
3	248845	COMPLETE FRONT RH HUB CARRIER	248845 COMPLETE FRONT RH HUB CARRIER Applicable up to Ass. No. 86527	-	1	Enquire
4	247950	LH SPHERICAL TIE-ROD	247950 LH SPHERICAL TIE-ROD not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
4	221933	LH BALL TIE ROD JOINT	221933 LH BALL TIE ROD JOINT Applicable up to Ass. No. 103178	-	1	Enquire
4	247952	RH SPHERICAL TIE-ROD	247952 RH SPHERICAL TIE-ROD not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
4	221934	RH BALL TIE ROD JOINT	221934 RH BALL TIE ROD JOINT Applicable up to Ass. No. 103178	-	1	Enquire
5	284738	STABILISER BAR	284738 STABILISER BAR Special Handling Pack	-	1	Enquire
5	273633	STABILISER BAR	273633 STABILISER BAR not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
5	250809	ANTI-ROLL BAR	250809 ANTI-ROLL BAR Applicable up to Ass. No. 103178	-	1	Enquire
6	257806	BUSH FOR BAR	257806 BUSH FOR BAR not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
6	208304	Roll Bar Rubber D.26X38	208304 Roll Bar Rubber D.26X38 Applicable up to Ass. No. 103178	-	2	Enquire
7	245822	BUSHING RETAINER PLATE	245822 BUSHING RETAINER PLATE not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
7	238041	PAD FASTENING PLATE	238041 PAD FASTENING PLATE Applicable up to Ass. No. 103178	-	2	Enquire
8	10791014	NUT	10791014 NUT	-	2	Enquire
9	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
10	149807	NUT	149807 NUT	-	2	Enquire
11	12646921	WASHER	12646921 WASHER	-	2	Enquire
12	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
13	241689	WASHER	241689 WASHER	-	2	Enquire
14	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	16	Enquire
15	12574521	Nyloc Nut	12574521 Nyloc Nut	-	16	Enquire
16	12646821	WASHER	12646821 WASHER	-	8	Enquire
17	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	16	Enquire
18	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm	-	8	Enquire
18	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm	-	8	Enquire
18	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm	-	8	Enquire
18	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm	-	8	Enquire
18	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm	-	8	Enquire
18	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm	-	8	Enquire
18	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm	-	8	Enquire
18	238692	ADJUSTMENT SHIM	238692 ADJUSTMENT SHIM Th. 0.5 mm	-	8	Enquire
19	247997	LH BRAKE AIR FLAP	247997 LH BRAKE AIR FLAP Applicable until depletion	-	1	Enquire
19	247998	RH BRAKE AIR FLAP	247998 RH BRAKE AIR FLAP Applicable until depletion	-	1	Enquire
20	264117	SCREW	264117 SCREW not affected by modification; Applicable from Ass. No. 103179	-	4	Enquire
21	286144	BUSHING MOUNT	286144 BUSHING MOUNT not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
22	259615	ABS SENSOR	259615 ABS SENSOR not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
22	269415	ABS SENSOR	269415 ABS SENSOR Applicable up to Ass. No. 103178	-	2	Enquire
23	162606	CLIP	162606 CLIP	-	2	Enquire
24	13046011	NUT	13046011 NUT	-	2	Enquire
