FRONT WHEEL BRAKE SYSTEM COMPONENTS of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - FRONT WHEEL BRAKE SYSTEM COMPONENTS

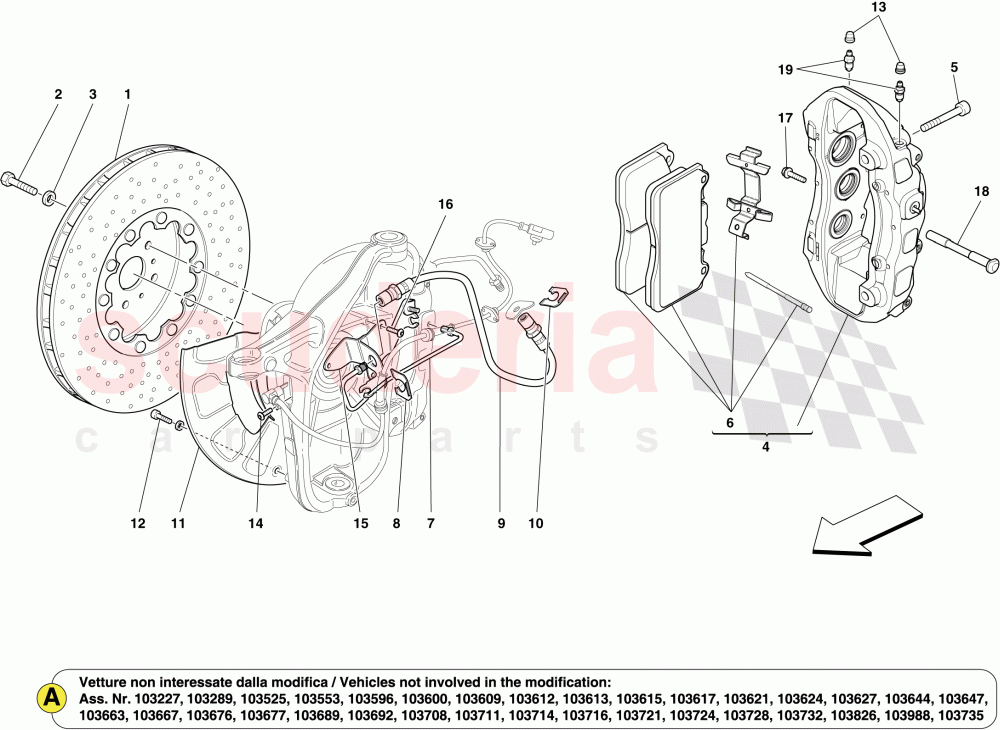

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276875	COMPL. LH FRONT CALLIPER	Enquire	To Order
	276876	COMPL. RH FRONT CALLIPER	Enquire	To Order
	251509	COMPL. LH FRONT CALLIPER	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274701	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order
	252366	LH BRAKE PIPE	Enquire	To Order
	274703	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777000	BRAKE HOSE	Enquire	ARRIVING SOON
	271771	PIPE	Enquire	To Order
	268658	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260675	LH FRONT BRAKE DISC SHIELD	Enquire	To Order
	260258	FRONT LH DISC SHIELD	Enquire	To Order
	260258	FRONT LH DISC SHIELD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275956	LH BRACKET	Enquire	To Order
	251084	LH BRACKET	Enquire	To Order
	275958	RH BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198015	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	104370	SCREW	104370 SCREW	-	2	Enquire
2	228131	SCREW	228131 SCREW	-	2	Enquire
3	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
4	276875	COMPL. LH FRONT CALLIPER	276875 COMPL. LH FRONT CALLIPER Dark grey brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	276876	COMPL. RH FRONT CALLIPER	276876 COMPL. RH FRONT CALLIPER Dark grey brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251509	COMPL. LH FRONT CALLIPER	251509 COMPL. LH FRONT CALLIPER Anodised Black brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251514	COMPL. RH FRONT CALLIPER	251514 COMPL. RH FRONT CALLIPER Anodised Black brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251513	COMPLETE L.H. FRONT CALIPER	251513 COMPLETE L.H. FRONT CALIPER Scuderia Red brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251512	COMPLETE L.H. FRONT CALIPER	251512 COMPLETE L.H. FRONT CALIPER Modena Yellow brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251511	COMPLETE L.H. FRONT CALIPER	251511 COMPLETE L.H. FRONT CALIPER Aluminium Grey brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251510	COMPLETE L.H. FRONT CALIPER	251510 COMPLETE L.H. FRONT CALIPER Corsa Red brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251492	COMPLETE L.H. FRONT CALIPER	251492 COMPLETE L.H. FRONT CALIPER Gloss Black brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251519	COMPLETE R.H. FRONT CALIPER	251519 COMPLETE R.H. FRONT CALIPER Scuderia Red brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251518	COMPLETE R.H. FRONT CALIPER	251518 COMPLETE R.H. FRONT CALIPER Modena Yellow brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251517	COMPLETE R.H. FRONT CALIPER	251517 COMPLETE R.H. FRONT CALIPER Aluminium Grey brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251516	COMPLETE R.H. FRONT CALIPER	251516 COMPLETE R.H. FRONT CALIPER Corsa Red brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
4	251515	COMPLETE R.H. FRONT CALIPER	251515 COMPLETE R.H. FRONT CALIPER Gloss Black brake callipers; Applicable up to Ass. No. 103178	-	1	Enquire
5	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95	-	4	Enquire
7	274701	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	274701 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
7	252366	LH BRAKE PIPE	252366 LH BRAKE PIPE Applicable up to Ass. No. 103178	-	1	Enquire
7	274703	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	274703 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
7	252372	RH BRAKE PIPE	252372 RH BRAKE PIPE Applicable up to Ass. No. 103178	-	1	Enquire
8	234284	CLIP	234284 CLIP	-	2	Enquire
9	777000	BRAKE HOSE ARRIVING SOON	777000 BRAKE HOSE not affected by modification; Applicable from Ass. No. 103179 ARRIVING SOON	-	2	Enquire
9	271771	PIPE	271771 PIPE Applicable from Ass. No. 95334 up to Ass. No. 103178; Applicable after depletion of 116373	-	2	Enquire
9	268658	RUBBER PIPE	268658 RUBBER PIPE Applicable up to Ass. No. 95333; Applicable until depletion	-	2	Enquire
10	116374	CLIP	116374 CLIP	-	2	Enquire
11	260675	LH FRONT BRAKE DISC SHIELD	260675 LH FRONT BRAKE DISC SHIELD not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
11	260258	FRONT LH DISC SHIELD	260258 FRONT LH DISC SHIELD Applicable from Ass. No. 86528 up to Ass. No. 103178	-	1	Enquire
11	260258	FRONT LH DISC SHIELD	260258 FRONT LH DISC SHIELD Applicable up to Ass. No. 86527	-	1	Enquire
11	260676	RH FRONT BRAKE DISC SHIELD	260676 RH FRONT BRAKE DISC SHIELD not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
11	260259	FRONT RH DISC SHIELD	260259 FRONT RH DISC SHIELD Applicable from Ass. No. 86528 up to Ass. No. 103178	-	1	Enquire
11	260259	FRONT RH DISC SHIELD	260259 FRONT RH DISC SHIELD Applicable up to Ass. No. 86527	-	1	Enquire
12	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	4	Enquire
13	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
14	229324	SCREW	229324 SCREW	-	2	Enquire
15	275956	LH BRACKET	275956 LH BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
15	251084	LH BRACKET	251084 LH BRACKET Applicable up to Ass. No. 103178	-	1	Enquire
15	275958	RH BRACKET	275958 RH BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
15	251085	RH BRACKET	251085 RH BRACKET Applicable up to Ass. No. 103178	-	1	Enquire
16	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	4	Enquire
17	198014	SCREW	198014 SCREW	-	2	Enquire
18	198015	TIE-ROD	198015 TIE-ROD	-	2	Enquire
19	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
