COMPLETE PEDAL BOARD ASSEMBLY -Applicable for DCT gearbox- of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - COMPLETE PEDAL BOARD ASSEMBLY -Applicable for DCT gearbox-

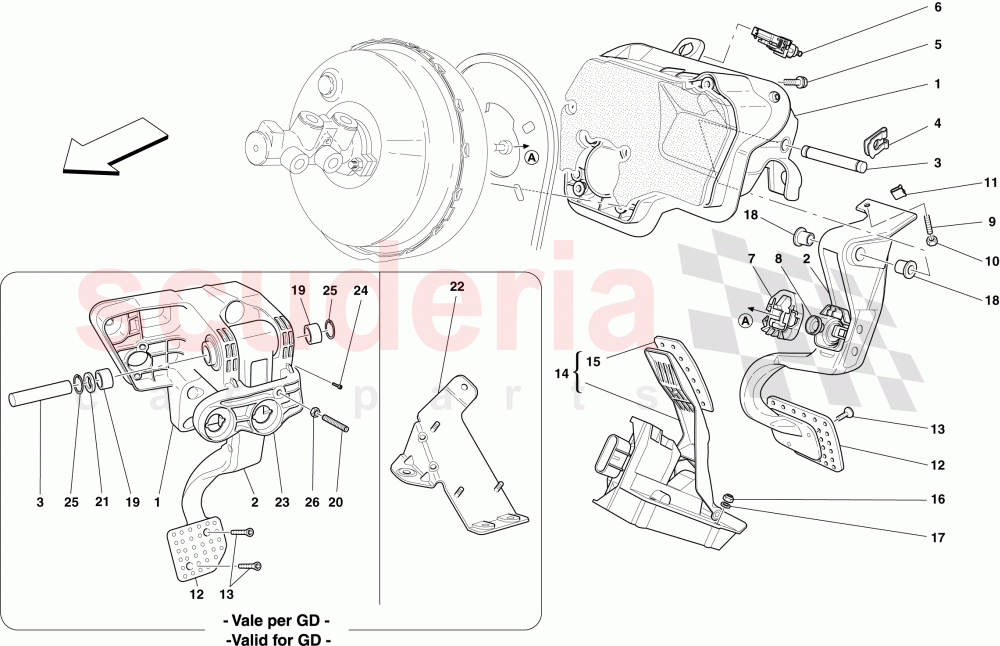

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	240760	PEDAL SUPPORT	Enquire	To Order
	263503	PEDAL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241360	BRAKE PEDAL	Enquire	To Order
	191805	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240930	PIN	Enquire	To Order
	189870	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11064474	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189863	BRAKE PEDAL RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189864	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13808031	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14186271	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191401	DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243117	FLOOR HINGED ACCELERATOR PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243120	ACCELERATOR PEDAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189869	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147640	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240764	BRAKE PEDAL ADJUSTER LUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240929	RUBBER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82467100	ACCELERATOR PEDAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240773	SWITCH MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240931	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12700076	SEEGER RING FOR SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	240760	PEDAL SUPPORT	240760 PEDAL SUPPORT Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
1	263503	PEDAL SUPPORT	263503 PEDAL SUPPORT Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for GD	-	1	Enquire
2	241360	BRAKE PEDAL	241360 BRAKE PEDAL Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
2	191805	BRAKE PEDAL	191805 BRAKE PEDAL Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for GD	-	1	Enquire
3	240930	PIN	240930 PIN Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
3	189870	PIN	189870 PIN Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for GD	-	1	Enquire
4	11064474	CLIP	11064474 CLIP Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
5	16287524	SCREW	16287524 SCREW Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
6	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
7	189863	BRAKE PEDAL RETAINER	189863 BRAKE PEDAL RETAINER Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
8	189864	STOP CAP	189864 STOP CAP Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
9	13808031	DOWEL	13808031 DOWEL Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for GD	-	1	Enquire
10	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for GD	-	1	Enquire
11	14186271	CLIP	14186271 CLIP Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
12	191401	DRILLED PLATE	191401 DRILLED PLATE Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
13	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
14	243117	FLOOR HINGED ACCELERATOR PEDAL	243117 FLOOR HINGED ACCELERATOR PEDAL Applicable for DCT gearbox	-	1	Enquire
15	243120	ACCELERATOR PEDAL PLATE	243120 ACCELERATOR PEDAL PLATE Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	3	Enquire
17	12643724	WASHER	12643724 WASHER Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	3	Enquire
18	189869	BUSHING	189869 BUSHING Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
19	147640	GASKET	147640 GASKET Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	2	Enquire
20	240764	BRAKE PEDAL ADJUSTER LUG	240764 BRAKE PEDAL ADJUSTER LUG Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
21	240929	RUBBER WASHER	240929 RUBBER WASHER Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
22	82467100	ACCELERATOR PEDAL BRACKET	82467100 ACCELERATOR PEDAL BRACKET Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
23	240773	SWITCH MOUNTING BRACKET	240773 SWITCH MOUNTING BRACKET Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
24	240931	SCREW	240931 SCREW Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	2	Enquire
25	12700076	SEEGER RING FOR SHAFT	12700076 SEEGER RING FOR SHAFT Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	2	Enquire
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
