Evaporative Emissions Control System

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - EVAPORATIVE EMISSIONS CONTROL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220074 FUEL VAPOUR FILTER $210.90 IN STOCK
Photo Part No Description Price (each) Stock
253150 CARBON CANISTER BRACKET $609.73 To Order
Photo Part No Description Price (each) Stock
242634 BRACKET $142.71 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
225354 RUBBER SHIM $2.54 To Order
Photo Part No Description Price (each) Stock
217156 RUBBER SHIM $0.76 To Order
Photo Part No Description Price (each) Stock
183221 OBD PUMP FILTER $22.38 To Order
Photo Part No Description Price (each) Stock
15903870 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
253148 PIPE FROM OBD PUMP TO FILTER $561.59 IN STOCK
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $11.69 IN STOCK
13433370 Screw Collar $0.86 IN STOCK
Photo Part No Description Price (each) Stock
248970 PIPE FROM CANISTER TO OBD PUMP $51.33 To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $11.69 IN STOCK
Photo Part No Description Price (each) Stock
251288 Diagnostic Pump $364.24 IN STOCK
Photo Part No Description Price (each) Stock
241750 DIAGNOSTIC PUMP BRACKET $15.24 To Order
Photo Part No Description Price (each) Stock
15903870 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
81963200 VAPOR FILTER COVER $73.80 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.79 IN STOCK
Photo Part No Description Price (each) Stock
254492 PIPE FROM DISAREATOR TO CANISTER $59.35 To Order
Photo Part No Description Price (each) Stock
279103 PIPE FROM TANK TO SEPARATOR $609.73 To Order
253529 PIPE FROM TANK TO SEPARATOR $62.56 To Order
Photo Part No Description Price (each) Stock
278677 UNDERBODY PIPE $44.91 To Order
262057 UNDERFLOOR PIPE $56.14 To Order
262057 UNDERFLOOR PIPE $56.14 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
280876 PIPE FROM UNDERBODY TO JUNCTION $59.35 To Order
259533 PIPE FROM UNDERFLOOR TO CONNECTION $38.49 To Order
262059 PIPE FROM UNDERFLOOR TO CONNECTION $52.94 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
280945 PIPE FROM JUNCTION TO FLUSH VALVE $80.21 To Order
259534 PIPE FROM JOINT TO FLUSH VALVE $65.77 To Order
259534 PIPE FROM JOINT TO FLUSH VALVE $65.77 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
254425 FLUSH VALVE $48.12 IN STOCK
Photo Part No Description Price (each) Stock
258429 FLUSH VALVE PIPE $192.54 To Order
279672 FLUSH VALVE PIPE $160.44 To Order
Photo Part No Description Price (each) Stock
192314 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
254427 CLIP $0.39 IN STOCK
Photo Part No Description Price (each) Stock
253583 DISAREATOR $224.63 To Order
Photo Part No Description Price (each) Stock
339890 AIR FILTER GAITER $545.55 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.78 IN STOCK
Photo Part No Description Price (each) Stock
283323 AIR FILTER INTAKE PIPE $112.31 To Order
253155 AIR FILTER INTAKE PIPE $109.10 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $2.14 IN STOCK
Photo Part No Description Price (each) Stock
253157 BRACKET $133.17 To Order
Photo Part No Description Price (each) Stock
14058319 NUT $0.36 IN STOCK
Photo Part No Description Price (each) Stock
13839224 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
255515 BUSH $2.07 IN STOCK
View All

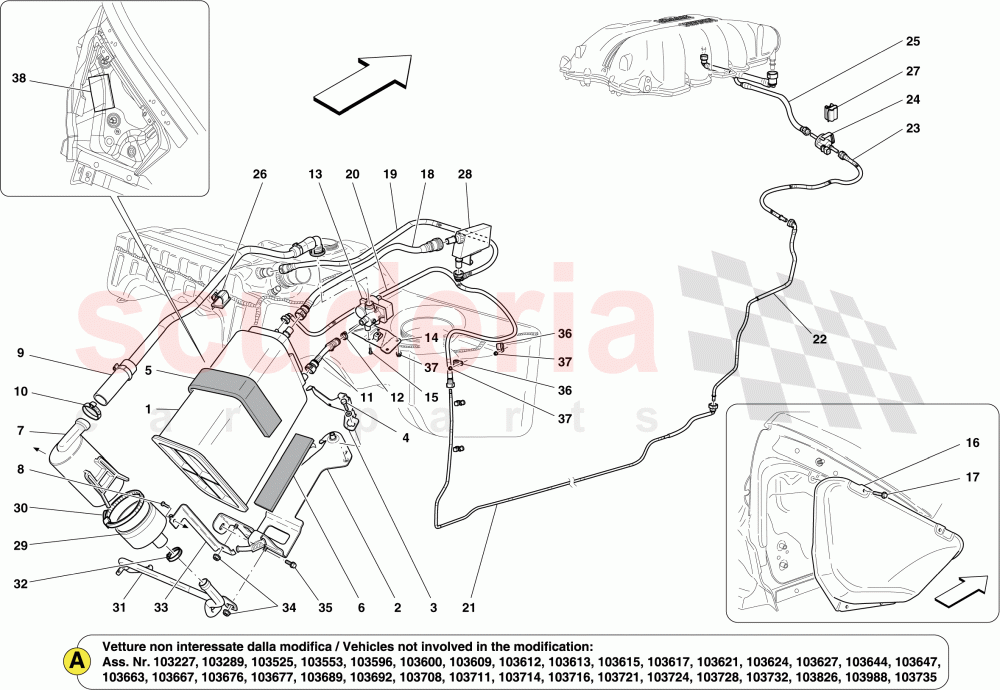

EVAPORATIVE EMISSIONS CONTROL SYSTEM of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220074
FUEL VAPOUR FILTER
IN STOCK 		$210.90 1
2 253150
CARBON CANISTER BRACKET 		$609.73 1
3 242634
BRACKET 		$142.71 1
4 11568124
SCREW
IN STOCK 		$0.96 1
5 225354
RUBBER SHIM 		$2.54 1
6 217156
RUBBER SHIM 		$0.76 1
7 183221
OBD PUMP FILTER 		$22.38 1
8 15903870
SCREW
IN STOCK 		$0.31 1
9 253148
PIPE FROM OBD PUMP TO FILTER
IN STOCK 		$561.59 1
10 13432870
COLLAR FOR HOSE UNION
IN STOCK 		$11.69 1
10 13433370
Screw Collar
No longer supplied; Replaced by 13432670
IN STOCK 		$0.86 1
11 248970
PIPE FROM CANISTER TO OBD PUMP 		$51.33 1
12 13432870
COLLAR FOR HOSE UNION
IN STOCK 		$11.69 1
13 251288
Diagnostic Pump
IN STOCK 		$364.24 1
14 241750
DIAGNOSTIC PUMP BRACKET 		$15.24 1
15 15903870
SCREW
IN STOCK 		$0.31 3
16 81963200
VAPOR FILTER COVER 		$73.80 1
17 16284934
FLANGED SCREW
IN STOCK 		$0.79 2
18 254492
PIPE FROM DISAREATOR TO CANISTER 		$59.35 1
19 279103
PIPE FROM TANK TO SEPARATOR
not affected by modification; Applicable from Ass. No. 103179 		$609.73 1
19 253529
PIPE FROM TANK TO SEPARATOR
Applicable up to Ass. No. 103178 		$62.56 1
21 278677
UNDERBODY PIPE
not affected by modification; Applicable from Ass. No. 103179 		$44.91 1
21 262057
UNDERFLOOR PIPE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 		$56.14 1
21 262057
UNDERFLOOR PIPE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 		$56.14 1
21 262057
UNDERFLOOR PIPE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$56.14 1
21 248965
UNDERFLOOR PIPE
Applicable for Mechanical gearbox 		$102.68 1
21 248965
UNDERFLOOR PIPE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$102.68 1
21 248965
UNDERFLOOR PIPE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$102.68 1
21 248965
UNDERFLOOR PIPE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$102.68 1
22 280876
PIPE FROM UNDERBODY TO JUNCTION
not affected by modification; Applicable from Ass. No. 103179 		$59.35 1
22 259533
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for Mechanical gearbox 		$38.49 1
22 262059
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 		$52.94 1
22 262059
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 		$52.94 1
22 262059
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$52.94 1
22 259533
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$38.49 1
22 259533
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$38.49 1
22 259533
PIPE FROM UNDERFLOOR TO CONNECTION
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$38.49 1
23 280945
PIPE FROM JUNCTION TO FLUSH VALVE
not affected by modification; Applicable from Ass. No. 103179 		$80.21 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for Mechanical gearbox 		$65.77 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 		$65.77 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 		$65.77 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$65.77 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$65.77 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$65.77 1
23 259534
PIPE FROM JOINT TO FLUSH VALVE
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$65.77 1
24 254425
FLUSH VALVE
IN STOCK 		$48.12 (27.5% off) 1
25 258429
FLUSH VALVE PIPE
Applicable up to Ass. No. 103178 		$192.54 1
25 279672
FLUSH VALVE PIPE
not affected by modification; Applicable from Ass. No. 103179 		$160.44 1
26 192314
CLIP 		$0.31 1
27 254427
CLIP
IN STOCK 		$0.39 1
28 253583
DISAREATOR 		$224.63 1
29 339890
AIR FILTER GAITER 		$545.55 1
30 13000790
SCREW COLLAR
IN STOCK 		$0.78 (65.3% off) 1
31 283323
AIR FILTER INTAKE PIPE
not affected by modification; Applicable from Ass. No. 103179 		$112.31 1
31 253155
AIR FILTER INTAKE PIPE
Applicable up to Ass. No. 103178 		$109.10 1
32 13127070
COLLAR
IN STOCK 		$2.14 1
33 253157
BRACKET 		$133.17 1
34 14058319
NUT
IN STOCK 		$0.36 2
35 13839224
SCREW 		$2.82 2
36 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.57 (66.1% off) 3
37 14059211
NUT
IN STOCK 		$0.06 7
38 255515
BUSH
IN STOCK 		$2.07 1
