FUEL TANK of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - FUEL TANK

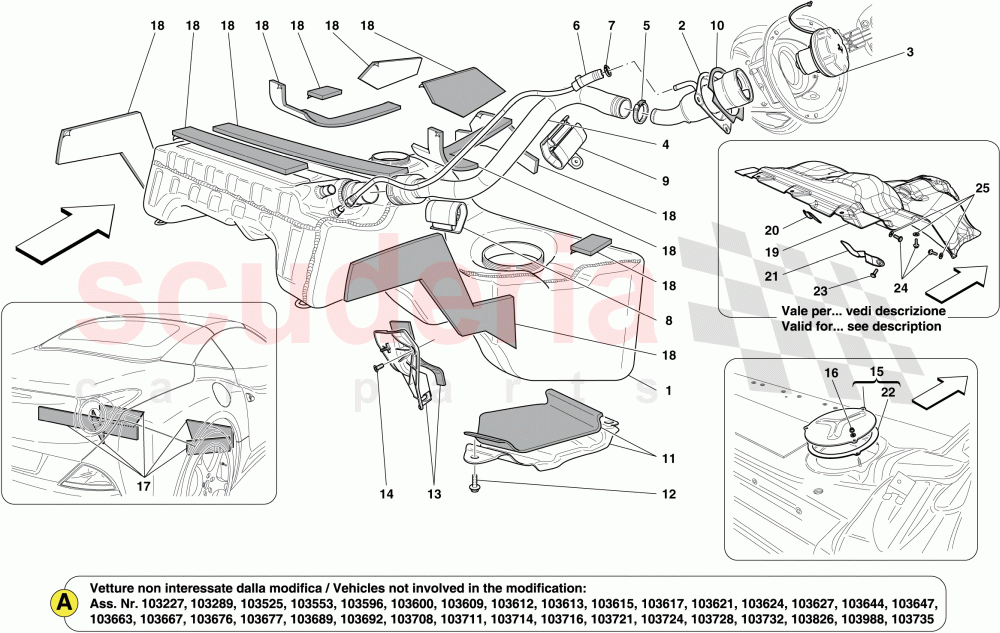

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	269702	FUEL TANK	Enquire	To Order
	274575	FUEL TANK	Enquire	To Order
	281365	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264866	COMPLETE FUEL FILLER NECK	Enquire	To Order
	264527	COMPLETE FUEL FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241595	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241085	UNION-TANK CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279102	VAPOUR RECIRCULATION PIPE	Enquire	To Order
	240222	VAPORS RECYCLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240223	GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246335	PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241064	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274025	RH FRONT TANK MOUNTING BRACKET	Enquire	To Order
	244608	R.H. FRONT BRACKET FOR FUEL SUPPORT	Enquire	To Order
	274023	LH FRONT TANK MOUNTING BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289800	RH REAR TANK MOUNTING BRACKET	Enquire	To Order
	252968	R.H. REAR BRACKET FOR FUEL SUPPORT	Enquire	To Order
	289799	LH REAR TANK MOUNTING BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16286324	SCREW	Enquire	To Order
	14442021	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272714	COMPL. REAR INSPECTION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228659	FUEL TANK SUPPORT PAD KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269715	FUEL TANK VIBRATION DAMPER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278569	LH TANK INSULATION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278570	RH TANK INSULATION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244764	REAR INSPECTION COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	269702	FUEL TANK	269702 FUEL TANK Applicable for HELE; Applicable for Stop & Start; not affected by modification; No longer supplied. Order complete tank, table 7 pos.53; Applicable from Ass. No. 103179	-	1	Enquire
1	274575	FUEL TANK	274575 FUEL TANK Applicable for HELE; Applicable for Stop & Start; No longer supplied. Order complete tank, table 7 pos.53; Applicable up to Ass. No. 103178	-	1	Enquire
1	281365	FUEL TANK	281365 FUEL TANK Not for HELE; Not for Stop & Start; not affected by modification; No longer supplied. Order complete tank, table 7 pos.53; Applicable from Ass. No. 103179	-	1	Enquire
2	264866	COMPLETE FUEL FILLER NECK	264866 COMPLETE FUEL FILLER NECK Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	264527	COMPLETE FUEL FILLER NECK	264527 COMPLETE FUEL FILLER NECK Not for USA, CDN, USA LIGHT	-	1	Enquire
3	241595	TANK PLUG	241595 TANK PLUG	-	1	Enquire
4	241085	UNION-TANK CONNECTING PIPE	241085 UNION-TANK CONNECTING PIPE	-	1	Enquire
5	11449470	COLLAR	11449470 COLLAR	-	1	Enquire
6	279102	VAPOUR RECIRCULATION PIPE	279102 VAPOUR RECIRCULATION PIPE not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
6	240222	VAPORS RECYCLING PIPE	240222 VAPORS RECYCLING PIPE Applicable up to Ass. No. 103178	-	1	Enquire
7	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
8	240223	GUARD	240223 GUARD	-	1	Enquire
9	246335	PROTECTION	246335 PROTECTION	-	1	Enquire
10	241064	GASKET	241064 GASKET	-	1	Enquire
11	274025	RH FRONT TANK MOUNTING BRACKET	274025 RH FRONT TANK MOUNTING BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
11	244608	R.H. FRONT BRACKET FOR FUEL SUPPORT	244608 R.H. FRONT BRACKET FOR FUEL SUPPORT Applicable up to Ass. No. 103178	-	1	Enquire
11	274023	LH FRONT TANK MOUNTING BRACKET	274023 LH FRONT TANK MOUNTING BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
11	244607	L.H. FRONT BRACKET FOR FUEL SUPPORT	244607 L.H. FRONT BRACKET FOR FUEL SUPPORT Applicable up to Ass. No. 103178	-	1	Enquire
12	13839224	SCREW	13839224 SCREW not affected by modification; Applicable from Ass. No. 103179	-	6	Enquire
12	13839224	SCREW	13839224 SCREW Applicable up to Ass. No. 103178	-	6	Enquire
13	289800	RH REAR TANK MOUNTING BRACKET	289800 RH REAR TANK MOUNTING BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
13	252968	R.H. REAR BRACKET FOR FUEL SUPPORT	252968 R.H. REAR BRACKET FOR FUEL SUPPORT Applicable up to Ass. No. 103178	-	1	Enquire
13	289799	LH REAR TANK MOUNTING BRACKET	289799 LH REAR TANK MOUNTING BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
13	252965	L.H. REAR BRACKET FOR FUEL SUPPORT	252965 L.H. REAR BRACKET FOR FUEL SUPPORT Applicable up to Ass. No. 103178	-	1	Enquire
14	16286324	SCREW	16286324 SCREW not affected by modification; Applicable from Ass. No. 103179	-	4	Enquire
14	14442021	SCREW	14442021 SCREW Applicable up to Ass. No. 103178	-	4	Enquire
15	272714	COMPL. REAR INSPECTION COVER	272714 COMPL. REAR INSPECTION COVER	-	1	Enquire
16	13046011	NUT	13046011 NUT	-	3	Enquire
17	228659	FUEL TANK SUPPORT PAD KIT	228659 FUEL TANK SUPPORT PAD KIT	-	1	Enquire
18	269715	FUEL TANK VIBRATION DAMPER KIT	269715 FUEL TANK VIBRATION DAMPER KIT not affected by modification; Included with complete tank table 7 pos. 53; Applicable from Ass. No. 103179	-	1	Enquire
20	278569	LH TANK INSULATION BRACKET	278569 LH TANK INSULATION BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
21	278570	RH TANK INSULATION BRACKET	278570 RH TANK INSULATION BRACKET not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
22	244764	REAR INSPECTION COVER SEAL	244764 REAR INSPECTION COVER SEAL	-	1	Enquire
23	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
24	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 not affected by modification; Applicable from Ass. No. 103179	-	3	Enquire
25	67315400	WASHER	67315400 WASHER not affected by modification; Applicable from Ass. No. 103179	-	3	Enquire
