COOLING: HEADER TANK AND PIPES of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - COOLING: HEADER TANK AND PIPES

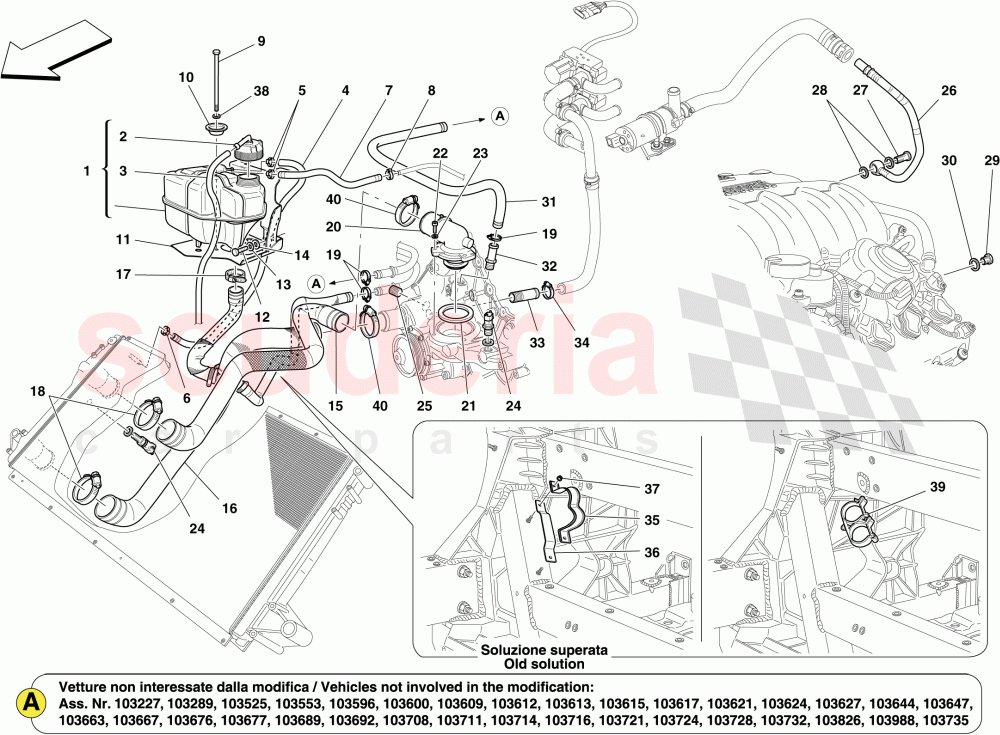

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	225992	Expansion Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145477	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252752	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237540	Vent Pipe From Expansion Tank to Radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247800	VENT PIPE FROM EXPANSION TANK TO BUNDY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254717	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82404496	CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043436	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647121	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275654	DELIVERY PIPE FROM ENGINE TO RADIATOR	Enquire	To Order
	244779	DELIVERY PIPE FROM ENGINE TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272837	RETURN PIPE FROM RADIATOR TO ENGINE	Enquire	To Order
	250970	RETURN PIPE FROM RADIATOR TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	Enquire	To Order
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	230890	THERMOSTAT WITH PRESSURE GUAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238510	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252689	WATER PIPE FROM RH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203787	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241398	WATER DELIVERY PIPE	Enquire	To Order
	241398	WATER DELIVERY PIPE	Enquire	To Order
	241398	WATER DELIVERY PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	241579	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235736	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236950	WATER PIPE CONNECTOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236951	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259442	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	225992	Expansion Tank	225992 Expansion Tank	-	1	Enquire
2	980145477	TANK CAP	980145477 TANK CAP	-	1	Enquire
3	252752	HOSE	252752 HOSE	-	1	Enquire
4	237540	Vent Pipe From Expansion Tank to Radiator	237540 Vent Pipe From Expansion Tank to Radiator	-	1	Enquire
5	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	2	Enquire
6	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
7	247800	VENT PIPE FROM EXPANSION TANK TO BUNDY	247800 VENT PIPE FROM EXPANSION TANK TO BUNDY	-	1	Enquire
8	177995	CLAMP	177995 CLAMP	-	1	Enquire
9	254717	SCREW	254717 SCREW	-	1	Enquire
10	82404496	CUP	82404496 CUP	-	1	Enquire
12	16043436	SCREW	16043436 SCREW	-	2	Enquire
13	127496	WASHER	127496 WASHER	-	2	Enquire
14	12647121	WASHER	12647121 WASHER	-	2	Enquire
15	275654	DELIVERY PIPE FROM ENGINE TO RADIATOR	275654 DELIVERY PIPE FROM ENGINE TO RADIATOR not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
15	244779	DELIVERY PIPE FROM ENGINE TO RADIATOR	244779 DELIVERY PIPE FROM ENGINE TO RADIATOR Applicable up to Ass. No. 103178	-	1	Enquire
16	272837	RETURN PIPE FROM RADIATOR TO ENGINE	272837 RETURN PIPE FROM RADIATOR TO ENGINE not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
16	250970	RETURN PIPE FROM RADIATOR TO ENGINE	250970 RETURN PIPE FROM RADIATOR TO ENGINE Applicable up to Ass. No. 103178	-	1	Enquire
17	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
17	13000490	Screw Collar	13000490 Screw Collar No longer supplied; Replaced by 296779	-	1	Enquire
18	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
18	13000790	SCREW COLLAR	13000790 SCREW COLLAR No longer supplied; Replaced by 296781	-	2	Enquire
19	296778	SCREW COLLAR	296778 SCREW COLLAR	-	3	Enquire
19	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP No longer supplied; Replaced by 296778	-	3	Enquire
20	230890	THERMOSTAT WITH PRESSURE GUAGE	230890 THERMOSTAT WITH PRESSURE GUAGE	-	1	Enquire
21	137873	O-Ring	137873 O-Ring	-	1	Enquire
22	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	3	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
24	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	2	Enquire
25	238510	CAP	238510 CAP	-	1	Enquire
26	252689	WATER PIPE FROM RH HEAD	252689 WATER PIPE FROM RH HEAD Applicable for GD	-	1	Enquire
27	203787	PIPE UNION	203787 PIPE UNION	-	1	Enquire
28	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	-	2	Enquire
30	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	-	1	Enquire
31	241398	WATER DELIVERY PIPE	241398 WATER DELIVERY PIPE Applicable for Mechanical gearbox	-	1	Enquire
31	241398	WATER DELIVERY PIPE	241398 WATER DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552	-	1	Enquire
31	241398	WATER DELIVERY PIPE	241398 WATER DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608	-	1	Enquire
31	241398	WATER DELIVERY PIPE	241398 WATER DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388	-	1	Enquire
32	241579	THREADED UNION	241579 THREADED UNION	-	1	Enquire
33	235736	THREADED UNION	235736 THREADED UNION	-	1	Enquire
34	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
34	13000490	Screw Collar	13000490 Screw Collar No longer supplied; Replaced by 296779	-	1	Enquire
35	236950	WATER PIPE CONNECTOR MOUNTING	236950 WATER PIPE CONNECTOR MOUNTING Obsolete solution	-	1	Enquire
36	236951	PLATE	236951 PLATE Obsolete solution	-	1	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Obsolete solution	-	2	Enquire
38	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
39	259442	CLIP	259442 CLIP	-	1	Enquire
