Name: COOLING: RADIATORS AND AIR DUCTS
Rating: 5.0 (1 reviews)

COOLING: RADIATORS AND AIR DUCTS of Ferrari Ferrari California (2012-2014)

View All

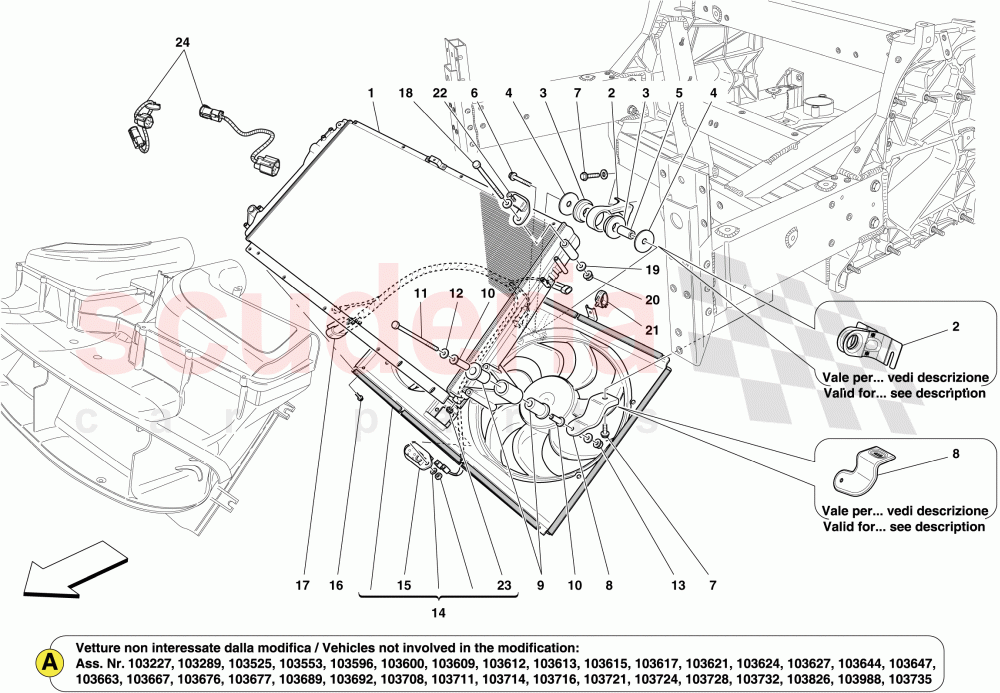

Ferrari California (2012-2014) - COOLING: RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	278488	WATER RADIATOR	$1,010.88	To Order

Photo	Part No	Description	Price (each)	Stock
	278492	CENTRE MOUNTING BRACKET FOR RADIATOR	$176.49	To Order
	213559	BRACKET	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	307674	RADIATOR MOUNTING BUSH	$8.49	To Order

Photo	Part No	Description	Price (each)	Stock
	227430	WASHER	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	227431	Bushing	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	16044534	SCREW	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	278490	RH LOWER BRACKET	$157.23	To Order
	244585	R.H. LOWER BRACKET	$41.70	To Order
	278489	LH LOWER BRACKET	$157.23	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	197584	RUBBER BUSHING	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	197585	BUSHING	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock
	16044824	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	265993	COMPL. ELECTRIC FAN ASSEMBLY	$1,848.48	To Order

Photo	Part No	Description	Price (each)	Stock
	263140	RESISTOR	$113.91	To Order

Photo	Part No	Description	Price (each)	Stock
	16285227	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	16044621	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	224878	Clip	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	253488	BRACKET FOR OIL DELIVERY TUBE	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	14621787	CAP	$24.47	To Order

Photo	Part No	Description	Price (each)	Stock
	281683	LH WIRING HARNESS WITH DIODES	$160.46	To Order
	281897	RH WIRING HARNESS WITH DIODES	$160.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	278488	WATER RADIATOR	278488 WATER RADIATOR not affected by modification; Applicable from Ass. No. 103179	$1,010.88	1
2	278492	CENTRE MOUNTING BRACKET FOR RADIATOR	278492 CENTRE MOUNTING BRACKET FOR RADIATOR not affected by modification; Applicable from Ass. No. 103179	$176.49	1
2	213559	BRACKET	213559 BRACKET Applicable up to Ass. No. 103178	$56.14	1
3	307674	RADIATOR MOUNTING BUSH	307674 RADIATOR MOUNTING BUSH	$8.49	2
4	227430	WASHER	227430 WASHER	$2.25	2
5	227431	Bushing	227431 Bushing	$4.39	1
6	16044534	SCREW	16044534 SCREW	$1.46	1
7	13839224	SCREW	13839224 SCREW	$2.79	4
8	278490	RH LOWER BRACKET	278490 RH LOWER BRACKET not affected by modification; Applicable from Ass. No. 103179	$157.23	1
8	244585	R.H. LOWER BRACKET	244585 R.H. LOWER BRACKET Applicable up to Ass. No. 103178	$41.70 MSRP: ~~65.87~~ (36.7% off)	1
8	278489	LH LOWER BRACKET	278489 LH LOWER BRACKET not affected by modification; Applicable from Ass. No. 103179	$157.23	1
8	244584	L.H. LOWER BRACKET	244584 L.H. LOWER BRACKET Applicable up to Ass. No. 103178	$41.70	1
9	197584	RUBBER BUSHING	197584 RUBBER BUSHING	$2.74	4
10	197585	BUSHING	197585 BUSHING	$5.87	4
11	16044824	SCREW	16044824 SCREW	$0.41	2
12	84653800	WASHER	84653800 WASHER	$5.75	2
13	14054511	NUT	14054511 NUT	$1.30	2
14	265993	COMPL. ELECTRIC FAN ASSEMBLY	265993 COMPL. ELECTRIC FAN ASSEMBLY Applicable for HELE; Applicable for Stop & Start	$1,848.48 MSRP: ~~2,376.55~~ (22.2% off)	1
15	263140	RESISTOR	263140 RESISTOR Not for HELE; Not for Stop & Start	$113.91	1
16	16285227	SCREW	16285227 SCREW	$0.32	8
18	16044621	SCREW	16044621 SCREW	$0.47	1
19	12647021	WASHER	12647021 WASHER	$0.32	2
20	14054511	NUT	14054511 NUT	$1.30	1
21	224878	Clip	224878 Clip	$1.05	1
22	253488	BRACKET FOR OIL DELIVERY TUBE	253488 BRACKET FOR OIL DELIVERY TUBE	$67.38	1
23	14621787	CAP	14621787 CAP Not for HELE; Not for Stop & Start	$24.47	2
24	281683	LH WIRING HARNESS WITH DIODES	281683 LH WIRING HARNESS WITH DIODES Applicable for HELE	$160.46	1
24	281897	RH WIRING HARNESS WITH DIODES	281897 RH WIRING HARNESS WITH DIODES Applicable for HELE	$160.46	1
