Complete Pedal Board Assembly -Not For Dct Gearbox-

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - COMPLETE PEDAL BOARD ASSEMBLY -Not for DCT gearbox-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
240760 PEDAL SUPPORT Enquire To Order
263503 PEDAL SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
241363 BRAKE PEDAL Enquire To Order
190376 BRAKE PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
240769 PIN Enquire To Order
189870 PIN Enquire To Order
Photo Part No Description Price (each) Stock
11064071 CLIP Enquire To Order
11064474 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
16287524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
958694 PUSH-BUTTON SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
189863 BRAKE PEDAL RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
189864 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
13808031 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
14186271 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
188722 DRILLED PLATE Enquire To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
243117 FLOOR HINGED ACCELERATOR PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
243120 ACCELERATOR PEDAL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
189869 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
147640 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
240764 BRAKE PEDAL ADJUSTER LUG Enquire To Order
Photo Part No Description Price (each) Stock
240929 RUBBER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
240772 RUBBER PIVOT WASHER Enquire To Order
Photo Part No Description Price (each) Stock
82467100 ACCELERATOR PEDAL BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
240773 SWITCH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
240931 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12700076 SEEGER RING FOR SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
241382 SERVO SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
241356 CLUTCH PEDAL Enquire To Order
228284 CLUTCH PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
189865 CLUTCH PEDAL RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
189871 PIN Enquire To Order
Photo Part No Description Price (each) Stock
188723 DRILLED PLATE Enquire To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
189873 LOWER SERVO SPRING Enquire To Order
Photo Part No Description Price (each) Stock
189874 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
240778 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
240776 UPPER PIN Enquire To Order
Photo Part No Description Price (each) Stock
240777 LOWER PIN Enquire To Order
Photo Part No Description Price (each) Stock
199701 CLUTCH PEDAL END STOP Enquire To Order
Photo Part No Description Price (each) Stock
201958 PUSHBUTTON SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
189866 STOP CAP Enquire To Order
View All

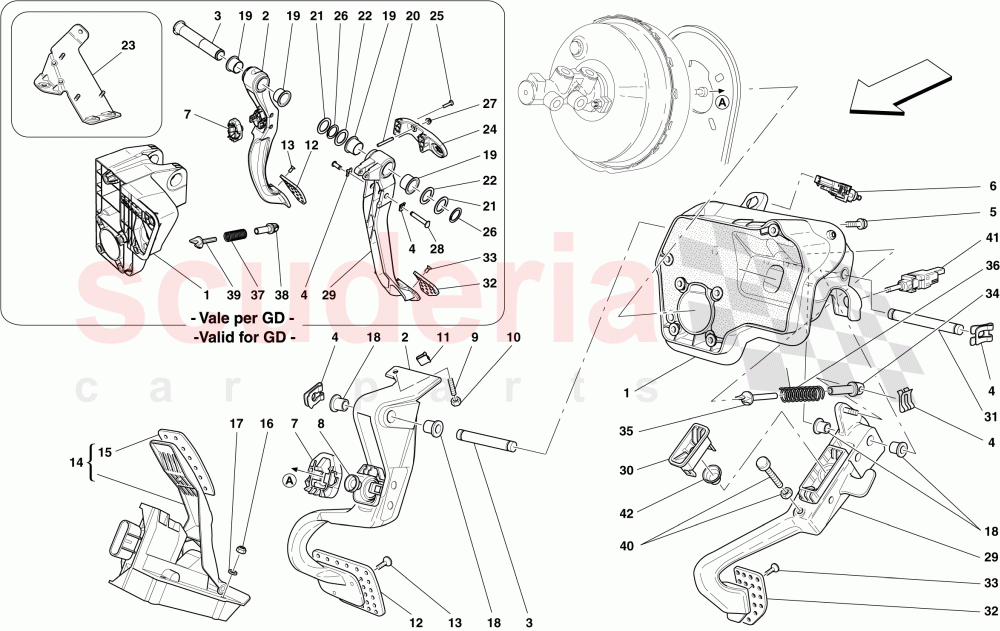

COMPLETE PEDAL BOARD ASSEMBLY -Not for DCT gearbox- of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 240760
PEDAL SUPPORT
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
1 263503
PEDAL SUPPORT
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
2 241363
BRAKE PEDAL
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
2 190376
BRAKE PEDAL
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
3 240769
PIN
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
3 189870
PIN
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
4 11064071
CLIP
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
4 11064474
CLIP
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 4 Enquire
5 16287524
SCREW
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 2 Enquire
6 958694
PUSH-BUTTON SWITCH
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
7 189863
BRAKE PEDAL RETAINER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
8 189864
STOP CAP
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
9 13808031
DOWEL
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
10 14040711
NUT M8 FLANGED
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
11 14186271
CLIP
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
12 188722
DRILLED PLATE
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
13 62797600
Allen Bolt Countersunk M6 x 20
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 2 Enquire
14 243117
FLOOR HINGED ACCELERATOR PEDAL
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
15 243120
ACCELERATOR PEDAL PLATE
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
16 14059290
FLANGED NUT M6
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 3 Enquire
17 12643724
WASHER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 3 Enquire
18 189869
BUSHING
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 4 Enquire
19 147640
GASKET
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 4 Enquire
20 240764
BRAKE PEDAL ADJUSTER LUG
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
21 240929
RUBBER WASHER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
22 240772
RUBBER PIVOT WASHER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
23 82467100
ACCELERATOR PEDAL BRACKET
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
24 240773
SWITCH MOUNTING BRACKET
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
25 240931
SCREW
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
26 12700076
SEEGER RING FOR SHAFT
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
27 14059290
FLANGED NUT M6
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
28 241382
SERVO SPRING PIN
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
29 241356
CLUTCH PEDAL
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 1 Enquire
29 228284
CLUTCH PEDAL
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
30 189865
CLUTCH PEDAL RETAINER
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
31 189871
PIN
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
32 188723
DRILLED PLATE
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
33 62797600
Allen Bolt Countersunk M6 x 20
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
34 189872
UPPER SERVO SPRING
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
35 189873
LOWER SERVO SPRING
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
36 189874
SPRING
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
37 240778
SPRING
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
38 240776
UPPER PIN
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
39 240777
LOWER PIN
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Applicable for GD 		- 2 Enquire
40 199701
CLUTCH PEDAL END STOP
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
41 201958
PUSHBUTTON SWITCH
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
42 189866
STOP CAP
Not for DCT-F1 gearbox (Applicable for mechanical gearbox); Not for GD 		- 1 Enquire
