ELECTRONIC MANAGEMENT (SUSPENSION) of Ferrari Ferrari California (2012-2014)

View All

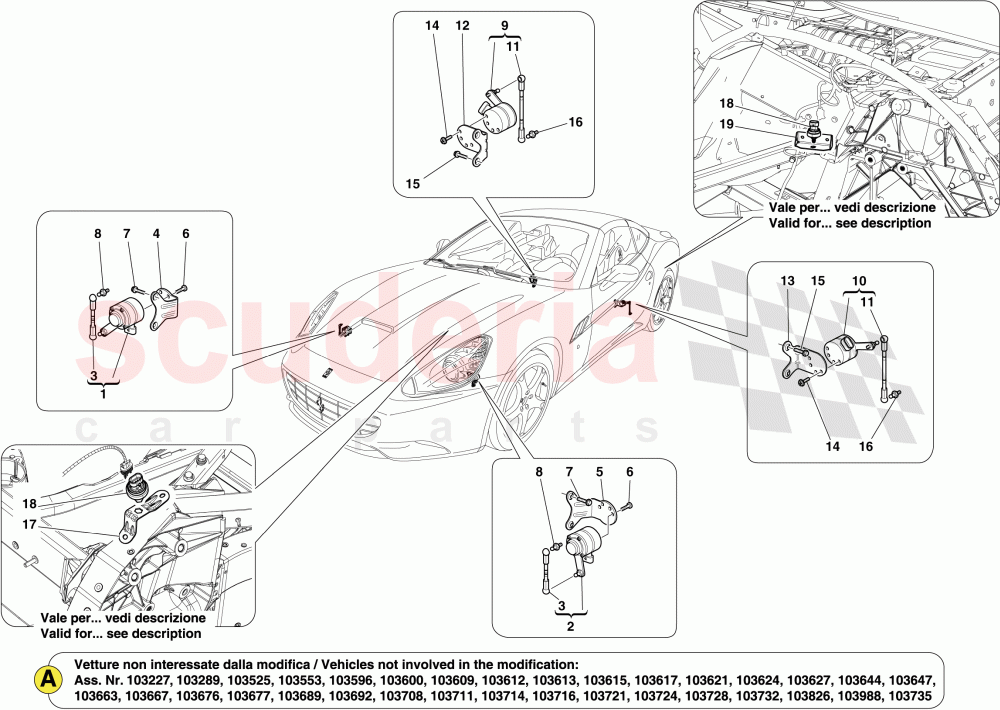

Ferrari California (2012-2014) - ELECTRONIC MANAGEMENT (SUSPENSION)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	253164	COMPL. RH FRONT MOTION SENSOR	Enquire	To Order
	238244	COMPL. RH FRONT TRAVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253162	COMPL. LH FRONT MOTION SENSOR	Enquire	To Order
	238243	COMPL. LH FRONT TRAVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253165	POTENTIOMETER LINK	Enquire	To Order
	238266	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263090	RH FRONT BRACKET	Enquire	To Order
	238246	R.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263089	LH FRONT BRACKET	Enquire	To Order
	238245	L.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217456	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229653	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268368	RH REAR BRACKET	Enquire	To Order
	230958	R.H. REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268367	LH REAR BRACKET	Enquire	To Order
	230957	L.H. REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217456	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281288	COMPL. FRONT ACCELEROMETER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263079	ACCELEROMETER FOR MAGNERIDE SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281290	COMPL. REAR ACCELEROMETER FASTENER BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	253164	COMPL. RH FRONT MOTION SENSOR	253164 COMPL. RH FRONT MOTION SENSOR Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
1	238244	COMPL. RH FRONT TRAVEL SENSOR	238244 COMPL. RH FRONT TRAVEL SENSOR Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
2	253162	COMPL. LH FRONT MOTION SENSOR	253162 COMPL. LH FRONT MOTION SENSOR Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
2	238243	COMPL. LH FRONT TRAVEL SENSOR	238243 COMPL. LH FRONT TRAVEL SENSOR Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
3	253165	POTENTIOMETER LINK	253165 POTENTIOMETER LINK Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
3	238266	POTENTIOMETER LINK	238266 POTENTIOMETER LINK Dual Mode Magneride; Applicable up to Ass. No. 103178	-	2	Enquire
4	263090	RH FRONT BRACKET	263090 RH FRONT BRACKET Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
4	238246	R.H. FRONT BRACKET	238246 R.H. FRONT BRACKET Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
5	263089	LH FRONT BRACKET	263089 LH FRONT BRACKET Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
5	238245	L.H. FRONT BRACKET	238245 L.H. FRONT BRACKET Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
6	217456	SCREW	217456 SCREW M5 X 16; Dual Mode Magneride	-	6	Enquire
7	86574700	SCREW	86574700 SCREW M6 X 16; Dual Mode Magneride	-	4	Enquire
8	343376	BALL JOINT	343376 BALL JOINT Dual Mode Magneride	-	2	Enquire
11	229653	POTENTIOMETER LINK	229653 POTENTIOMETER LINK Dual Mode Magneride	-	1	Enquire
12	268368	RH REAR BRACKET	268368 RH REAR BRACKET Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
12	230958	R.H. REAR BRACKET	230958 R.H. REAR BRACKET Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
13	268367	LH REAR BRACKET	268367 LH REAR BRACKET Dual Mode Magneride; not affected by modification; Applicable from Ass. No. 103179	-	1	Enquire
13	230957	L.H. REAR BRACKET	230957 L.H. REAR BRACKET Dual Mode Magneride; Applicable up to Ass. No. 103178	-	1	Enquire
14	217456	SCREW	217456 SCREW M5 X 16; Dual Mode Magneride	-	6	Enquire
15	86574700	SCREW	86574700 SCREW M6 X 16; Dual Mode Magneride	-	4	Enquire
16	343376	BALL JOINT	343376 BALL JOINT Dual Mode Magneride	-	2	Enquire
17	281288	COMPL. FRONT ACCELEROMETER FASTENER BRACKET	281288 COMPL. FRONT ACCELEROMETER FASTENER BRACKET not affected by modification; Applicable from Ass. No. 103179	-	2	Enquire
18	263079	ACCELEROMETER FOR MAGNERIDE SYSTEM	263079 ACCELEROMETER FOR MAGNERIDE SYSTEM not affected by modification; Applicable from Ass. No. 103179	-	3	Enquire
19	281290	COMPL. REAR ACCELEROMETER FASTENER BRACKET	281290 COMPL. REAR ACCELEROMETER FASTENER BRACKET not affected by modification; Applicable from Ass. No. 103179 up to Ass. No. 104677	-	1	Enquire
