BRAKE SYSTEM -Applicable for GD-

Find Your Part

Ferrari California (2012-2014) - BRAKE SYSTEM -Applicable for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
285939 ABS/ASR HYDRAULIC UNIT $4,853.89 To Order
266977 ABS/ASR HYDRAULIC UNIT $7,803.15 To Order
Photo Part No Description Price (each) Stock
272638 MOUNTING $129.96 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
232869 BUSH $42.98 To Order
Photo Part No Description Price (each) Stock
279804 BRAKE PIPE FROM "R" TO MC2 $65.77 To Order
Photo Part No Description Price (each) Stock
279799 BRAKE PIPE FROM "F" TO MC1 $96.26 To Order
Photo Part No Description Price (each) Stock
272655 BRAKE PIPE FROM "RL" TO LH REAR JUNCTION $38.69 To Order
Photo Part No Description Price (each) Stock
234286 CLIP $1.56 To Order
Photo Part No Description Price (each) Stock
249649 CLIP $0.83 To Order
Photo Part No Description Price (each) Stock
279802 BRAKE PIPE FROM DISCONNECTOR UNION TO MC1 "F" $56.14 To Order
Photo Part No Description Price (each) Stock
279807 BRAKE PIPE FROM DISCONNECTOR UNION TO MC2 "R" $101.07 To Order
Photo Part No Description Price (each) Stock
279680 BRAKE PIPE FROM "FR" TO FRONT RH JUNCTION $75.40 To Order
Photo Part No Description Price (each) Stock
280057 BRAKE PIPE FROM "FL" TO FRONT LH JUNCTION $64.17 To Order
Photo Part No Description Price (each) Stock
279679 BRAKE PIPE FROM JUNCTION TO RH FIREWALL PIPE $59.35 To Order
Photo Part No Description Price (each) Stock
279699 BRAKE PIPE FROM FIREWALL TO RH UNDERBODY PIPE $50.15 To Order
Photo Part No Description Price (each) Stock
272658 BRAKE PIPE FROM JUNCTION TO LH FIREWALL PIPE $46.52 To Order
Photo Part No Description Price (each) Stock
280615 RH UNDERBODY BRAKE PIPE $215.00 To Order
Photo Part No Description Price (each) Stock
280614 LH UNDERBODY BRAKE PIPE $215.00 To Order
Photo Part No Description Price (each) Stock
234285 CLIP $0.70 To Order
Photo Part No Description Price (each) Stock
234284 CLIP $0.63 To Order
234284 CLIP $0.63 To Order
Photo Part No Description Price (each) Stock
241118 CLIP $1.46 To Order
241118 CLIP $1.46 To Order
Photo Part No Description Price (each) Stock
279678 BRAKE PIPE FROM "R" TO MC2 $54.46 To Order
Photo Part No Description Price (each) Stock
279677 BRAKE PIPE FROM "F" TO MC1 $91.45 To Order
Photo Part No Description Price (each) Stock
248971 ECU cover $15.87 To Order
Photo Part No Description Price (each) Stock
272836 PLATE $25.79 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
273398 BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
258886 CLIP $3.32 To Order
Photo Part No Description Price (each) Stock
244424 BRACKET $16.03 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
290777 BRACKET FOR A/C PIPE $27.21 To Order
272871 BRACKET FOR A/C PIPE $24.05 To Order
Photo Part No Description Price (each) Stock
14622387 CAP $3.13 To Order
View All

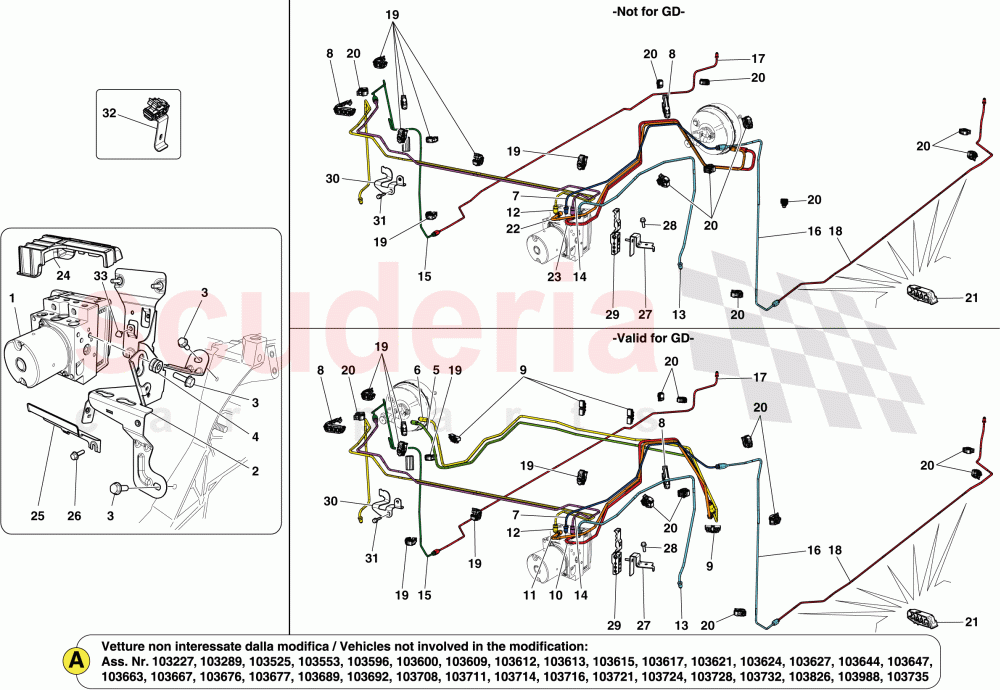

BRAKE SYSTEM -Applicable for GD- of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 285939
ABS/ASR HYDRAULIC UNIT
Special Handling Pack; not affected by modification; Applicable from Ass. No. 103179 		$4,853.89 1
1 266977
ABS/ASR HYDRAULIC UNIT
Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179 		$7,803.15 1
2 272638
MOUNTING
not affected by modification; Applicable from Ass. No. 103179 		$129.96 1
3 13839224
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$2.79 5
4 232869
BUSH
not affected by modification; Applicable from Ass. No. 103179 		$42.98 3
5 279804
BRAKE PIPE FROM "R" TO MC2
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$65.77 1
6 279799
BRAKE PIPE FROM "F" TO MC1
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$96.26 1
7 272655
BRAKE PIPE FROM "RL" TO LH REAR JUNCTION
not affected by modification; Applicable from Ass. No. 103179 		$38.69 1
8 234286
CLIP
not affected by modification; Applicable from Ass. No. 103179 		$1.56 2
9 249649
CLIP
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$0.83 4
10 279802
BRAKE PIPE FROM DISCONNECTOR UNION TO MC1 "F"
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$56.14 1
11 279807
BRAKE PIPE FROM DISCONNECTOR UNION TO MC2 "R"
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$101.07 1
12 279680
BRAKE PIPE FROM "FR" TO FRONT RH JUNCTION
not affected by modification; Applicable from Ass. No. 103179 		$75.40 1
13 280057
BRAKE PIPE FROM "FL" TO FRONT LH JUNCTION
not affected by modification; Applicable from Ass. No. 103179 		$64.17 1
14 279679
BRAKE PIPE FROM JUNCTION TO RH FIREWALL PIPE
not affected by modification; Applicable from Ass. No. 103179 		$59.35 1
15 279699
BRAKE PIPE FROM FIREWALL TO RH UNDERBODY PIPE
not affected by modification; Applicable from Ass. No. 103179 		$50.15 1
16 272658
BRAKE PIPE FROM JUNCTION TO LH FIREWALL PIPE
not affected by modification; Applicable from Ass. No. 103179 		$46.52 1
17 280615
RH UNDERBODY BRAKE PIPE
not affected by modification; Applicable from Ass. No. 103179 		$215.00 1
18 280614
LH UNDERBODY BRAKE PIPE
not affected by modification; Applicable from Ass. No. 103179 		$215.00 1
19 234285
CLIP
not affected by modification; Applicable from Ass. No. 103179 		$0.70 7
20 234284
CLIP
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$0.63 10
20 234284
CLIP
not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$0.63 9
21 241118
CLIP
not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$1.46 13
21 241118
CLIP
not affected by modification; Applicable for GD; Applicable from Ass. No. 103179 		$1.46 14
22 279678
BRAKE PIPE FROM "R" TO MC2
not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$54.46 1
23 279677
BRAKE PIPE FROM "F" TO MC1
not affected by modification; Not for GD; Applicable from Ass. No. 103179 		$91.45 1
24 248971
ECU cover
not affected by modification; Applicable from Ass. No. 103179 		$15.87 1
25 272836
PLATE
not affected by modification; Applicable from Ass. No. 103179 		$25.79 1
26 11568124
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$0.94 1
27 273398
BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$24.05 1
28 81591700
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$2.22 1
29 258886
CLIP
not affected by modification; Applicable from Ass. No. 103179 		$3.32 1
30 244424
BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$16.03 1
31 13839224
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$2.79 1
32 290777
BRACKET FOR A/C PIPE
Complete with clip; not affected by modification; Applicable from Ass. No. 103179; Applicable after depletion of 272871 		$27.21 1
32 272871
BRACKET FOR A/C PIPE
not affected by modification; Applicable from Ass. No. 103179; Applicable until depletion 		$24.05 1
33 14622387
CAP
not affected by modification; Applicable from Ass. No. 103179 		$3.13 1
