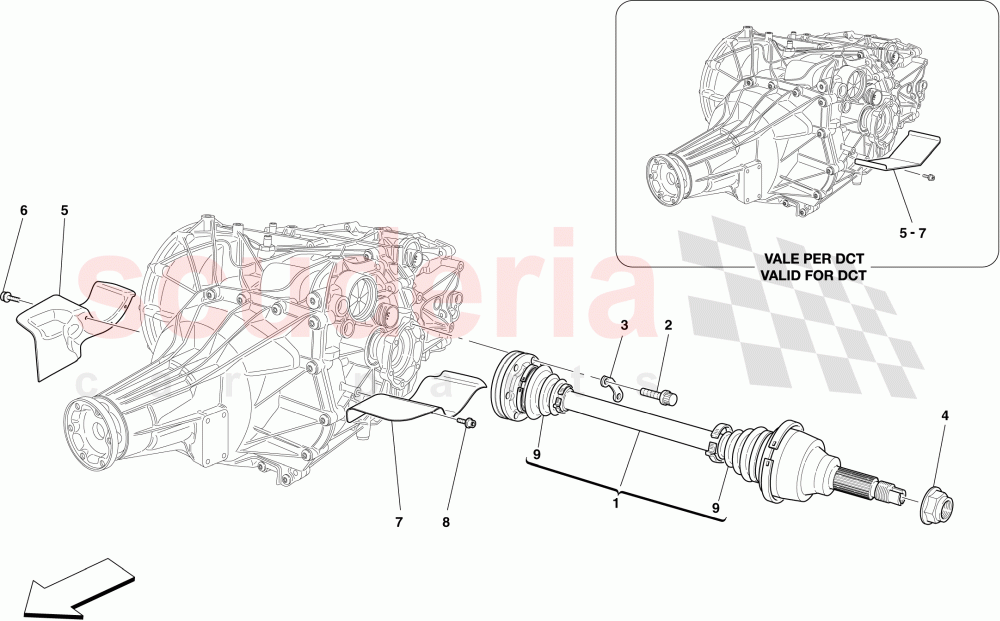

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	237590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220325	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	226664	COMPLETE AXLE SHAFT	226664 COMPLETE AXLE SHAFT Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	2	Enquire
1	226650	COMPLETE AXLE SHAFT	226650 COMPLETE AXLE SHAFT Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
2	237590	SCREW	237590 SCREW	-	12	Enquire
3	220325	PLATE	220325 PLATE	-	6	Enquire
4	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
5	262880	AXLE SHAFT HEAT SHIELD	262880 AXLE SHAFT HEAT SHIELD Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
5	248069	RH AXLE SHAFT HEAT SHIELD	248069 RH AXLE SHAFT HEAT SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
6	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	3	Enquire
7	262880	AXLE SHAFT HEAT SHIELD	262880 AXLE SHAFT HEAT SHIELD Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
7	248707	LH AXLE SHAFT HEAT SHIELD	248707 LH AXLE SHAFT HEAT SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
8	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	4	Enquire
9	70001388	GAITER REPLACEMENT KIT	70001388 GAITER REPLACEMENT KIT Wheel/gearbox side	-	1	Enquire
9	70001387	GAITER REPLACEMENT KIT ARRIVING SOON	70001387 GAITER REPLACEMENT KIT Gearbox side ARRIVING SOON	-	1	Enquire
