Rear Suspension - Shock Absorber and Brake Disc of Ferrari Ferrari 575 Superamerica

View All

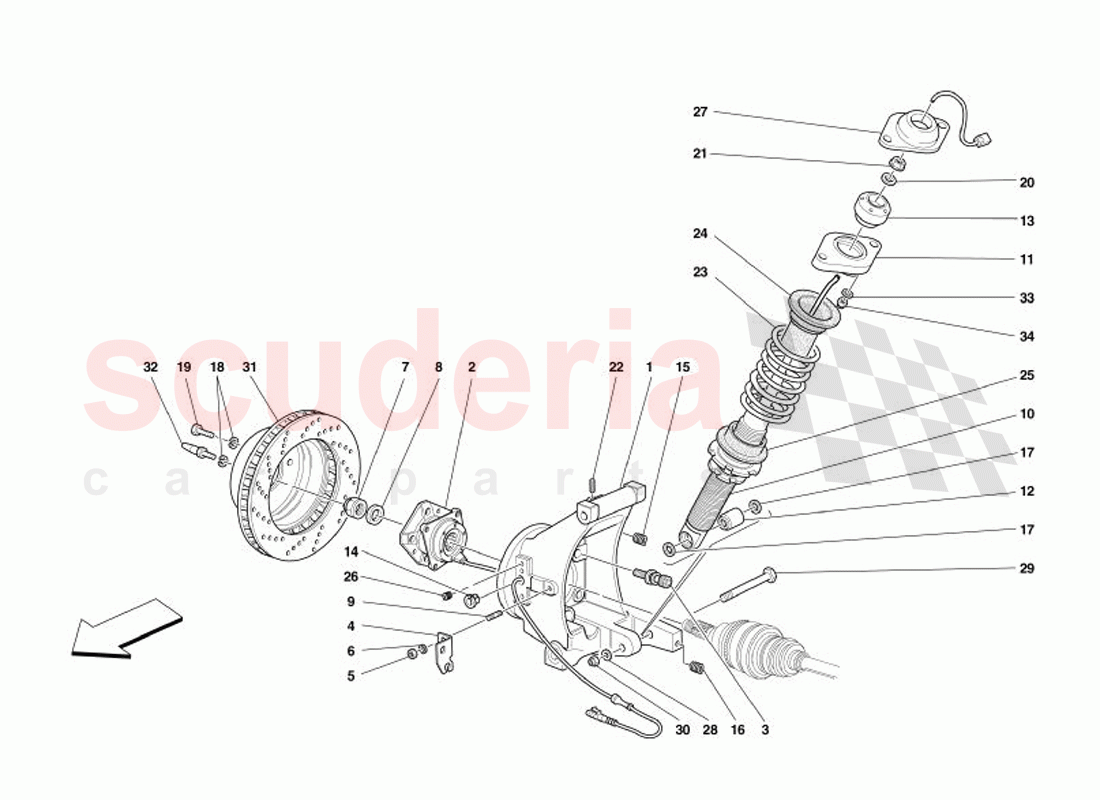

Ferrari 575 Superamerica - Rear Suspension - Shock Absorber and Brake Disc

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	183325	LH. REAR HUB HOLDER	Enquire	To Order
	183057	R.H. REAR HUB HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197271	BEARING FOR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180591	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183754	L.H. SUPPORT	Enquire	To Order
	183753	R.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188161	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196577	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205290	REAR SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204458	PAD FASTENING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	204606	Bush for Front Upper Shock Absorber	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	105369	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133771	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153496	SPACER WASHER mm.2.90 -As	Enquire	To Order
	153495	SPACER WASHER mm. 3.00	Enquire	To Order
	153497	SPACER WASHER mm.3.10 -As	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10520124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163652	SPRING	Enquire	To Order
	169986	SPRING	Enquire	To Order
	175887	SPRING -Cagnola-	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	156978	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113581	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204507	PAD FASTENING CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159309	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191982	REAR BRAKE DISC	Enquire	To Order
	211606	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	183324	COMPLETE LH REAR HUB HOLDER	183324 COMPLETE LH REAR HUB HOLDER	-	1	Enquire
-	183315	COMPLETE RH REAR HUB HOLDER	183315 COMPLETE RH REAR HUB HOLDER	-	1	Enquire
1	183325	LH. REAR HUB HOLDER	183325 LH. REAR HUB HOLDER Not as spare part With complete LH steeringknuckle 183324	-	1	Enquire
1	183057	R.H. REAR HUB HOLDER	183057 R.H. REAR HUB HOLDER Not as spare part With complete RH steeringknuckle 183315	-	1	Enquire
2	197271	BEARING FOR WHEEL	197271 BEARING FOR WHEEL	-	2	Enquire
3	180591	SCREW	180591 SCREW	-	8	Enquire
4	183754	L.H. SUPPORT	183754 L.H. SUPPORT	-	1	Enquire
4	183753	R.H. SUPPORT	183753 R.H. SUPPORT	-	1	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
6	10519424	WASHER	10519424 WASHER	-	2	Enquire
7	188161	NUT	188161 NUT	-	2	Enquire
8	196577	WASHER	196577 WASHER	-	2	Enquire
9	11500124	STUD BOLT	11500124 STUD BOLT	-	2	Enquire
10	205290	REAR SHOCK ABSORBER	205290 REAR SHOCK ABSORBER	-	2	Enquire
11	204458	PAD FASTENING SPRING	204458 PAD FASTENING SPRING	-	2	Enquire
12	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT Flanblock ARRIVING SOON	-	2	Enquire
13	204606	Bush for Front Upper Shock Absorber ARRIVING SOON	204606 Bush for Front Upper Shock Absorber ARRIVING SOON	-	2	Enquire
14	105369	CABLE GROMMET	105369 CABLE GROMMET	-	2	Enquire
15	133771	THREADED INSERT	133771 THREADED INSERT	-	4	Enquire
16	13526170	THREADED INSERT	13526170 THREADED INSERT	-	2	Enquire
17	153496	SPACER WASHER mm.2.90 -As	153496 SPACER WASHER mm.2.90 -As As an alternative of 153495	-	4	Enquire
17	153495	SPACER WASHER mm. 3.00	153495 SPACER WASHER mm. 3.00	-	4	Enquire
17	153497	SPACER WASHER mm.3.10 -As	153497 SPACER WASHER mm.3.10 -As As an alternative of 153495	-	4	Enquire
18	127496	WASHER	127496 WASHER	-	4	Enquire
19	14306924	SCREW	14306924 SCREW	-	2	Enquire
20	10520124	WASHER	10520124 WASHER	-	2	Enquire
21	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
22	11500124	STUD BOLT	11500124 STUD BOLT	-	2	Enquire
23	163652	SPRING	163652 SPRING Sold in pair Not for cars with handling Fiorano equipment	-	2	Enquire
23	169986	SPRING	169986 SPRING Sold in pair As an alternative Not for cars with handling Fiorano equipment	-	2	Enquire
23	175887	SPRING -Cagnola-	175887 SPRING -Cagnola- Sold in pair Valid for cars with handling Fiorano equipment Optional-	-	2	Enquire
23	208679	SPRING - Cosmos	208679 SPRING - Cosmos Sold in pair As an alternativa Valid for cars with handling Fiorano equipment Optional	-	2	Enquire
24	156978	UPPER SPACER	156978 UPPER SPACER	-	2	Enquire
25	113581	LOWER SPACER	113581 LOWER SPACER	-	2	Enquire
26	13525470	THREADED INSERT	13525470 THREADED INSERT	-	6	Enquire
27	204507	PAD FASTENING CUP	204507 PAD FASTENING CUP	-	2	Enquire
28	84653800	WASHER	84653800 WASHER	-	2	Enquire
29	159309	SCREW	159309 SCREW	-	2	Enquire
30	148020	NUT	148020 NUT	-	2	Enquire
31	191982	REAR BRAKE DISC	191982 REAR BRAKE DISC	-	2	Enquire
31	211606	REAR BRAKE DISC	211606 REAR BRAKE DISC CCM Version	-	2	Enquire
32	104370	SCREW	104370 SCREW	-	2	Enquire
33	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	4	Enquire
34	12574521	Nyloc Nut	12574521 Nyloc Nut	-	4	Enquire
