Cooling System - Radiator and Nourice of Ferrari Ferrari 575 Superamerica

View All

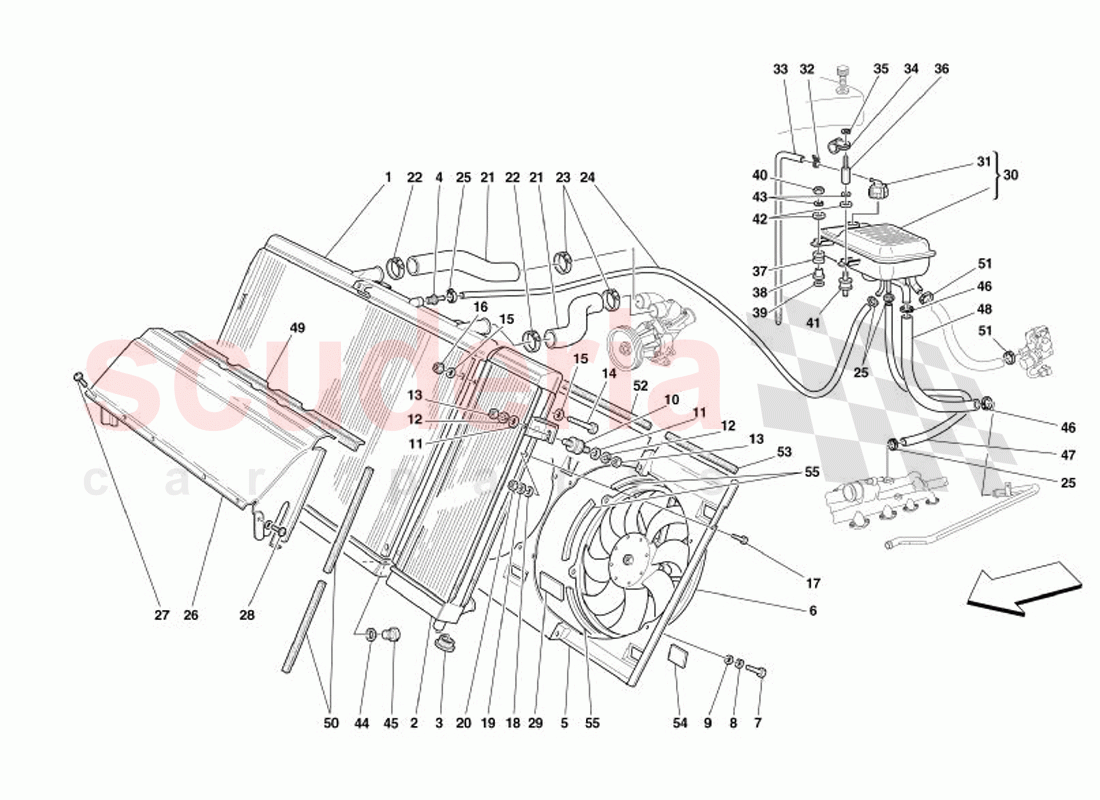

Ferrari 575 Superamerica - Cooling System - Radiator and Nourice

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	171772	COMPLETE WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168213	COMPLETE OIL RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

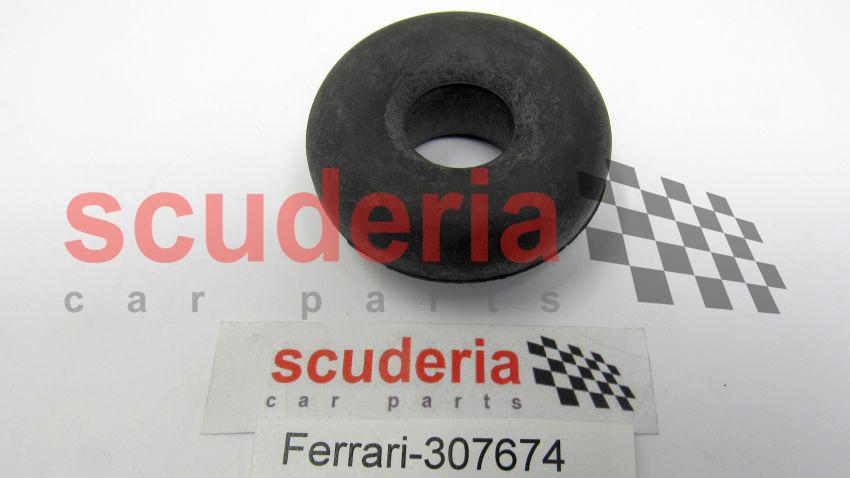

	307674	RADIATOR MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157160	UNION (METRIC THREAD)	Enquire	To Order
	174220	UNION (THREAD INCHES)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181601	COWL FOR ELECTRIC FANS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

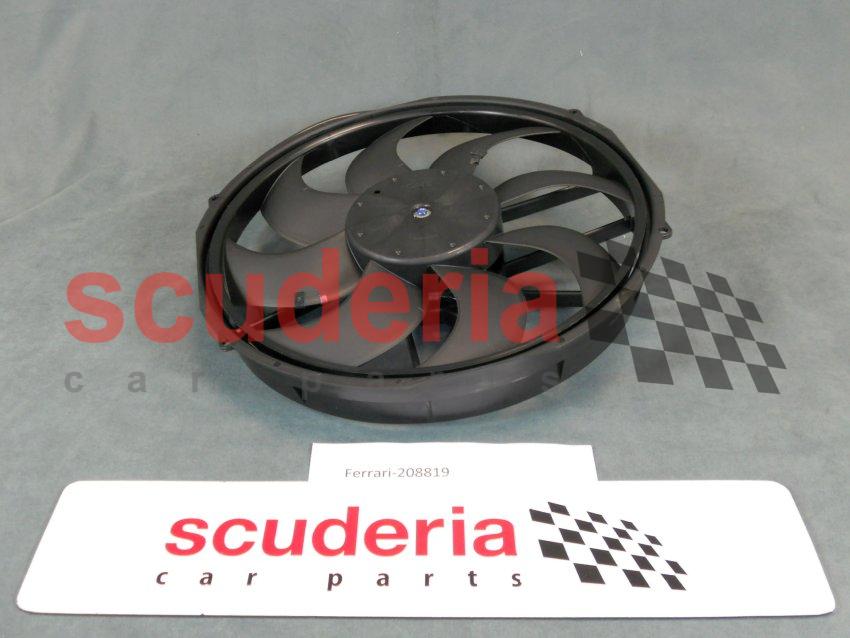

	208819	Complete Electric Fan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157650	FASTENER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15201024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

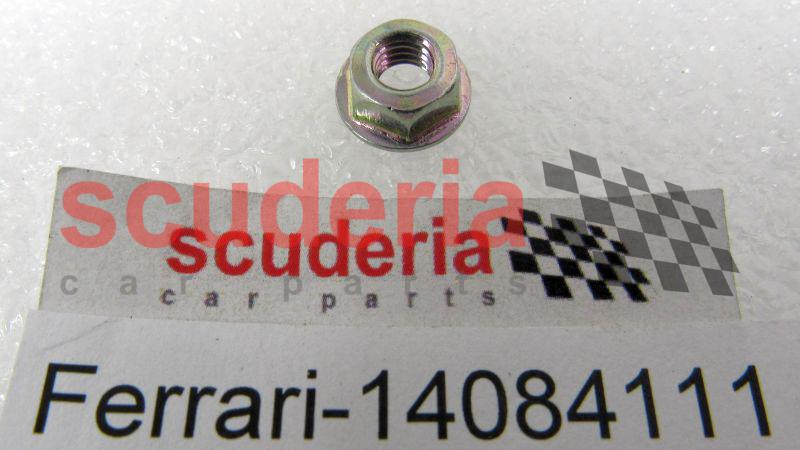

	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179037	DELIVERY WATER RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171668	VENT PIPE FROM RADIATOR TO EXPANSION TANK	Enquire	To Order
	215221	VENT PIPE FROM RADIATOR TO EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65206300	AIR CONVEYOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

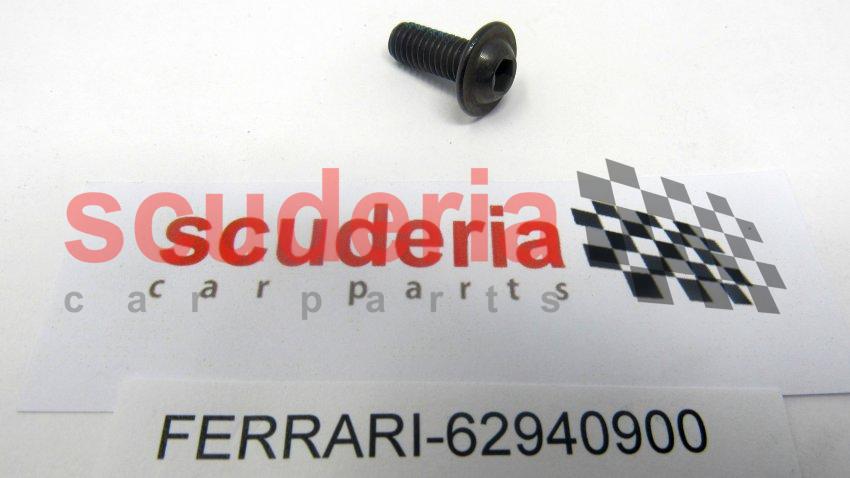

	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

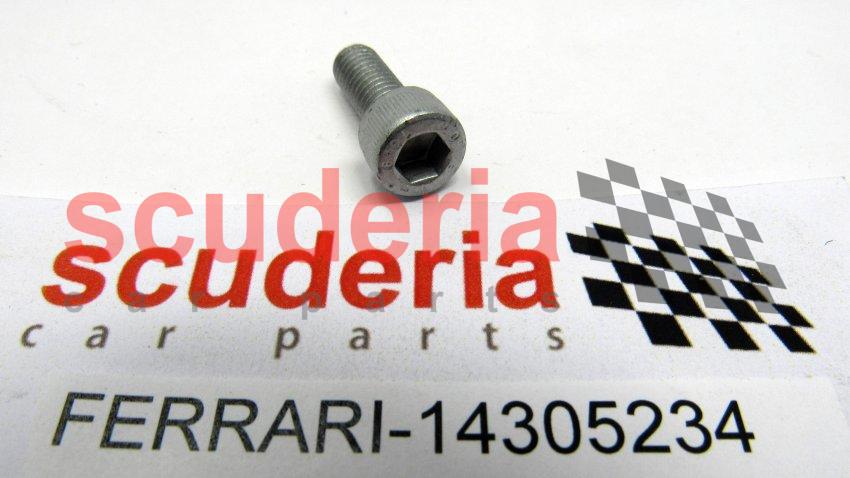

	14305234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155441	STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171974	COMPLETE WATER CANISTER	Enquire	To Order
	192608	COMPLETE FUEL CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13423171	ELASTIC COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156082	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189069	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174539	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174538	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207763	RUBBER PIPE	Enquire	To Order
	157744	RUBBER HOSE FROM TANK TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194911	RUBBER PIPE FROM EXPANSION TANK TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63762800	UPPER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62765800	ANTI-VIBRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194255	ANTI-VIBRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194256	ANTI-VIBRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183649	STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195910	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	171772	COMPLETE WATER RADIATOR	171772 COMPLETE WATER RADIATOR	-	1	Enquire
2	168213	COMPLETE OIL RADIATOR	168213 COMPLETE OIL RADIATOR	-	1	Enquire
3	307674	RADIATOR MOUNTING BUSH	307674 RADIATOR MOUNTING BUSH	-	2	Enquire
4	157160	UNION (METRIC THREAD)	157160 UNION (METRIC THREAD)	-	1	Enquire
4	174220	UNION (THREAD INCHES)	174220 UNION (THREAD INCHES)	-	1	Enquire
5	181601	COWL FOR ELECTRIC FANS	181601 COWL FOR ELECTRIC FANS	-	1	Enquire
6	208819	Complete Electric Fan	208819 Complete Electric Fan	-	2	Enquire
7	14304324	SCREW	14304324 SCREW	-	8	Enquire
8	127493	WASHER	127493 WASHER	-	8	Enquire
9	12637824	WASHER	12637824 WASHER	-	8	Enquire
10	157650	FASTENER BUSHING	157650 FASTENER BUSHING	-	2	Enquire
11	84653800	WASHER	84653800 WASHER	-	4	Enquire
12	127496	WASHER	127496 WASHER	-	4	Enquire
13	133989	NUT	133989 NUT	-	4	Enquire
14	15201024	SCREW	15201024 SCREW	-	1	Enquire
15	12637824	WASHER	12637824 WASHER	-	2	Enquire
16	14084111	NUT	14084111 NUT	-	1	Enquire
17	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	4	Enquire
18	12648224	WASHER	12648224 WASHER	-	4	Enquire
19	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	4	Enquire
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
21	179037	DELIVERY WATER RUBBER PIPE	179037 DELIVERY WATER RUBBER PIPE	-	2	Enquire
22	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
23	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	2	Enquire
24	171668	VENT PIPE FROM RADIATOR TO EXPANSION TANK	171668 VENT PIPE FROM RADIATOR TO EXPANSION TANK Not for GD	-	1	Enquire
24	215221	VENT PIPE FROM RADIATOR TO EXPANSION TANK	215221 VENT PIPE FROM RADIATOR TO EXPANSION TANK Valid for GD	-	1	Enquire
25	177995	CLAMP	177995 CLAMP	-	4	Enquire
26	65206300	AIR CONVEYOR	65206300 AIR CONVEYOR	-	1	Enquire
27	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	9	Enquire
28	14305234	SCREW	14305234 SCREW	-	1	Enquire
29	155441	STRIP	155441 STRIP	-	1	Enquire
30	171974	COMPLETE WATER CANISTER	171974 COMPLETE WATER CANISTER Not for GD	-	1	Enquire
30	192608	COMPLETE FUEL CANISTER	192608 COMPLETE FUEL CANISTER Valid for GD	-	1	Enquire
31	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
32	13423171	ELASTIC COLLAR	13423171 ELASTIC COLLAR	-	1	Enquire
33	156082	RUBBER PIPE	156082 RUBBER PIPE	-	1	Enquire
34	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
35	12637824	WASHER	12637824 WASHER	-	1	Enquire
36	189069	STUD	189069 STUD	-	1	Enquire
37	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
38	149707	SPACER	149707 SPACER	-	2	Enquire
39	12643724	WASHER	12643724 WASHER	-	2	Enquire
40	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
41	102947	VIBRATION DAMPER	102947 VIBRATION DAMPER	-	1	Enquire
42	12643724	WASHER	12643724 WASHER	-	2	Enquire
43	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	2	Enquire
44	174539	O.R. GASKET	174539 O.R. GASKET	-	1	Enquire
45	174538	CAP	174538 CAP	-	1	Enquire
46	13000490	Screw Collar	13000490 Screw Collar	-	2	Enquire
47	207763	RUBBER PIPE	207763 RUBBER PIPE Not for GD	-	1	Enquire
47	157744	RUBBER HOSE FROM TANK TO PUMP	157744 RUBBER HOSE FROM TANK TO PUMP Valid for GD	-	1	Enquire
48	194911	RUBBER PIPE FROM EXPANSION TANK TO ENGINE	194911 RUBBER PIPE FROM EXPANSION TANK TO ENGINE	-	1	Enquire
49	63762800	UPPER GASKET	63762800 UPPER GASKET	-	1	Enquire
50	62765800	ANTI-VIBRATIONS	62765800 ANTI-VIBRATIONS	-	2	Enquire
51	13000490	Screw Collar	13000490 Screw Collar	-	2	Enquire
52	194255	ANTI-VIBRATIONS	194255 ANTI-VIBRATIONS	-	2	Enquire
53	194256	ANTI-VIBRATIONS	194256 ANTI-VIBRATIONS	-	2	Enquire
54	183649	STRIP	183649 STRIP	-	5	Enquire
55	195910	GASKET	195910 GASKET	-	12	Enquire
