Air Intake Manifolds of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Air Intake Manifolds

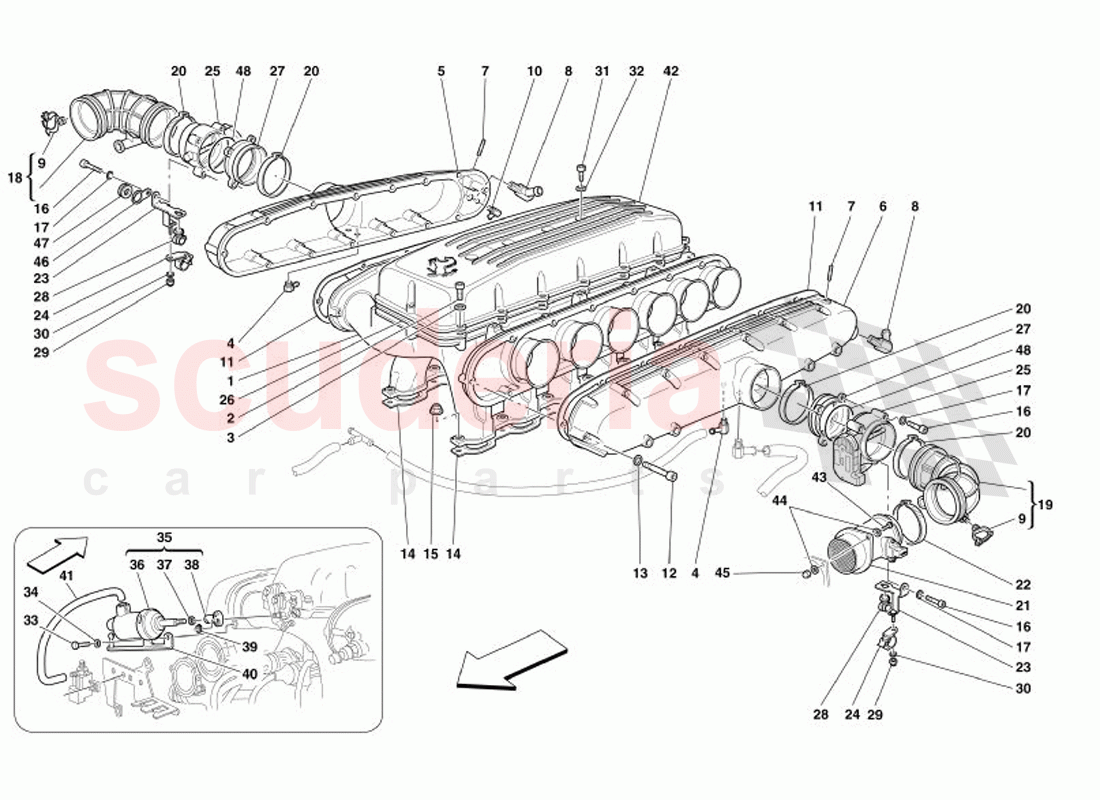

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	203826	SUCTION MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213200	RH SUCTION MANIFOLDS COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213201	LH SUCTION MANIFOLDS COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193146	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189710	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181064	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156828	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324050	Gasket for Suction Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181167	R.H. SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181169	L.H. SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	181120	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196715	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188614	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160888	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180979	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173599	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168275	PNEUMATIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168275	PNEUMATIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173601	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180692	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173598	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173595	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213195	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054048	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165792	BRACKET FOR SECONDARY AIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308092	NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150302	Oil Pump O-Ring	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	203826	SUCTION MANIFOLD	203826 SUCTION MANIFOLD	-	1	Enquire
2	231620	SCREW	231620 SCREW	-	16	Enquire
3	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
4	128016	CONNECTOR	128016 CONNECTOR	-	2	Enquire
5	213200	RH SUCTION MANIFOLDS COVER	213200 RH SUCTION MANIFOLDS COVER	-	1	Enquire
6	213201	LH SUCTION MANIFOLDS COVER	213201 LH SUCTION MANIFOLDS COVER	-	1	Enquire
7	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	-	2	Enquire
8	193146	UNION	193146 UNION	-	2	Enquire
9	189710	CLIP	189710 CLIP	-	4	Enquire
10	128016	CONNECTOR	128016 CONNECTOR	-	1	Enquire
11	181064	GASKET	181064 GASKET	-	2	Enquire
12	156828	SCREW	156828 SCREW	-	28	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	28	Enquire
14	324050	Gasket for Suction Manifold	324050 Gasket for Suction Manifold	-	2	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	24	Enquire
16	231624	SCREW	231624 SCREW	-	8	Enquire
17	12639724	WASHER	12639724 WASHER	-	8	Enquire
18	181167	R.H. SLEEVE	181167 R.H. SLEEVE	-	1	Enquire
19	181169	L.H. SLEEVE	181169 L.H. SLEEVE	-	1	Enquire
20	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	4	Enquire
21	181120	AIR FLOW METER	181120 AIR FLOW METER	-	2	Enquire
22	196715	CLAMP	196715 CLAMP	-	2	Enquire
23	188614	CABLE RETAINER BRACKET	188614 CABLE RETAINER BRACKET	-	2	Enquire
24	160888	CLIP	160888 CLIP	-	2	Enquire
25	331005	THROTTLE BODY	331005 THROTTLE BODY	-	2	Enquire
26	180979	GASKET	180979 GASKET	-	1	Enquire
27	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	-	2	Enquire
28	178430	FASTENER CLIP	178430 FASTENER CLIP	-	2	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
30	12643724	WASHER	12643724 WASHER	-	2	Enquire
31	163774	SCREW	163774 SCREW	-	5	Enquire
32	12604178	Washer	12604178 Washer	-	5	Enquire
33	173599	SCREW	173599 SCREW	-	2	Enquire
34	173600	WASHER	173600 WASHER	-	2	Enquire
35	168275	PNEUMATIC ACTUATOR	168275 PNEUMATIC ACTUATOR	-	1	Enquire
36	168275	PNEUMATIC ACTUATOR	168275 PNEUMATIC ACTUATOR	-	1	Enquire
37	173601	NUT	173601 NUT	-	1	Enquire
38	180692	BALL JOINT	180692 BALL JOINT	-	1	Enquire
39	173598	SEEGER RING	173598 SEEGER RING	-	1	Enquire
40	173595	SUPPORT	173595 SUPPORT	-	1	Enquire
41	168248	RUBBER PIPE	168248 RUBBER PIPE	-	1	Enquire
42	213195	COVER	213195 COVER	-	1	Enquire
43	11568124	SCREW	11568124 SCREW (minimum order quantity = 10)	-	4	Enquire
44	62769800	WASHER	62769800 WASHER not as spare part use part number: 12638178	-	8	Enquire
45	14054048	NUT	14054048 NUT	-	4	Enquire
46	165792	BRACKET FOR SECONDARY AIR PIPE	165792 BRACKET FOR SECONDARY AIR PIPE	-	2	Enquire
47	308092	NITTO	308092 NITTO	-	2	Enquire
48	150302	Oil Pump O-Ring	150302 Oil Pump O-Ring	-	2	Enquire
