Injection - Ignition Device of Ferrari Ferrari 575 Superamerica

View All

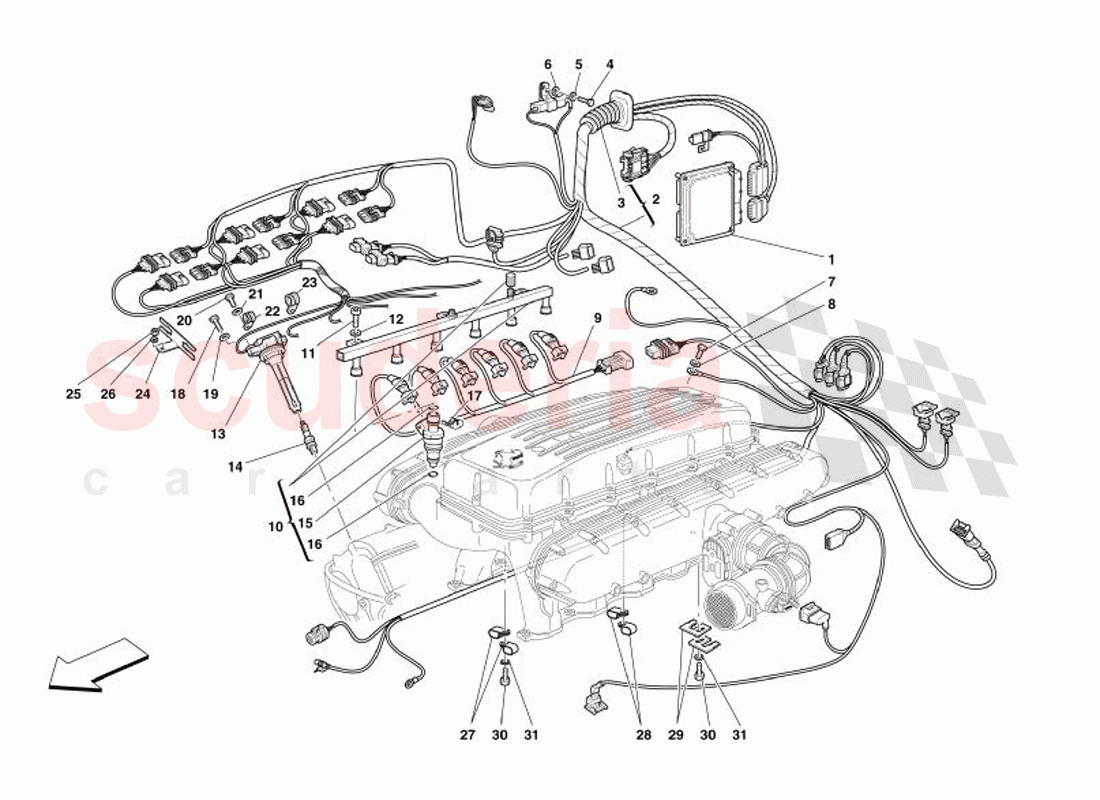

Ferrari 575 Superamerica - Injection - Ignition Device

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	211422	CONTROL UNIT IGNITION	Enquire	To Order
	211423	CONTROL UNIT IGNITION	Enquire	To Order
	211503	CONTROL UNIT IGNITION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	187765	LH SIDE ENGINE CONNECTING CABLES	Enquire	To Order
	189490	LH SIDE ENGINE CONNECTING CABLES	Enquire	To Order
	196496	RH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	183318	RUBBER BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182192	INJECTORS CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180563	PIPE FOR INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

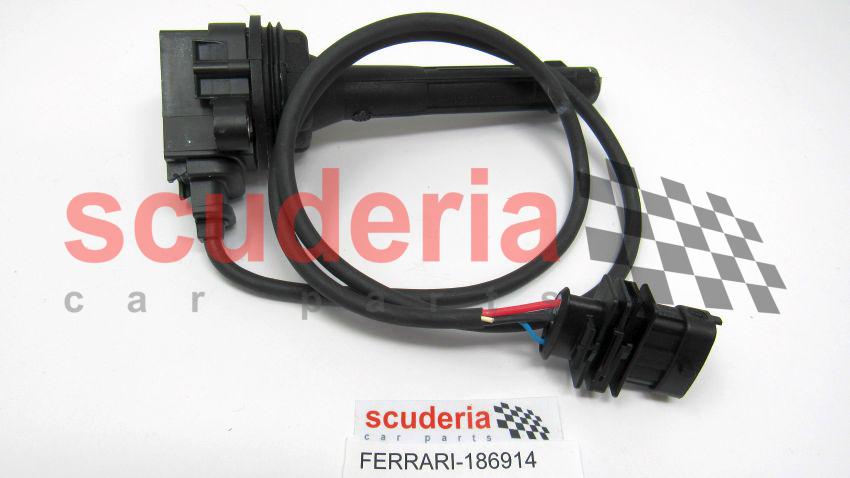

	186914	IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

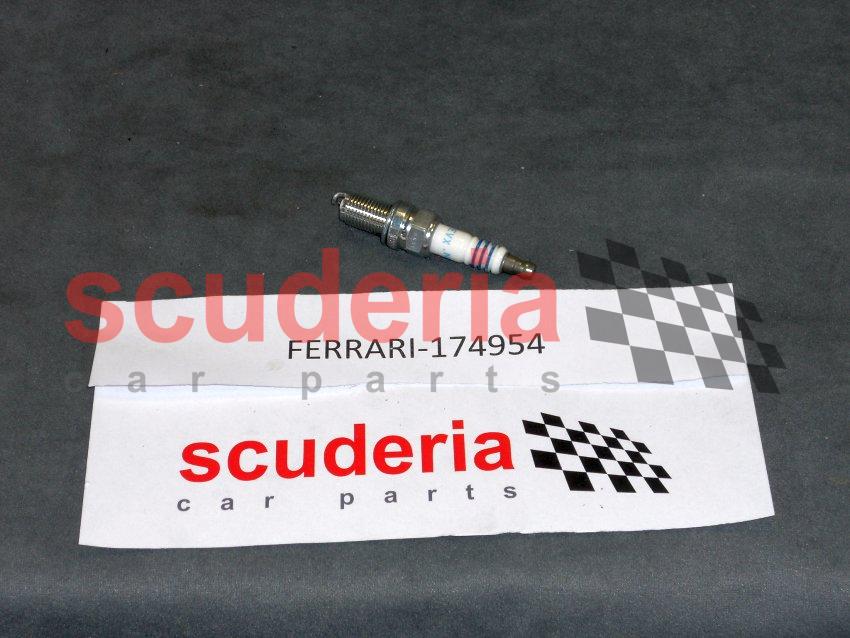

	174954	Spark Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180552	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

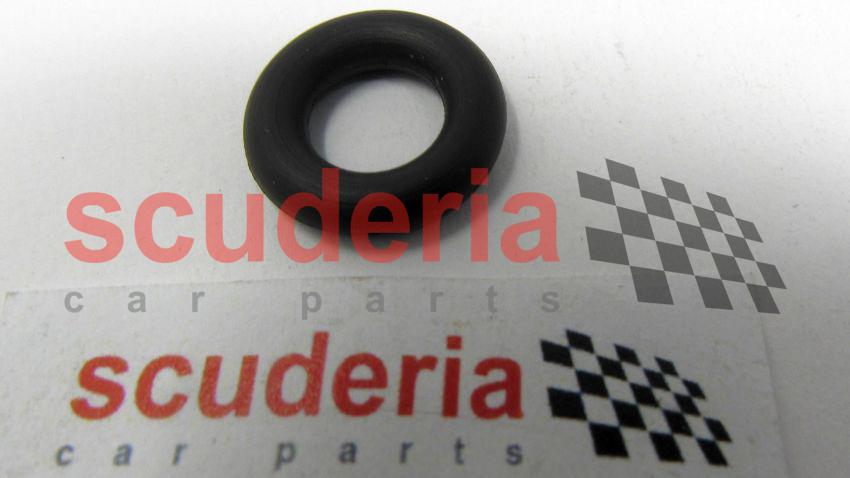

	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	INJECTORS RETENTION CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10979434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188586	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	211422	CONTROL UNIT IGNITION	211422 CONTROL UNIT IGNITION Not for F1 Valid for USA and CDN	-	2	Enquire
1	211423	CONTROL UNIT IGNITION	211423 CONTROL UNIT IGNITION Valid for F1 Valid for USA and CDN	-	2	Enquire
1	211503	CONTROL UNIT IGNITION	211503 CONTROL UNIT IGNITION Not for F1 Not for USA and CDN	-	2	Enquire
1	211504	CONTROL UNIT IGNITION	211504 CONTROL UNIT IGNITION Valid for F1 Not for USA and CDN	-	2	Enquire
2	187765	LH SIDE ENGINE CONNECTING CABLES	187765 LH SIDE ENGINE CONNECTING CABLES Not for GD	-	1	Enquire
2	189490	LH SIDE ENGINE CONNECTING CABLES	189490 LH SIDE ENGINE CONNECTING CABLES Valid for GD	-	1	Enquire
2	196496	RH SIDE ENGINE CONNECTING CABLES	196496 RH SIDE ENGINE CONNECTING CABLES Valid for GD	-	1	Enquire
2	196495	RH SIDE ENGINE CONNECTING CABLES	196495 RH SIDE ENGINE CONNECTING CABLES Not for GD	-	1	Enquire
3	183318	RUBBER BOOT	183318 RUBBER BOOT	-	2	Enquire
4	81591700	SCREW	81591700 SCREW	-	2	Enquire
5	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	2	Enquire
6	12643724	WASHER	12643724 WASHER	-	2	Enquire
7	10977524	SCREW	10977524 SCREW	-	2	Enquire
8	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	2	Enquire
9	182192	INJECTORS CONNECTING CABLES	182192 INJECTORS CONNECTING CABLES	-	2	Enquire
10	180563	PIPE FOR INJECTORS	180563 PIPE FOR INJECTORS	-	2	Enquire
11	86768100	SCREW	86768100 SCREW	-	6	Enquire
12	12601374	WASHER	12601374 WASHER	-	6	Enquire
13	186914	IGNITION COIL	186914 IGNITION COIL	-	12	Enquire
14	174954	Spark Plug	174954 Spark Plug NGK	-	12	Enquire
15	180552	ELECTRO-INJECTOR	180552 ELECTRO-INJECTOR	-	12	Enquire
16	133902	O-Ring	133902 O-Ring	-	24	Enquire
17	144730	INJECTORS RETENTION CLIP	144730 INJECTORS RETENTION CLIP	-	12	Enquire
18	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	24	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	24	Enquire
20	10979434	SCREW	10979434 SCREW	-	10	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	10	Enquire
22	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	4	Enquire
23	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	6	Enquire
24	188586	CONNECTOR FASTENER BRACKET	188586 CONNECTOR FASTENER BRACKET	-	6	Enquire
25	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
26	10519424	WASHER	10519424 WASHER	-	6	Enquire
27	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
28	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
29	155751	CLIP	155751 CLIP	-	2	Enquire
30	10977524	SCREW	10977524 SCREW	-	3	Enquire
31	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	3	Enquire
