Fuel Supply System

Ferrari 575 Superamerica

Find Your Part

Ferrari 575 Superamerica - Fuel Supply System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
184618 LH. DELIVERY PIPE $385.09 To Order
184617 R.H. DELIVERY PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
185718 R.H. AND L.H. DELIVERY RIGID PIPE $93.05 To Order
Photo Part No Description Price (each) Stock
193313 R.H. AND L.H. REAR DELIVERY PIPE $176.49 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.73 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
232649 CLIP $1.07 IN STOCK
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

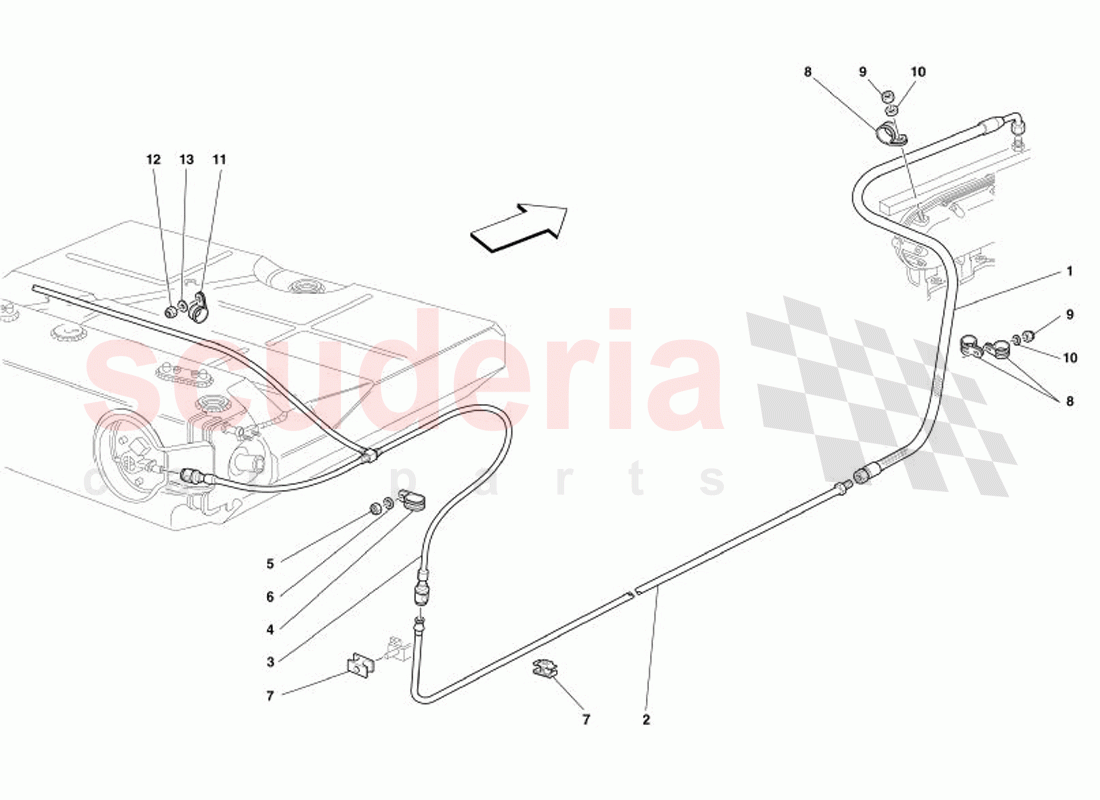

Fuel Supply System of Ferrari Ferrari 575 Superamerica Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 184618
LH. DELIVERY PIPE 		$385.09 1
1 184617
R.H. DELIVERY PIPE 		$369.04 1
2 185718
R.H. AND L.H. DELIVERY RIGID PIPE 		$93.05 2
3 193313
R.H. AND L.H. REAR DELIVERY PIPE 		$176.49 1
4 10441790
BRACKET WITH SHEATH 		$0.73 (78.8% off) 2
5 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
6 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
7 232649
CLIP
IN STOCK 		$1.07 10
8 10441590
BRACKET WITH SHEATH
IN STOCK 		$0.55 6
9 14059290
FLANGED NUT M6
IN STOCK 		$1.43 6
10 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
11 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.57 3
12 14059290
FLANGED NUT M6
IN STOCK 		$1.43 3
13 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
