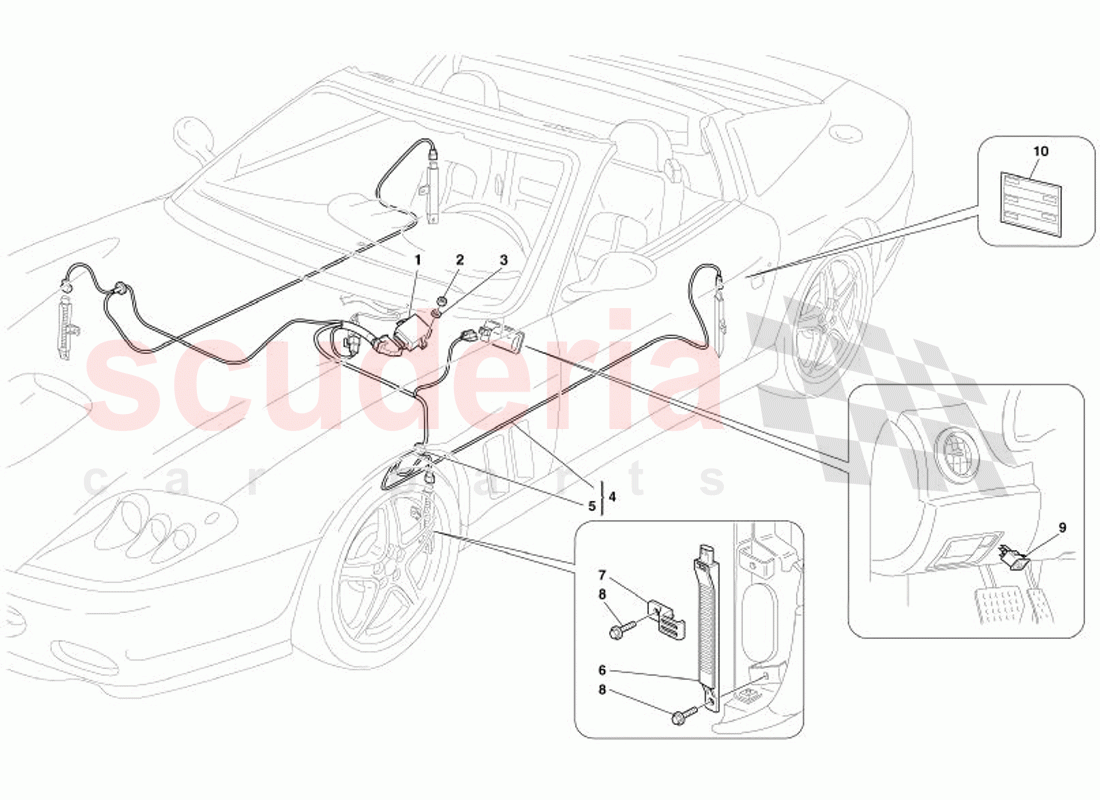

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	211762	TYRE PRESSURE MONITORING SYSTEM ECU	Enquire	To Order
	211763	TYRE PRESSURE MONITORING SYSTEM ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200726	TYRES PRESSURE CONTROL CABLES	Enquire	To Order
	200727	TYRES PRESSURE CONTROL CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185188	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185184	TYRE PRESSURE MONITORING SYSTEM ANTENNA	Enquire	To Order
	195588	TYRE PRESSURE MONITORING SYSTEM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187504	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195271	DUMMY SWITCH	Enquire	To Order
	208848	TYRE PRESSURE CALIBRATION BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194621	TYRE PRESSURE MONITORING SYSTEM LABEL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	211762	TYRE PRESSURE MONITORING SYSTEM ECU	211762 TYRE PRESSURE MONITORING SYSTEM ECU Not for USA and CDN	-	1	Enquire
1	211763	TYRE PRESSURE MONITORING SYSTEM ECU	211763 TYRE PRESSURE MONITORING SYSTEM ECU Valid for USA and CDN	-	1	Enquire
2	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
3	12637824	WASHER	12637824 WASHER	-	2	Enquire
4	200726	TYRES PRESSURE CONTROL CABLES	200726 TYRES PRESSURE CONTROL CABLES Valid for GD	-	1	Enquire
4	200727	TYRES PRESSURE CONTROL CABLES	200727 TYRES PRESSURE CONTROL CABLES Not for GD	-	1	Enquire
5	185188	CABLE GROMMET	185188 CABLE GROMMET	-	2	Enquire
6	185184	TYRE PRESSURE MONITORING SYSTEM ANTENNA	185184 TYRE PRESSURE MONITORING SYSTEM ANTENNA Not for USA and CDN	-	4	Enquire
6	195588	TYRE PRESSURE MONITORING SYSTEM ANTENNA	195588 TYRE PRESSURE MONITORING SYSTEM ANTENNA Valid for USA and CDN	-	4	Enquire
7	187504	CLIP	187504 CLIP	-	4	Enquire
8	86574700	SCREW	86574700 SCREW	-	8	Enquire
9	195271	DUMMY SWITCH	195271 DUMMY SWITCH Valid for J	-	1	Enquire
9	208848	TYRE PRESSURE CALIBRATION BUTTON	208848 TYRE PRESSURE CALIBRATION BUTTON	-	1	Enquire
10	194621	TYRE PRESSURE MONITORING SYSTEM LABEL	194621 TYRE PRESSURE MONITORING SYSTEM LABEL	-	1	Enquire
