Name: Electronic Accelerator Pedal
Rating: 5.0 (1 reviews)

View All

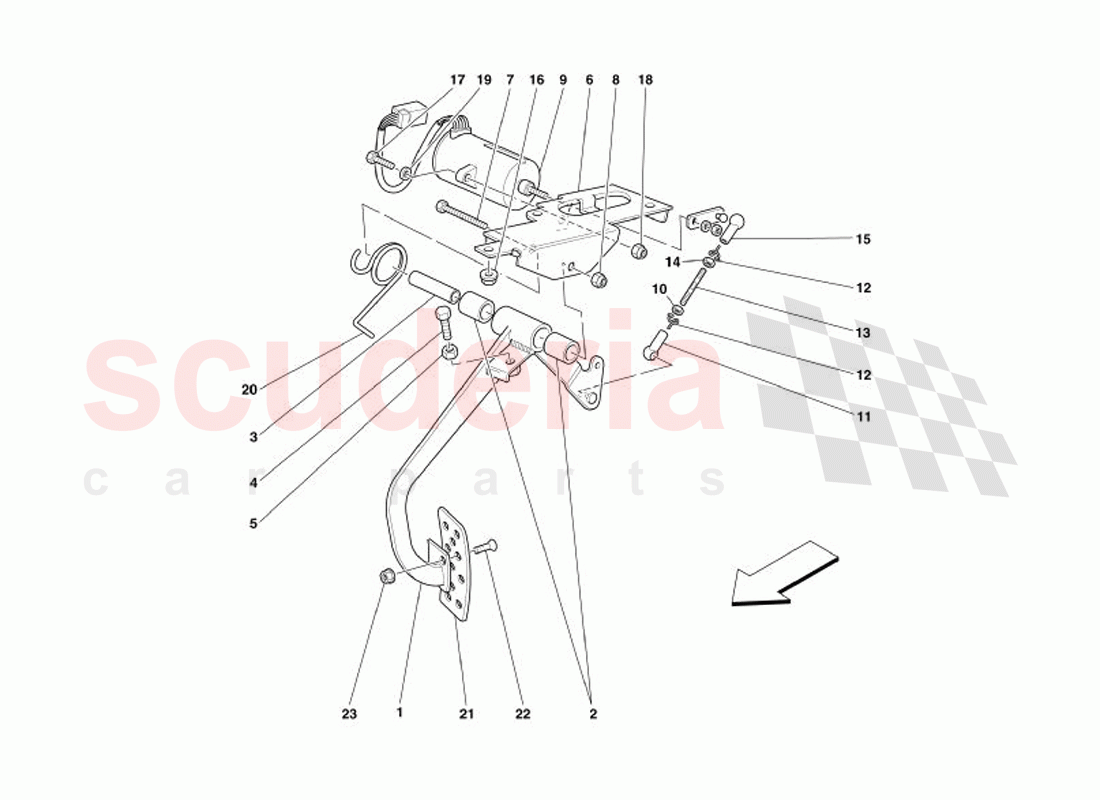

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	202747	ACCELERATOR PEDAL	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	101677	ROLLER BEARING	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	138219	CARRIER BUSH	$119.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	197108	ACCELERATOR SUPPORT	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	10903621	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	170038	Accelerator Potentiometer	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	173999	BALL-JOINT HEAD	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	174001	SPRING CLIP	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	182987	THREADED TIE ROD	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	105586	LEFT NUT	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	174000	BALL-JOINT HEAD	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	175351	PEDAL RETURN SPRING	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	164037	ACCELERATOR PEDAL DRILLED PLATE	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	$0.05	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	202747	ACCELERATOR PEDAL	202747 ACCELERATOR PEDAL	$286.67	1
2	101677	ROLLER BEARING	101677 ROLLER BEARING	$9.51	2
3	138219	CARRIER BUSH	138219 CARRIER BUSH	$119.53	1
4	16043634	SCREW	16043634 SCREW	$0.23	1
5	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
6	197108	ACCELERATOR SUPPORT	197108 ACCELERATOR SUPPORT	$77.39	1
7	10903621	SCREW	10903621 SCREW	$0.19	1
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
9	170038	Accelerator Potentiometer	170038 Accelerator Potentiometer	$465.32 MSRP: ~~585.59~~ (20.5% off)	1
10	15896470	NUT	15896470 NUT (minimum order quantity = 20)	$7.33	1
11	173999	BALL-JOINT HEAD	173999 BALL-JOINT HEAD	$8.33 MSRP: ~~10.63~~ (21.6% off)	1
12	174001	SPRING CLIP	174001 SPRING CLIP	$0.75 MSRP: ~~1.00~~ (25% off)	2
13	182987	THREADED TIE ROD	182987 THREADED TIE ROD	$6.08	1
14	105586	LEFT NUT	105586 LEFT NUT	$3.13	1
15	174000	BALL-JOINT HEAD	174000 BALL-JOINT HEAD	$8.33 MSRP: ~~26.06~~ (68% off)	1
16	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	3
17	10902424	SCREW	10902424 SCREW	$0.15 MSRP: ~~0.70~~ (78.6% off)	2
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
19	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
20	175351	PEDAL RETURN SPRING	175351 PEDAL RETURN SPRING	$4.80	1
21	164037	ACCELERATOR PEDAL DRILLED PLATE	164037 ACCELERATOR PEDAL DRILLED PLATE	$81.82	1
22	14440734	SCREW	14440734 SCREW	$6.26	2
23	14084111	NUT	14084111 NUT	$0.05	2
