Find Your Part

RH Cylinder Head of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - RH Cylinder Head

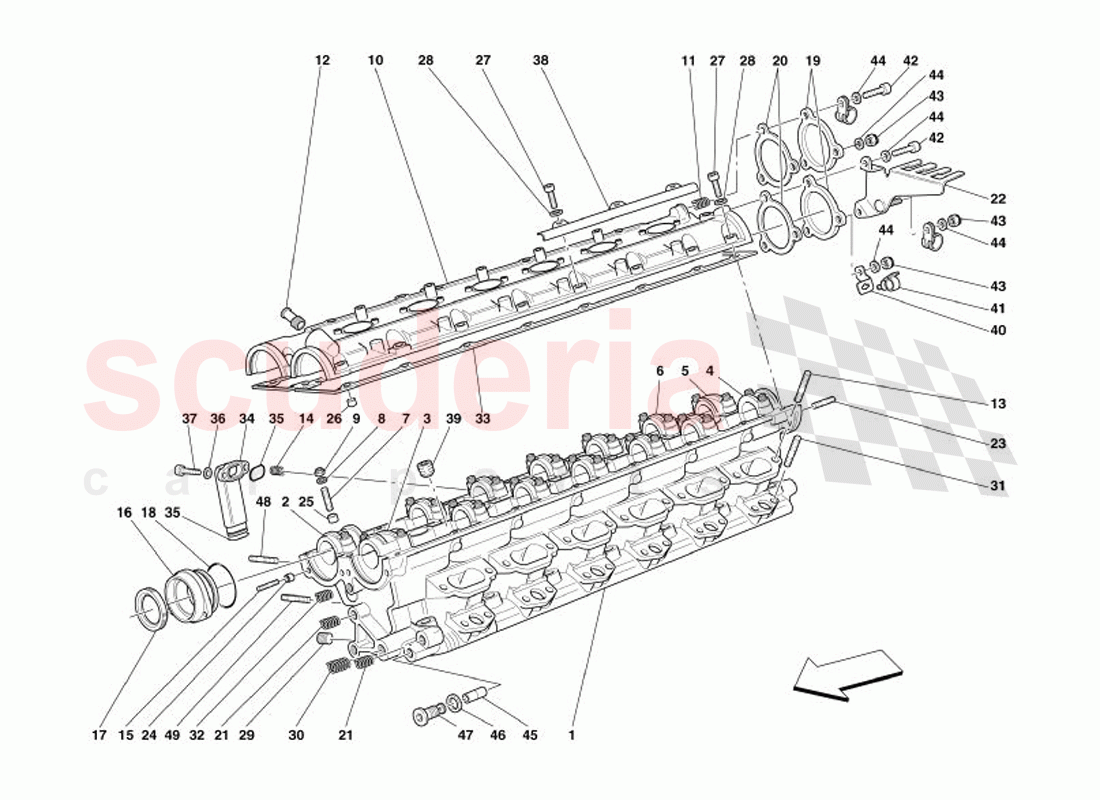

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	203507	RH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154203	RH FRONT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154205	LH FRONT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154204	LH REAR CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154206	RH REAR CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154207	INTERMEDIATE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198890	RH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154525	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13539424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182409	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163987	Camshaft Oil Seal	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	158349	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182126	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182127	COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185306	L.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182434	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156834	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13524670	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182931	Cam Cover Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154647	OIL DRAIN DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142599	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182703	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178555	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164565	FIXING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156862	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163714	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517024	STUD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	221081	COMPLETE RH CYLINDERS HEAD	221081 COMPLETE RH CYLINDERS HEAD	-	1	Enquire
1	203507	RH HEAD	203507 RH HEAD With complete cylinder head	-	1	Enquire
2	154203	RH FRONT CAP	154203 RH FRONT CAP With complete cylinder head	-	1	Enquire
3	154205	LH FRONT CAP	154205 LH FRONT CAP With complete cylinder head	-	1	Enquire
4	154204	LH REAR CAP	154204 LH REAR CAP With complete cylinder head	-	1	Enquire
5	154206	RH REAR CAP	154206 RH REAR CAP With complete cylinder head	-	1	Enquire
6	154207	INTERMEDIATE CAP	154207 INTERMEDIATE CAP With complete cylinder head	-	10	Enquire
7	13541424	STUD BOLT	13541424 STUD BOLT	-	28	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	28	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	28	Enquire
10	198890	RH CYLINDER HEAD COVER	198890 RH CYLINDER HEAD COVER With complete cylinder head	-	1	Enquire
11	13525570	THREADED INSERT	13525570 THREADED INSERT	-	1	Enquire
12	154525	THREADED UNION	154525 THREADED UNION	-	1	Enquire
13	13541124	STUD BOLT	13541124 STUD BOLT	-	12	Enquire
14	13525170	THREADED INSERT	13525170 THREADED INSERT	-	2	Enquire
15	13539424	STUD BOLT	13539424 STUD BOLT	-	4	Enquire
16	182409	FRONT COVER	182409 FRONT COVER	-	2	Enquire
17	163987	Camshaft Oil Seal ARRIVING SOON	163987 Camshaft Oil Seal ARRIVING SOON	-	2	Enquire
18	158349	O-Ring	158349 O-Ring	-	2	Enquire
19	182126	REAR COVER	182126 REAR COVER	-	2	Enquire
20	182127	COVER SEAL	182127 COVER SEAL	-	2	Enquire
21	13525770	THREADED INSERT	13525770 THREADED INSERT	-	6	Enquire
22	185306	L.H. BRACKET	185306 L.H. BRACKET	-	1	Enquire
23	13541124	STUD BOLT	13541124 STUD BOLT	-	4	Enquire
24	182434	CENTRING DOWEL	182434 CENTRING DOWEL	-	4	Enquire
25	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	28	Enquire
26	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
27	156834	Screw	156834 Screw	-	18	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	18	Enquire
29	14326101	THREADED PLUG	14326101 THREADED PLUG	-	1	Enquire
30	13524670	THREADED INSERT	13524670 THREADED INSERT	-	2	Enquire
31	11500224	STUD BOLT	11500224 STUD BOLT	-	12	Enquire
32	13525470	THREADED INSERT	13525470 THREADED INSERT	-	2	Enquire
33	182931	Cam Cover Gasket	182931 Cam Cover Gasket	-	1	Enquire
34	154647	OIL DRAIN DUCT	154647 OIL DRAIN DUCT	-	1	Enquire
35	142599	O-RING	142599 O-RING	-	2	Enquire
36	12604178	Washer	12604178 Washer	-	2	Enquire
37	14304124	SCREW	14304124 SCREW	-	2	Enquire
38	182703	CABLE RETAINER BRACKET	182703 CABLE RETAINER BRACKET	-	1	Enquire
39	127635	THREADED PLUG	127635 THREADED PLUG	-	4	Enquire
40	178555	R.H. BRACKET	178555 R.H. BRACKET	-	1	Enquire
41	164565	FIXING CLIP	164565 FIXING CLIP	-	1	Enquire
42	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
45	156862	CHECK VALVE	156862 CHECK VALVE	-	1	Enquire
46	10298460	GASKET	10298460 GASKET	-	1	Enquire
47	163714	CAP	163714 CAP	-	1	Enquire
48	13516824	STUD BOLT	13516824 STUD BOLT	-	8	Enquire
49	13517024	STUD BOLT	13517024 STUD BOLT	-	4	Enquire
